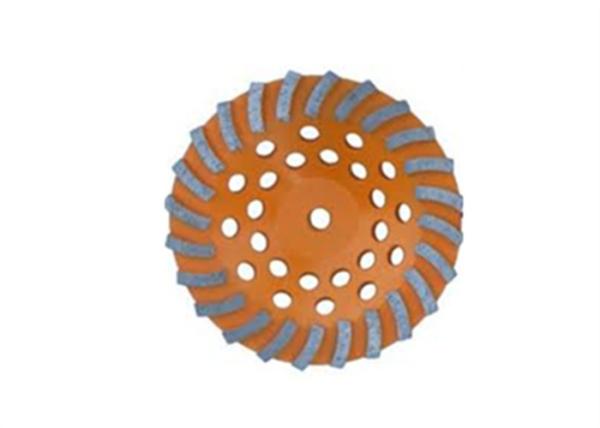

Brown Turbo Diamond Cup Grinding Disc 4.5 Inch Concrete Cup Wheel
Brown Turbo Diamond Cup Grinding Disc 4.5 Inch Concrete Cup Wheel
Specifications
Brand Name :
XMF
Model Number :
105MM-180MM
Certification :
MPA
Place of Origin :
CHINA
MOQ :
500PCS
Price :
dollars 1.5-30 1PCS
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
20000 PCS 30 days
Packaging Details :
Color Box,White Box,Double Blister
Color :
Black,blue,green,red,brown，grey，multiple color
Material :
Diamond Metal 65Mn
Size :
4'' 4.5'' 5'' 6'' 7''
Product name :
Turbo Diamond Cup Wheel
Description

Brown Grey 4.5 Inch Diamond Cup Wheel Turbo Diamond Cup Wheel

The diamond grinding wheel is one of the diamond tools, which is mainly used for the surface grinding of various kinds of refractory materials, the products adopt the specially designed conical installation hole structure, easy to assemble and disassemble, and have the advantages of good processing flatness, high grinding efficiency and long life, which can be applied to all domestic and imported grinding equipment.

The workpiece grinding precision is high, the surface quality is good: using diamond grinding wheel to grind hard alloy cutting tool, the roughness of the surface and blade is much lower than that of silicon carbide grinding wheel, the arc radius of the edge is small, the edge is very sharp, the durability of the edge can be increased 1 ~3 times.In general, the roughness Ra value of the workpiece processed by diamond grinding wheel can reach 0.1~ 0.025 microns, which is 1~2 steps higher than that of ordinary grinding wheel.

Smooth grinding and finishing of construction material surface

Application: Granite, marble, concrete products, cured concrete, masonry material and all types of nutural stone.

Machinery: Angle grinder

Different arbor sizes and segment specifications are available upon request

Item No.

 Diameter Bore Segment Segment
inch mm mm inch W(mm) H(mm) NO.
WB105SR 4 '' 105 22.23 7/8 '' 5 8 10
WB115SR 4.5 '' 115 22.23 7/8 '' 5 8 12
WB125SR 5 '' 125 22.23 7/8 '' 5 8 14
WB150SR 6 '' 150 22.23 7/8 '' 5 8 18
WB180SR 7 '' 180 22.23 7/8 '' 5 8 22

Brown Turbo Diamond Cup Grinding Disc 4.5 Inch Concrete Cup Wheel
