35m /S CNC Stone Carving Machine 18kw For Granite
35m /S CNC Stone Carving Machine 18kw For Granite
35m /S CNC Stone Carving Machine 18kw For Granite
35m /S CNC Stone Carving Machine 18kw For Granite
35m /S CNC Stone Carving Machine 18kw For Granite
35m /S CNC Stone Carving Machine 18kw For Granite
35m /S CNC Stone Carving Machine 18kw For Granite
35m /S CNC Stone Carving Machine 18kw For Granite
Specifications
Brand Name :
Unique
Model Number :
CNC-3500
Certification :
API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin :
China
MOQ :
1set
Price :
US $43,000-48,000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Year
Packaging Details :
9800*7500*4500mm
Product name :
CNC Stone Carving Machine
Wire Speed :
0 -35m /S
Gross Weight :
10500kg
Dimension of Worktable :
2500*2000mm
Gross Motor :
18kw
Main Motor :
15kw
Max Processing Size :
3500*3500*2100mm
Description

Multi-Function CNC Wire Stone Cutting Machine for Granite

Basic Info.

Model NO.
CNC-3500
Control
CNC
Certification
API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
Max Processing Size
3500*3500*2100mm
Dimension of Worktable
2500*2000mm
Main Motor
15kw
Gross Motor
18kw
Outline Dimension
9800*7500*4500mm
Gross Weight
10500kg
Water Consumption
6m3/H
Wire Speed
0 -35m /S
Name
Stone Cutting Machine ( Block Trimming Machine )
Production Ability
50 Sets / Month
Transport Package
Plastic Package, Suitable for Sea Transportation
Specification
6500*6300*3800mm
Trademark
Xianda
Origin
Jinjiang, Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Product Description

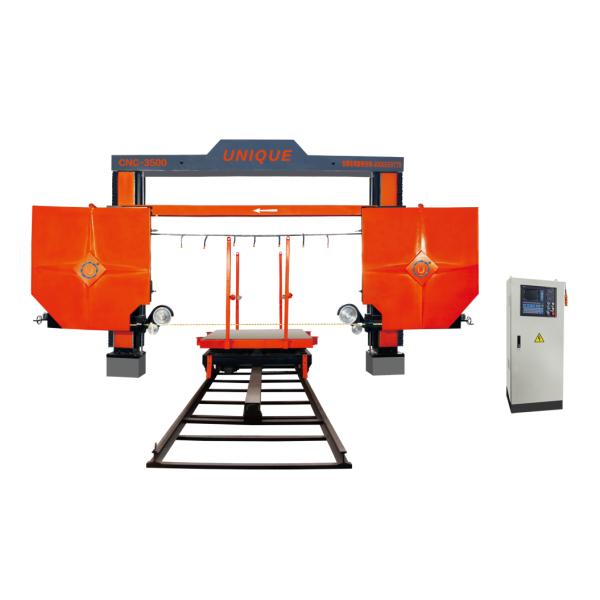

CNC Diamond Wire Saw Stone Cutting Machine for block squaring
35m /S CNC Stone Carving Machine 18kw For Granite

35m /S CNC Stone Carving Machine 18kw For Granite



Product Description

China Xianda marble granite stone block diamond wire saw edge cutting machine adopts Four-Axis linkage with stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.The special design for 360° worktable will fullfil your need, somemore this machine is able to compatitable with CNC system.Once changed, it will have multi-function with can process the column slab,pillar,roman column,numeral, letter, Chinese characters and other shapes for the stone.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Keywords: diamond wire saw machine, block cutting machine, stone trimming machine
Technical Parameter
Parameter
Unit
CNC-3500
Max processing size
mm
3500*3500*2100
Dimension of worktable
mm
2500*2000
Main motor
kw
11
Gross motor
kw
18
Outline dimension
mm
6800*8900*4700
Gross weight
kg
8000
Water consumption
m³/h
4

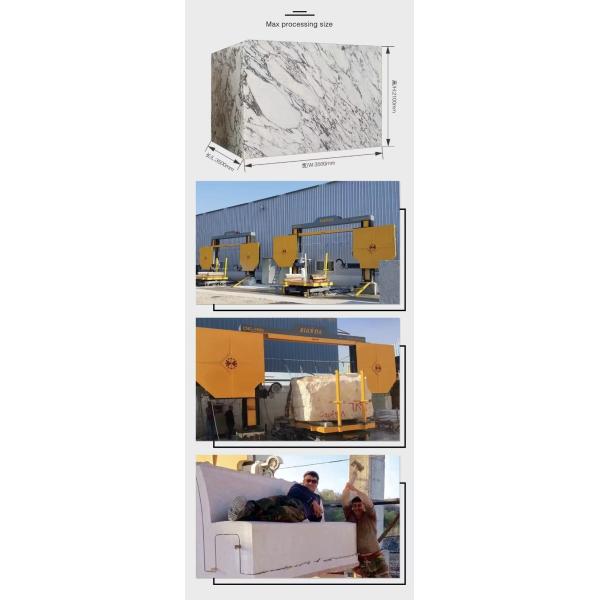

Function Display



Xianda Machinery

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition


Our Service

We are a vigorous and creative team with great passion, we are always trying to provide better service for you, if you meet any problems about stone cutting machine, please contact us at any time suits you.

Other stone cutting machines we produce: diamond wire saw machine, bridge cutting machine, bridge saw and a series of stone machine for special shape processing.
For more information, you may refer our home page: http://chinaxianda.en.made-in-china.com/

FAQ

1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.

We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.

Our machine will be strictly inspected.

We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
