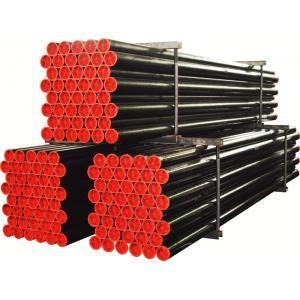

Custom straightness Wireline Steel Drill Rod Coring Rods for drilling rig

Specifications

1. high quality alloy tube
2. thru-wall heat treated tube body
3. consistent concentricity, straightness
4. tapered threads

.

Description:

Our wireline drill rods are all manufactured by CNC machines under DCDMA standard. They're made of

high quality alloy steel with heat-treated. We also can produce various sizes of casing tubes.
Drill pipes will be manufactured from seamless steel tube by cold drawn.
The material is XJY850 / 30CrMnSiA which is one of the best material for geological drilling in China.

Coring rods are crafted from quality heat treated materials ensuring superior wear resistance, strength,

and toughness in the most demanding applications.

Rods and casing are manufactured under stringent industry standards, and are field tested under a variety

of conditions.

All rods are designed to be compatible with other rods manufactured to DCDMA standards.

Features:

TUBING

• High quality alloy steel tubing

• Consistent concentricity, straightness and heat treatment

• All tubing available in DCDMA sizes

THREAD

• Tapered, course threads (3 threads per inch) provides easy make and break

• Load efficiency of 30% provides sufficient strength for average applications

THRU-WALL HEAT TREATMENT

• Provides 140% material strength

• Heat treated box threads significantly increases thread wear life

Size Available:

"Q" Series: BQ, NQ, HQ, and PQ.

"WJ" Design: AWJ, BWJ, NWJ, KWJ, HWJ

"W" Design: RW, EW, AW, BW, NW, HW

Metric Series: 33, 42, 50

We also can produce various sizes of casing tubes

Size Available:

"W" Design: RW,EW,AW,BW,NW,HW,PW,SW,UW,ZW/HWT,PWT

Metric Series: 46, 56,66,76,86,101,116,131,146

"X" Design: RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX

All Chinese sizes.
