Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
Specifications
Brand Name :
Hehui
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
15-20days
Packaging Details :
100pcs/carton
Machine :
HTC
Bond :
Metal
Work part :
Diamond
Technology :
Silver welding
Oem :
Yes
Material :
Diamond and metal
Description

Metal Bond Concrete Grinding Plates for HTC

Application:

Installed on HTC systems and used for the general purpose of concrete floor or terrazzo surface grinding.

The metal bond diamonds are offered with one and two segments. Choosing between one or two segments allows the operator to control the grinding speed. Two-segment tools are designed for heavier machines, inches. Single-segment tools are designed for lighter machines, or where aggressive stock removal is required. We recommend using single-segment tools for the first step even with heavier machines for faster opening of the concrete.

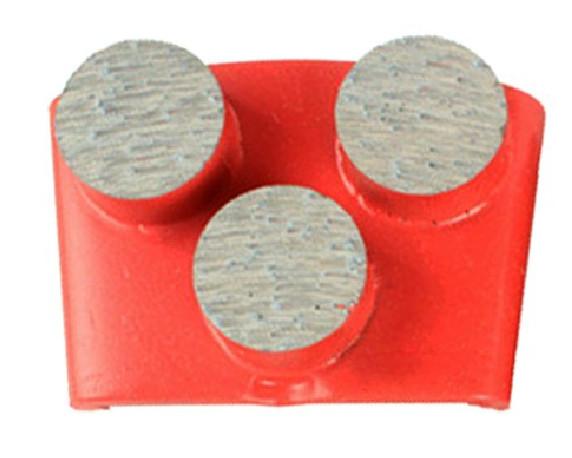

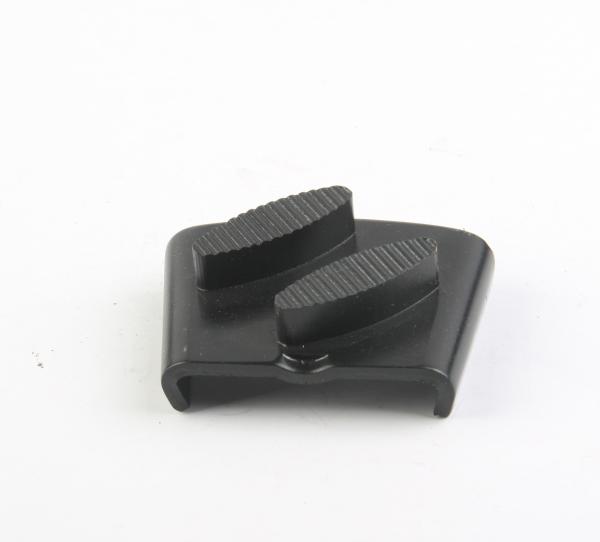

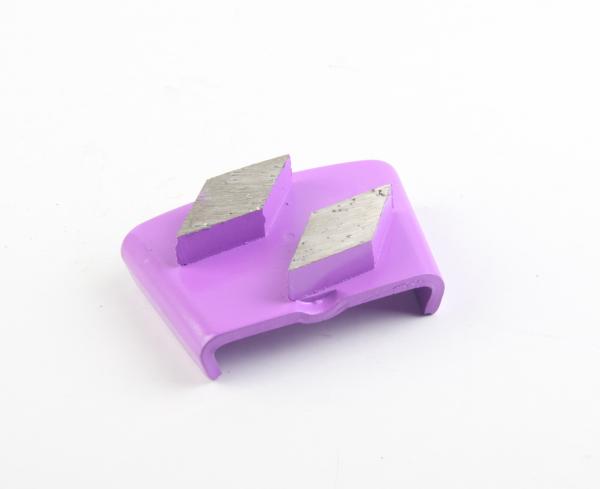

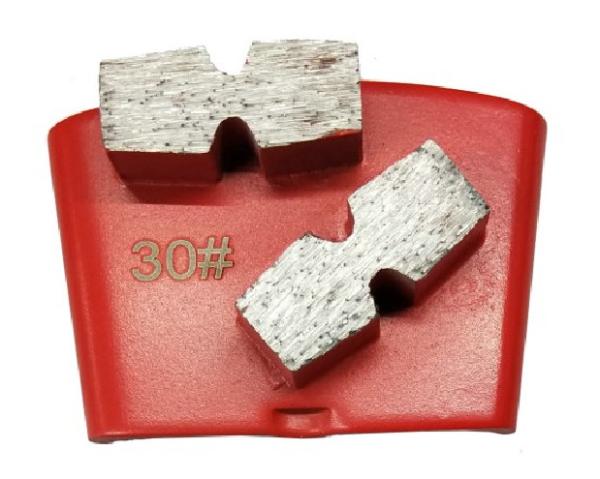

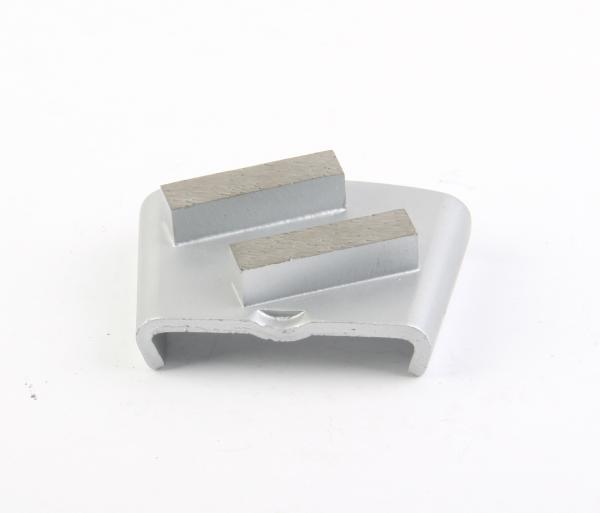

Different Shapes we can supply:

Other shapes could be available upon request.

MBT-HTC-001 Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
MBT-HTC--002 Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
MBT-HTC--003 Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
MBT-HTC--004 Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems
MBT-HTC--005 Silver Welding Metal Bonded Concrete Grinding Plate For HTC Systems

Grit Available:

16#, 18/20#, 20/25#,25/30#, 30/40#,50/60#,60/80#,80/100#,120/150#

Bond Type:

extra soft(XS), soft(S), Medium(M), hard(H), extra hard(XH)

We recommend you to choose right bond based on the PSI or MOH’s of concrete:

BOND XS S M H XH
MOH’S 6-9 4-6 3-5 2-3 1-2
PSI 6-9,000 4-6,000 3-5,000 1.5-3,500 1-2,000
MPA C50-C65 C35-C55 C20-C40 C15-C25 C10-C20
CONCRETE HARDNESS EH H M S XS

But it still depends on your true situation for bond choosing. We’d like to offer you a better solution if detailed information is available.
