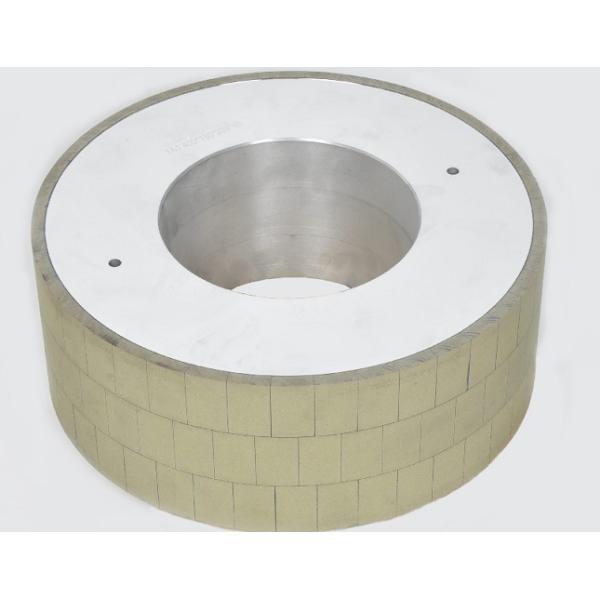

50mm-400mm Diamond Grinding Tools Wheels Vitrified Bonded
50mm-400mm Diamond Grinding Tools Wheels Vitrified Bonded
Specifications
Brand Name :
Hehui
Model Number :
CBGW004
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
15-20days
Packaging Details :
10pcs/carton
Name :
Diamond Grinding Tools
Application :
For PCD & Insert Grinding
Oem :
can OEM
Diameter :
50mm-400mm
Bond :
Vitrified Bonded
Work part :
Diamond
Description

50mm-400mm Diamond Grinding Tools Wheels Vitrified Bonded

Application:

Due to high compressive strength,high hardness,good wear resistance and long service life,diamond abrasive grinding tools is widely used to grind hard crisp material,such as cemented carbide, alumina porcelain,optical glass,precious stone,agate,semiconductor material,hard stone,etc. Take grinding ¢16/¢19 PDC for example, the comparative data are as follows:

  • service life of vitrified diamond grinding wheel is 2.5-3 times longer than that of resin bond diamond grinding wheel;
  • the grinding efficiency of vitrified diamond grinding wheel is 1.5-2 times than that of resin bond diamond grinding wheel;
  • Vitrified diamond grinding wheel is usually with high grinding precision, the angle of taper is generally 0.1mm after processing by our vitrified diamond grinding wheel.
  • There is little pollution by using our vitrified diamond grinding wheel.
  • You do not have to dress the vitrified diamond grinding wheel as that of resin bond diamond during use process, thus worker’s efficiency could be greatly improved.
  • By using our vitrified bond diamond grinding wheel it will be easy to double the working efficiency without increasing any working labors, equipment or plants.

Size Available:

Shape Code D(mm) T(mm) H(mm) E(mm) W(mm) X(mm)

6A2

 50 20 6 5,10 5
70 20,32 10 5,10 5,10
100 35 10 5,10,12 5,10
125 35 10 5,10,15,20 5,10
150 32 12 5,7,10,12.5,15,20,25 5,10
150 40 12 5,7,10,12.5,15,20,25 5,10
175 20 12 5,6,10,15,20,25 5,10
200 20 12 10,15,20,25 5,10

Shape Code D(mm) H(mm) T(mm) X(mm)

Centerless Grinding

 300 40,50 10,13
350 40,50 10,13
400 40,50 10,13

Other size could be available upon request.
