Sunnen honing mandrel diamond Honing Tool with retainer and guide shoes CS Mandrels K3, K4, K5, K6, K8

Honing: An abrasive machining process primarily used for stock removal, precision sizing, and surface finishing of internal and external surfaces. It is characterized by the use of a self-sharpening abrasive stone, a relatively large area of contact with the work, and relatively low cutting speed.

1. Introduce of honing rod

The back end is connected to the connector, and the front groove is the cutting body of honing stone

We are a manufacturer and sales of Diamond and CBN Honing Stones, Grinding Wheels in China. Since 1997, we focus mainly on supplying high precision, high performance superabrasives products to automotive, aerospace, military, hydraulics, bearings, electronics, tools and glass industries.

2.Feature of different material manderls

• CS Mandrels: steel mandrels with soft shoes, for honing most materials.

• CH mandrels: Steel mandrel with hardened shoes, for production honing or hard, rough parts, carbide, ceramics, glass.

• CB/AB Bronze mandrel: Bronze mandrel for producing very fine finishes and for honing exotic metals.

• Diamond plated super mandrels, designed to provide a long wearing guide shoe to increase mandrel life.

3.Series of diamond honing mandrel:

• K3, K4, K5, K6, K8, K10, K12, K16, K20
• L6, L8, L10, L12, L16, L20
• BL3, BL4, BL5, BL6, BL8, BL10, BL12, BL16, BL20

Series of Honing Stone:

• K series diamond honing stone:K3, K4, K5, K6, K8, K10, K12, K16, K20
• L series diamond honing stone:L3, L4, L5, L6, L8, L10, L12, L16, L20

4. Our line of business

• Diamond and CBN Honing Stones, Honing Tools
• Honing tools for cylinder liner & blocks honing;
• Fuel injection parts honing;
• Connecting rod honing;
• Gears honing;
• Engines, hydraulic parts honing.

5.Advantages:

• Multiple-stone honing tool with integrated carbide guiding and sizing shoes.
• High Cutting Efficiency;
• High Geometric Accuracy;
• Fine Surface Finish(Roughness).

6.Our detailed mandrel pictures:

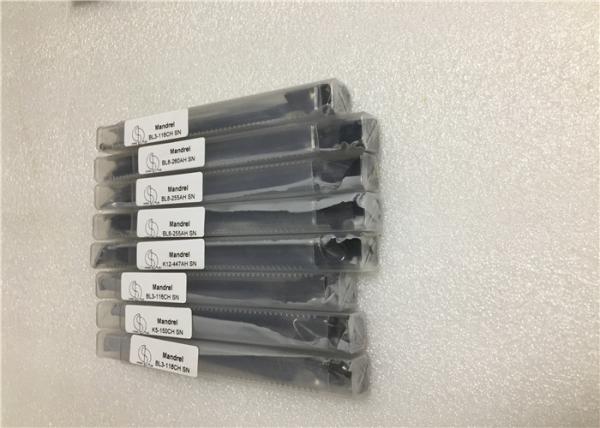

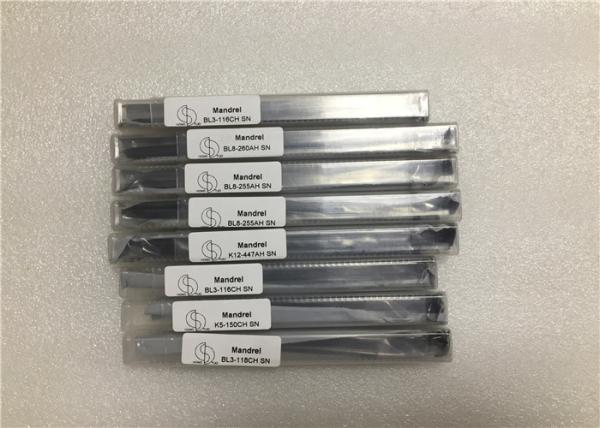

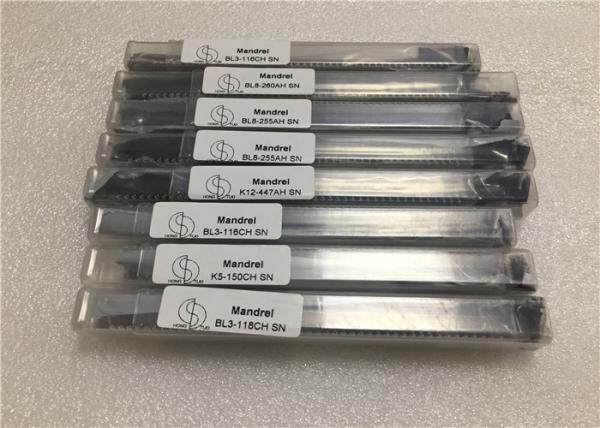

7.Plastic box used for packing mandrel

8.Our warehouse pictures

9. Our factory

If you would like samples of our products for trials and inspection, please call or email us. I know you will be pleased with our response.

HONING CONDITION SOLUTIONS

Stone not cutting, glazed

• Shapen alumina & silicon carbide stone with MAN-700(small grit size) diamond dressers; use LBN-700 dressing stick on all other stones.
• Increase cutting pressure.
• Increase stroking speed.
• Use softer stone ( one with lower hardness number)
• Increase lubricity of honing fluid.
