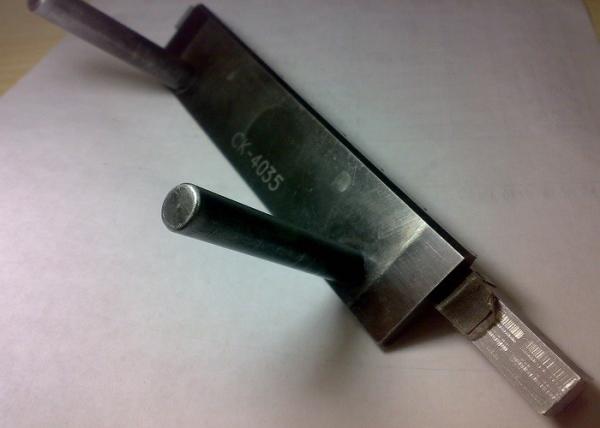

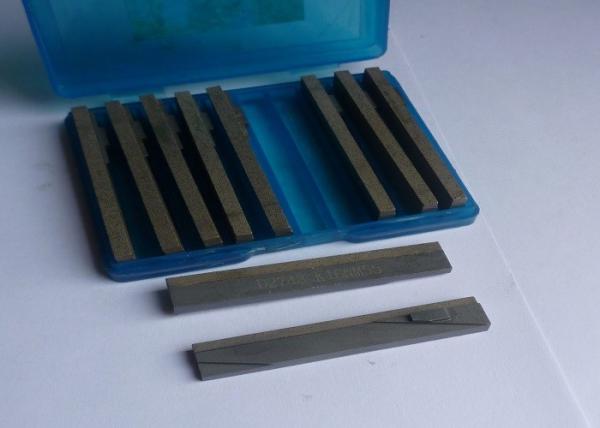

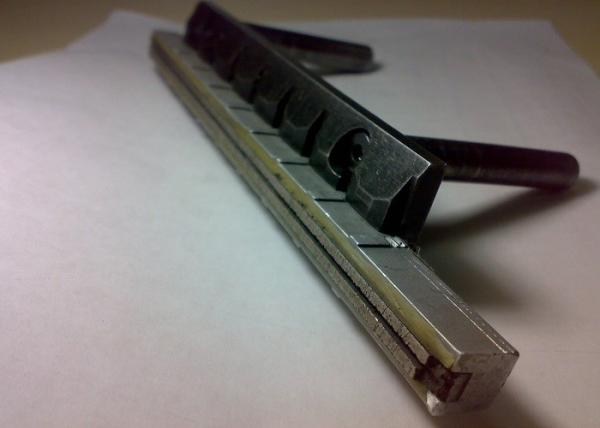

CK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom Made
CK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom Made
CK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom Made
CK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom Made
CK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom Made
CK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom Made
Specifications
Brand Name :
HT
Model Number :
HT-DHT
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
2
Price :
Price negotiated
Payment Terms :
T/C,T/T
Supply Ability :
1000/pcs per month
Delivery Time :
2-3weeks
Packaging Details :
Carton Box
Using :
Cylinder Liner Industry
Grit Size :
Customer Design
Abrasive :
CBN and Diamond
Size :
According Client Request
Specification :
K16NM55/DM55
Other :
According to client request
Name :
Diamond and CBN Honing stone
Cross-hatch :
Yes
Description

CK/CV Honing Machine Stone , SUNNEN K Series Diamond Honing Stone

Product classification:

A. The horizontal honing rod can be divided into four forms according to the material of the workpiece and the hardness of the workpiece:

a), ordinary rod: This kind of rod is mainly used for honing heat-treated steel workpieces, ceramic products, powder metallurgy workpieces with hardness above HRC50.

b), +S rod: This rod is mainly used for honing ordinary steel workpieces (including stainless steel) with hardness below HRC35.

c), +J rod: This rod is mainly used for honing aluminum workpieces and copper workpieces.

d), +Y rod: the honing rod with the alloy guiding lining. It is mainly used for honing materials such as ductile iron, gray iron, stainless steel, etc. It can also be used for honing of heat-treated steel parts with hardness above HRC35.

B. The horizontal honing head is mainly divided into: horizontal ordinary honing head, alloy honing head, weight reducing honing head.

The super abrasive stone, also known as a honing stick, described here is specifically designed for Sunnen honing machines. The honing equipment has different series of honing stones that can finish different types of bores with different bore diameters. For example, the Y series is mainly used to bore holes with a keyway.

If our diamond or CBN honing stones can’t be matched with your Sunnen honing equipment in size and bore diameters, please let us know. As a professional honing tool supplier, we can customize suitable products for you. In addition, we can offer honing stones and bore honing tools for Sunnen machines and other brand name honing equipment. For specific information, please check out “other honing stone.”

Hardness and Particle Size of SN Series Honing Stones

Abrasive specification code Particle size code Hardness code
DM,DR,DV —Diamond
NM,NR,NV---CBN/Borazon		 1 – 70
2 – 80
3 – 100
4 – 150
5 – 220
6 – 280
7 – 320
8 – 400
9 – 500
0 – 600
90-- 900
00 – 1200		 1 – soft
3
5
7
9
11
13
15 – hard

CK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom MadeCK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom MadeCK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom MadeCK / CV Honing Machine Diamond Honing Tool Stone SUNNEN K Series Custom Made

According to customer demands and market feedback, our SN series honing stones can be further divided into 5 categories, including the K, L, BL, P28 and Y series.

K Series Honing Stone

Series No. K3 K4 K5 K6 K8 K10 K12 K16 K20 AK20
Length (mm) 14.3 14.3 17.5 19.0 31.7 31.7 44.4 57.1 63.5 63.5

L Series Honing Stone

Series No. L6 L8 L10 L12 L16 L20 AL20
Length (mm) 34.9 57.1 57.1 88.9 114.3 114.3 114.3

BL Series Honing Stone

Series No. BL3 BL4 BL5 BL6 BL8 BL10 BL12 BL16 BL20
Length (mm) 25.4 25.4 31.7 34.9 57.1 57.1 88.9 114.3 114.3

P28 Series Honing Stone

Series No. P28 2GP28
Length (mm) 83.3 166.6

Y Series Honing Stone

Series No. Y8 Y10 Y12 YY12 Y16 YY16 Y20 YY24 Y32
Length (mm) 19.0 19.0 31.7 57.1 41.2 76.2 47.6 101.6 60.3
