Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved
Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved
Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved
Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved
Specifications
Brand Name :
HT
Model Number :
HT-MW
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
2
Price :
Price negotiable
Payment Terms :
T/C,T/T
Supply Ability :
300/pcs per month
Delivery Time :
2-3weeks
Packaging Details :
Carton Box
superabrasive :
Diamond or CBN
industrial :
glass, ferrites and more
size :
customize
shape :
cup,bowl
specification :
customize
usage :
dressing
Description

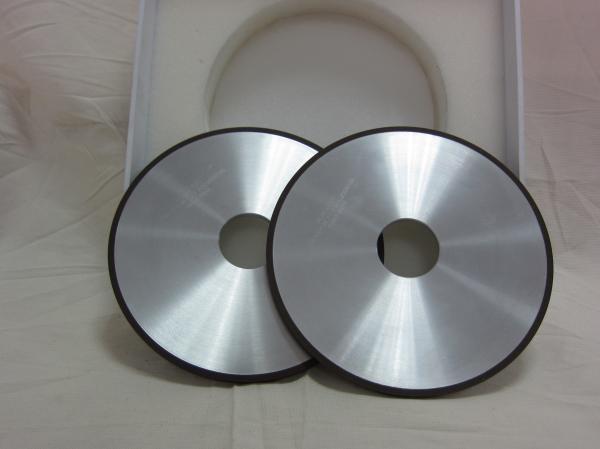

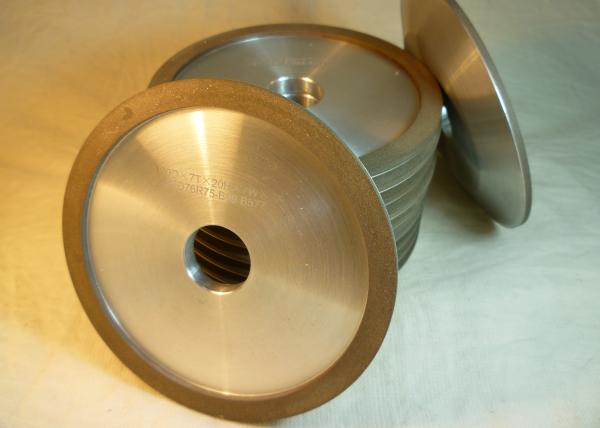

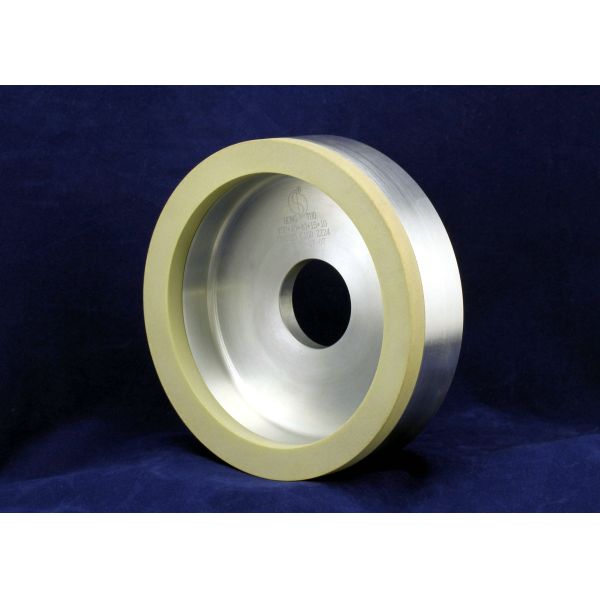

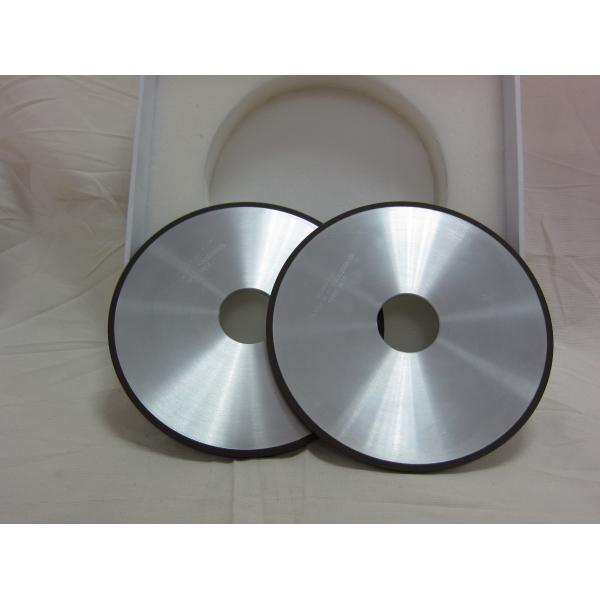

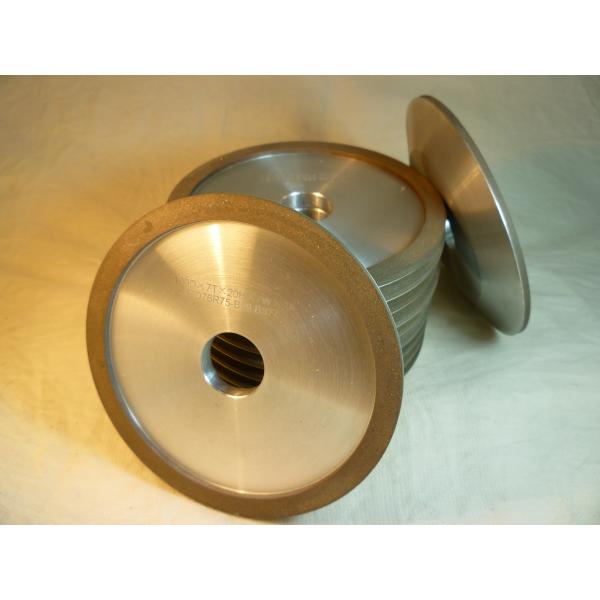

Metal Bond Grinding Wheels Diamond Wheel CBN Grinding Wheel

Diamond grinding wheels have the characteristics of good self-sharpening, sharp cutting, high efficiency, high resilience and best polishing, low roughness of work piece surface, less heat generating and without burning workpiece. Suitable for high efficiency and precision grinding.

Size available:

1A1 4A2 6A2

D:25-750mm D:100-150mm D:50-350mm

T:4-60mm(Fit Diameter) T:6-9mm(Fit Diameter) T:10-60mm(Fit Diameter)

X:3/4/5/10mm X:2/3/4mm X:2/3/4/5/6mm

Any other size available according to customer's requirement.

Shape available:

Straight grinding wheel series

plain, cup, dish and bowl grinding wheel series

When you make an order, pls provide the following data:

Type, Sizes (Diameter, Thickness, Hole, Width and depth of abrasive layer, angle etc.), Bond, Grit, Concentration, Work piece material, Grinding process (wet or dry).

(FOR 1A1)

Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved

Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved

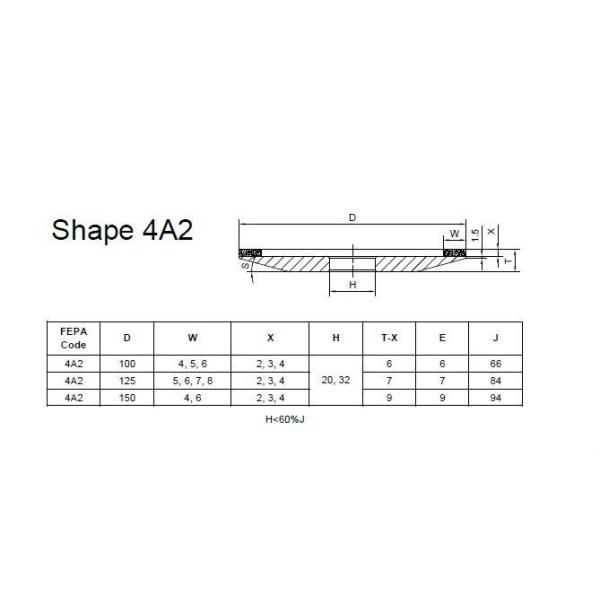

(FOR 4A2)

Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved

Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved

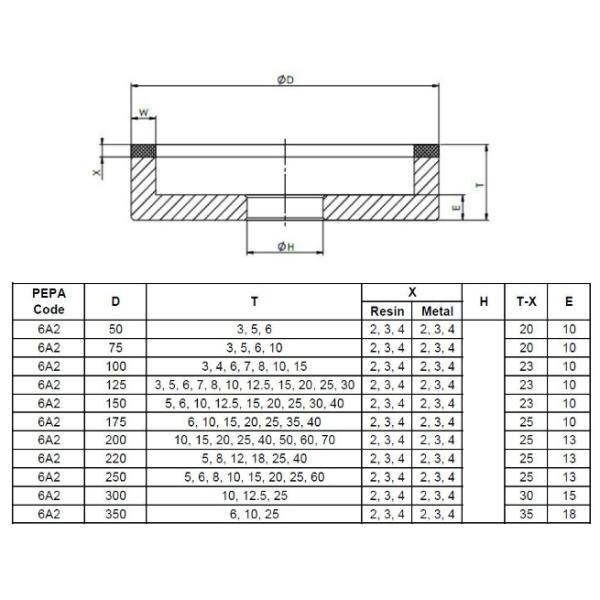

(FOR 642)

Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved

Straight Metal Bond Grinding Wheels CBN 1A1 4A2 6A2 Flat For Carbide ISO9001 Approved
