Ceramic Vitrified Bond Grinding Wheel For Bearing Races Injection Nozzles
Ceramic Vitrified Bond Grinding Wheel For Bearing Races Injection Nozzles
Ceramic Vitrified Bond Grinding Wheel For Bearing Races Injection Nozzles
Ceramic Vitrified Bond Grinding Wheel For Bearing Races Injection Nozzles
Ceramic Vitrified Bond Grinding Wheel For Bearing Races Injection Nozzles
Ceramic Vitrified Bond Grinding Wheel For Bearing Races Injection Nozzles
Specifications
Brand Name :
HT
Model Number :
Etc
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
2
Price :
Price negotiable
Payment Terms :
T/C,T/T
Supply Ability :
300/pcs per month
Delivery Time :
2-3weeks
Packaging Details :
Carton Box
Shape :
Cylindrical
size :
according to you need
Material :
CBN
Bond :
Ceramic/Vitrified
usage :
internal grinding
application :
steering pump;compressor;bearing races;injection nozzles;hydraulic lifter;gear bores
Specification :
1A1W
Hardness :
normal
Description

Diamond and CBN/ Borazon Grinding Wheels - Internal Grinding

Featured Application:

Internal Grinding Fuel Injection Nozzle Bore and Seat face;

Internal grinding of Valve Lifter Bore;

Internal Grinding of Power Steering Pump Stator;

Internal Grinding of Compressor Stator;

Grinding of Inner and outer faces of Ball & Roller Bearings;

Grinding of Bores of Inner Rings

Grinding of Hydraulic and Pneumatic Cylinders

Grinding of Con-rods ends in the Auto. Industry;

Grinding of Gun Barrels,

Grinding of Gears Bores, Collects;

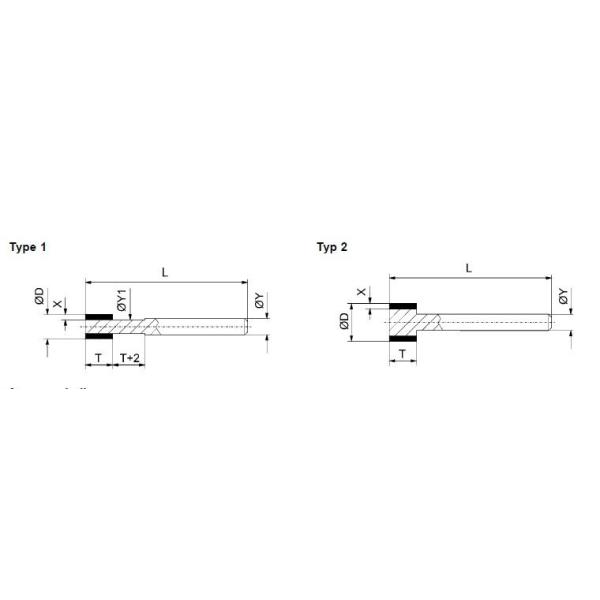

Shape Layer dimensions Shank dimensions Type
D T X Y Y1 L
1A1W 4 6 1.1 3 2.5 T+60 1
1A1W 5 6 1.5 3 - 2
1A1W 6 6 1.5 6 4 1
1A1W 8 6 2 6 5 1
1A1W 8 10 2 6 5 1
1A1W 10 6 2 6 - 2
1A1W 10 10 2 6 - 2
1A1W 12 6 2 6 - 2
1A1W 12 10 2 6 - 2
1A1W 15 6 2 6 - 2
1A1W 15 10 2 6 - 2
1A1W 20 6 2 6 - 2
1A1W 20 10 2 6 - 2
