1A8W Vitrified Cbn Grinding Wheels , Internal Vitrified Bond Diamond Grinding Wheels
1A8W Vitrified Cbn Grinding Wheels , Internal Vitrified Bond Diamond Grinding Wheels
1A8W Vitrified Cbn Grinding Wheels , Internal Vitrified Bond Diamond Grinding Wheels
1A8W Vitrified Cbn Grinding Wheels , Internal Vitrified Bond Diamond Grinding Wheels
1A8W Vitrified Cbn Grinding Wheels , Internal Vitrified Bond Diamond Grinding Wheels
1A8W Vitrified Cbn Grinding Wheels , Internal Vitrified Bond Diamond Grinding Wheels
Specifications
Brand Name :
HT
Model Number :
Etc
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
2
Price :
Price negotiable
Payment Terms :
T/C,T/T
Supply Ability :
300/pcs per month
Delivery Time :
2-3weeks
Packaging Details :
Carton Box
Shape :
Cylindrical
size :
according to you need
Material :
CBN
Bond :
Ceramic/Vitrified
usage :
internal grinding
application :
steering pump;compressor;bearing races;injection nozzles;hydraulic lifter;gear bores
Specification :

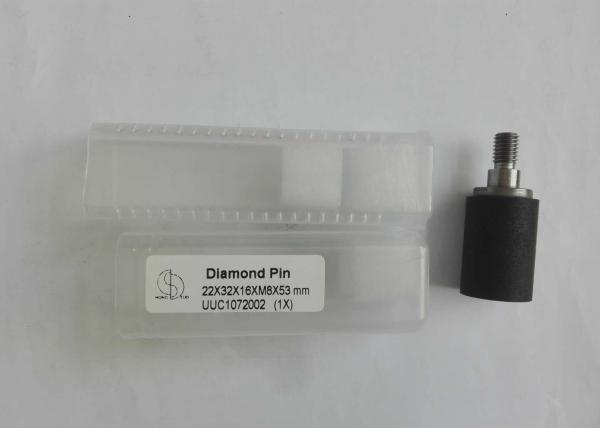

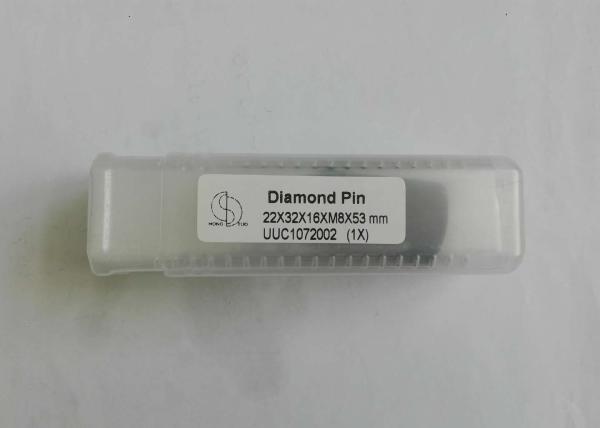

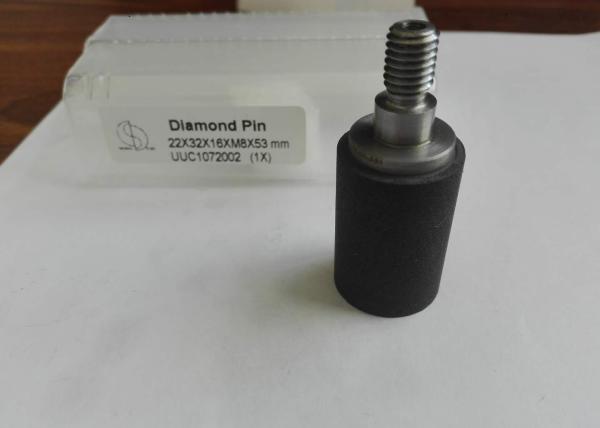

1A8W 22*32*16*M8*53mm
Hardness :
normal
Description

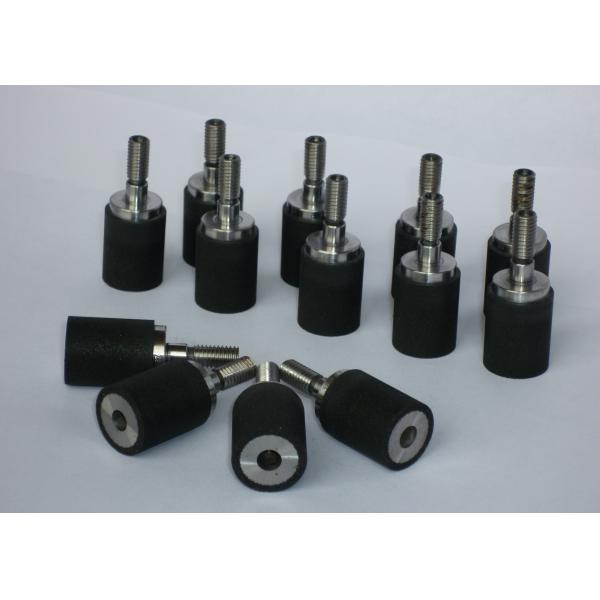

1A8W Vitrified CBN pin vitrified Bond Grinding Wheel for internal grinding

Shape Layer dimensions Shank dimensions Type
D T X Y Y1 L
1A1W 4 6 1.1 3 2.5 T+60 1
1A1W 5 6 1.5 3 - 2
1A1W 6 6 1.5 6 4 1
1A1W 8 6 2 6 5 1
1A1W 8 10 2 6 5 1
1A1W 10 6 2 6 - 2
1A1W 10 10 2 6 - 2
1A1W 12 6 2 6 - 2
1A1W 12 10 2 6 - 2
1A1W 15 6 2 6 - 2
1A1W 15 10 2 6 - 2
1A1W 20 6 2 6 - 2
1A1W 20 10 2 6 - 2

Featured Application:

Internal Grinding Fuel Injection Nozzle Bore and Seat face;

Internal grinding of Valve Lifter Bore;

Internal Grinding of Power Steering Pump Stator;

Internal Grinding of Compressor Stator;

Grinding of Inner and outer faces of Ball & Roller Bearings;

Grinding of Bores of Inner Rings

Grinding of Hydraulic and Pneumatic Cylinders

Grinding of Con-rods ends in the Auto. Industry;

Grinding of Gun Barrels,

Grinding of Gears Bores, Collects;
