Specifications
Brand Name :
HT
Model Number :
HT-HM
Certification :
ISO16949;ISO9001:2000
Place of Origin :
China
MOQ :
1
Price :
Price negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
2weeks
Packaging Details :
carton
name :
Honing Sleeve
using :
open hole;blind hole;tandem lands hole
size :
customize
specifacation :
Mas
abrasive :
diamond
cross-hatch :
yes
grit size :
60;80;and so on
parts :
sleeve
Description

Floating Single Pass Honing Tools With Integral Electroplate Sleeve

This single pass honing tool can be processed into a through hole, a semi-blind hole, a keyway hole, a keyway hole and etc, and been application in engine fuel injection pump, connecting rod, fork, hydraulic valve body, valve sleeve, air bearing, confidential gear, mold guide sleeve,air conditioning compressor main and auxiliary bearings, pistons, metering ring gauges and other high-precision internal hole processing requirements.

The single stroke honing tool works for finishing bores at a minimum of Φ2mm, and is all equipped with thrust pads. In addition, depending on honing and finishing processes, this bore finishing tool come in four types: vertical honing tool, horizontal honing tool, vertical cylinder honing tool, and horizontal cylinder honing tool. Specific product descriptions are as follows.

Floating Single Pass Honing Tools

Floating Stone Honing Tools Blind Hole Abrasive Diamond Horizontal Vertical

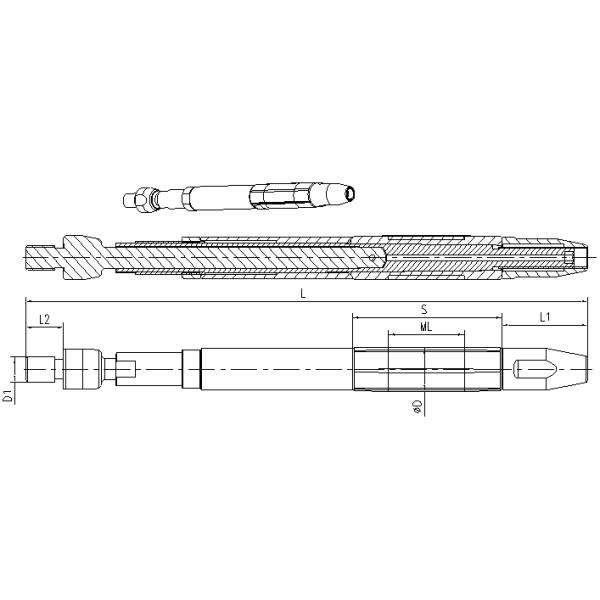

Sleeve Diameter≥Ø12

D mandrel length L1 L2 D1 S ML
12～13 289.5 45 20 M12 80 40
14～15 289.5 45 20 M12 80 40
16～18 289.5 45 20 M12 80 40
19～20 289.5 45 20 M12 80 40
21～22 289.5 45 20 M12 80 40/60
23～24 289.5 45 20 M12 80 40/60
24～25 289.5 45 20 M12 80 40/60
25～26 289.5 45 20 M12 80 40/60
26～28 289.5 45 20 M12 80 40/60

We can design according your requirement.


Connection size:

Floating Stone Honing Tools Blind Hole Abrasive Diamond Horizontal Vertical
