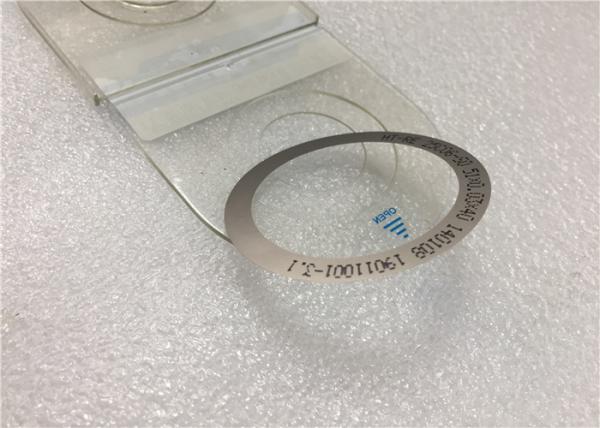

Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time
Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time
Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time
Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time
Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time
Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time
Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time
Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time
Specifications
Brand Name :
HT
Model Number :
HT-YB/YH
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
2
Price :
Price negotiable
Payment Terms :
T/C,T/T
Supply Ability :
300/pcs per month
Delivery Time :
2-3weeks
Packaging Details :
Carton Box
Dicing Objects :
Optical glass, ceramics, ferrites, crystals and more
Size :
Customize
Abrasive :
Diamond
Bond :
Electroplated
Thicness :
0.11mm
Color :
Grey
Description

Longer life time better cutting quality Disco Dicing Blades Diamond Abrasive For QFN


The HT-RM series metal sintered blade – also called a metal bond blade—is one of our most wear resistant and enduring dicing blades. This diamond tool is sintered from a combination of diamond powders and metal bonds.

It comes with excellent form holding characteristics, and an extremely high wear resistance, making it ideal for cutting and slotting of electronic and optical components.
These metal sintered dicing blades have become an ideal dicing cutter for optical glass, ceramics, ferrite and crystals. For more details, please browse the specific product pages or contact us directly. Rest assured that we can provide the right diamond cutting wheel for your needs.

Features

Features
Our metal bond dicing blades have exceptional diamond holding capabilities and an extreme wear rate, providing a much longer service life.
The great form holing performance enables it to prevent oblique or S-shaped cutting.

Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life TimeBetter Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time

Dicing Objects:

  • Optical glass
  • ceramics
  • ferrites
  • crystals and more

Better Cutting Disco Dicing Blades Diamond Abrasive For QFN , Longer Life Time

Related Technical Parameters

O.D Thickness I.D
Size Tolerance Size Standard tolerance High precision tolerance Size Tolerance
50～ 100 +0.02 0.1~≤ 0.15 ±0.005 25.4
30
31.75
40
60
80
88.9		 +0.02~ 0
0.15~≤ 0.25 ±0.005 ±0.003
>0.25 ±0.01 ±0.005

Advantages

With high toughness,high precision,ultra thin,long life,easy to use and so on;
Can be diffcult step cutting and cutting chamfering;
Convenient operation,greatly reducing the time required to replace the balde and equipment maintenance;
A variety diamond abrasive and a varity of binding agent,to meet the needs of different processing.

We need below details for recommend blades for you

1.workpiece material ,maybe QFN or others .
2.workpiece thickness
3. Cutting speed
4. spindle rotate speed
5.cutting quality request: chip and bur request
6.Lifetime request : how many pcs workpiece you want to cut?

By the way,we also supply chuck table,dressing blades,flange and dicing saw.
