Fuel Injection Pump And Nozzle Diamond Sharpening Stone , SUNNEN Diamond Honing Stone
Fuel Injection Pump And Nozzle Diamond Sharpening Stone , SUNNEN Diamond Honing Stone
Fuel Injection Pump And Nozzle Diamond Sharpening Stone , SUNNEN Diamond Honing Stone
Fuel Injection Pump And Nozzle Diamond Sharpening Stone , SUNNEN Diamond Honing Stone
Fuel Injection Pump And Nozzle Diamond Sharpening Stone , SUNNEN Diamond Honing Stone
Fuel Injection Pump And Nozzle Diamond Sharpening Stone , SUNNEN Diamond Honing Stone
Specifications
Brand Name :
HT
Model Number :
HT-DHT
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
2
Price :
Price negotiated
Payment Terms :
T/C,T/T
Supply Ability :
1000/pcs per month
Delivery Time :
2-3weeks
Packaging Details :
Carton Box
Using :
Pump and nozzle Industry
Grit Size :
60,230.270 and so on.
Abrasive :
CBN and Diamond
Size :
Custmer Design
Specification :
L8-NM45/L12-NM55
Other :
According to client request
Name :
Honing stone
Cross-hatch :
Yes
Description

Fuel injection pump and nozzle Diamond Sharpening Honing Stone , SUNNEN Diamond Honing Stone

The super abrasive stone, also known as a honing stick, described here is specifically designed for Sunnen honing machines. The honing equipment has different series of honing stones that can finish different types of bores with different bore diameters. For example, the Y series is mainly used to bore holes with a keyway.

If our diamond or CBN honing stones can’t be matched with your Sunnen honing equipment in size and bore diameters, please let us know. As a professional honing tool supplier, we can customize suitable products for you. In addition, we can offer honing stones and bore honing tools for Sunnen machines and other brand name honing equipment. For specific information, please check out “other honing stone.”

K Series Honing Stone

Series No. K3 K4 K5 K6 K8 K10 K12 K16 K20 AK20
Length (mm) 14.3 14.3 17.5 19.0 31.7 31.7 44.4 57.1 63.5 63.5

L Series Honing Stone

Series No. L6 L8 L10 L12 L16 L20 AL20
Length (mm) 34.9 57.1 57.1 88.9 114.3 114.3 114.3

BL Series Honing Stone

Series No. BL3 BL4 BL5 BL6 BL8 BL10 BL12 BL16 BL20
Length (mm) 25.4 25.4 31.7 34.9 57.1 57.1 88.9 114.3 114.3

P28 Series Honing Stone

Series No. P28 2GP28
Length (mm) 83.3 166.6

Y Series Honing Stone

Series No. Y8 Y10 Y12 YY12 Y16 YY16 Y20 YY24 Y32
Length (mm) 19.0 19.0 31.7 57.1 41.2 76.2 47.6 101.6 60.3

We need below details to design stone for you

Hole size before and after honing
Workpiece hardness and material
Hole type
surface finish and stock removal
Hole length

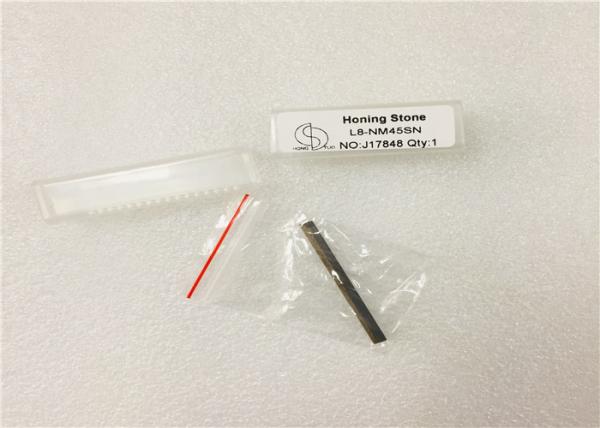

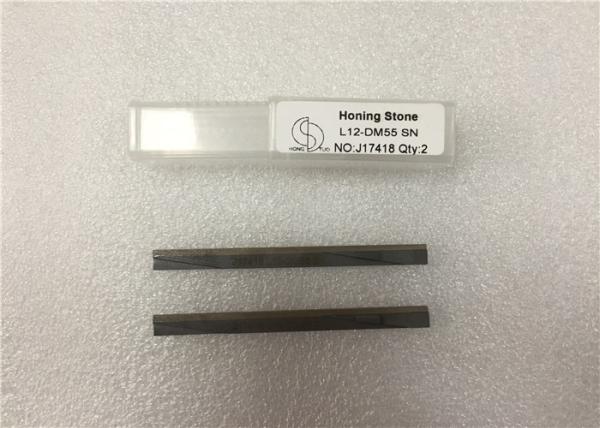

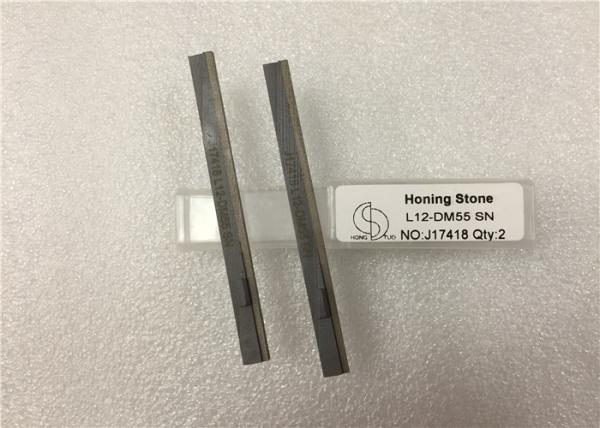

More stone pictures
