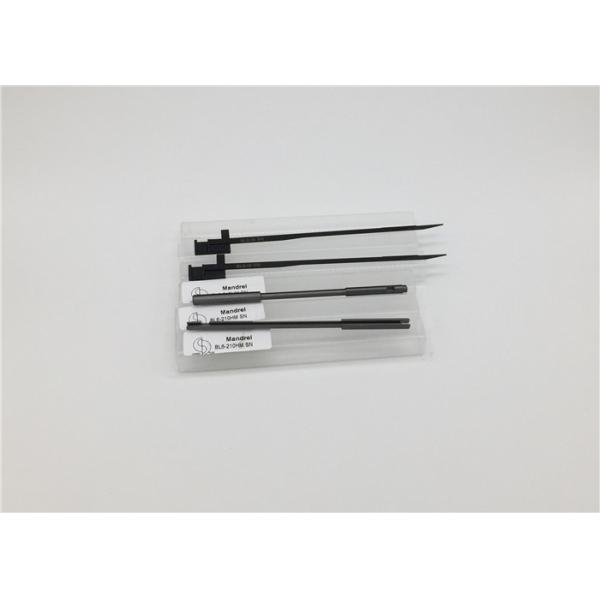

Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel
Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel
Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel
Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel
Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel
Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel
Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel
Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel
Specifications
Brand Name :
HT-SN
Model Number :
HT BL8-295CH SN
Certification :
ISO9000:2015&ISO16949
Place of Origin :
China (Mainland)
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500/pcs per month
Delivery Time :
1-2 weeks
Packaging Details :
Carton box
Size :
Customized
Specifacation :
BL6-210CH
Length :
customer design
Diameter :
9.4mm-12.57mm
material :
steel
stone :
K12NM
adapter :
K12-A
Description

BL-6 CBN and diamond stone sunnen style honing mandrel Diamond Honing Tool

Honing Stones are classified as follows series,

K3, K4, K5, K6, K8, K10, K12, K16, K20

L3, L4, L5, L6, L8, L10, L12, L16, L20

P28

Mandrels are including the following series,

K3, K4, K5, K6, K8, K10, K12, K16, K20

L6, L8, L10, L12, L16, L20

BL3, BL4, BL5, BL6, BL8, BL10, BL12, BL16, BL20

Honing mandrel composition

What is the role of the honing rod composition and each honing component:

Honing stone: the grinding strip is bonded to the base and is the main part involved in grinding;

Honing mandrel: the rear end is connected with the connector, and the front end groove is a cut body of the honing stone;

Adapter: connecting the honing rod and the honing machine spindle to transmit torque;

Wedge: push the oil stone up and make the oil stone participate in the grinding;

Retainer: Connect to the connector to tighten the oil stone to prevent the flying strip.

K series

Series No. K3 K4 K5 K6 K8 K10 K12 K16 K20 AK20 AK30
Stone length 15 15 18 19 32 32 45 57 63 63 63
Bore diameter 2.5-3 3-4 4-5 5-6 6-8 8-9.5 9.5-13 13-16 16-19 19-32 32-40
Adapter K3 K4 K5 K6 K8 K10 K12 K16 K20 AK20 AK30

Custom BL -6 CBN And Diamond Honing Tool Stone Sunnen Style Honing Mandrel

HONING CONDITION SOLUTIONS

Poor stone life

1, Decrease cutting pressure

2, use faster spindle speed

3, use harder stone (one with higher hardness number)

4, use coarser grit stone ( one with lower grit number)

5, increase lubricity of honing fluid.

Our service

1. Quick Response: Your inquiry will be replied within 24 hours.

2. Competitive Price : Directly from factory to save your money.

3. after-sales warranty : Once there is problem after you received products, you can contact us in time. We will resolve it in short time.

4. Flexibility: Small orders are acceptable for quick delivery and to help you reduce stock cost.

5. OEM service: Custom fabrication according to your drawings ,samples or designs.
