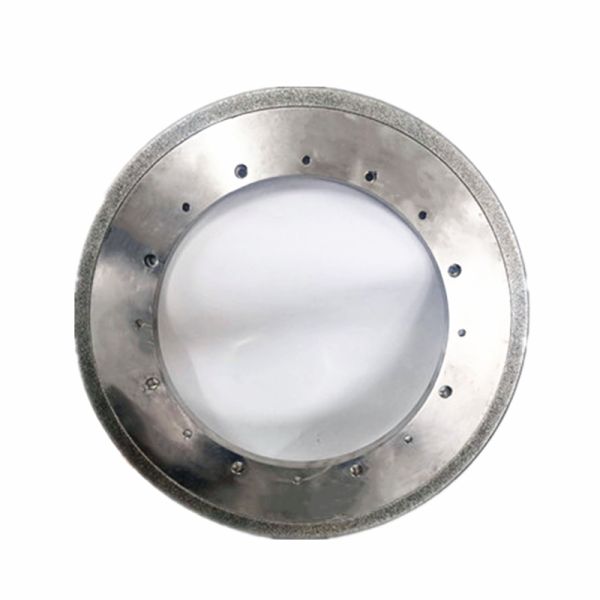

Electroplated Diamond Grinding And Polishing Wheel For Cast Iron And Castings

Electroplated Diamond Wheel type: TYDD-1A1(T2)

Product Name: diamond grinding wheel

Material: high quality diamond

Matrix material: 45# steel

Appearance: check the distribution uniformity, firmness and coating of diamond.

Application fields:

This product is suitable for the grinding, deburring and polishing of ferrous metals: cast steel, cast iron, non-ferrous metals: cast aluminum alloy, aluminum magnesium alloy. The product has high manufacturing accuracy, long service life, low single piece processing cost, and can be used under high speed conditions, greatly improving the work efficiency. It solves the grinding of large workpieces (aerospace engine room, hull, wind turbine blade, engine blade, composite pipe, etc.) and the integrated deburring and polishing of workpieces with complex contour (engine cylinder block, cylinder head and other castings).

1. Sketch map of our diamond abrasive wheel

D: out diameter

H: inner diameter

T: thicknesss

X: abrasive area width

2. Detail size matching of our normal grinding wheels.

We accept customed special sizes from client, prefer quantity not less than 10pieces.

3. More Pictures of our diamond wheel

4. Character of our grinding wheels

• High wear resistance
• Long processing life
• Sharp with high abbrasive efficiency
• Wide range of processing applications.

5. Our Operating Procedure

Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.

We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel

type and quotatioon to you, if possible, better for you to provide us more information like followings:

1. Yr processing objects.

2. Yr OD, ID, Thickness data.

3. Grit size if possible.

4. Rotary speed of your processing machine.

Many Thanks.
