Wear Resistance 8 Inch Diamond Grinding Wheel Abrasive Disc
Wear Resistance 8 Inch Diamond Grinding Wheel Abrasive Disc
Wear Resistance 8 Inch Diamond Grinding Wheel Abrasive Disc
Wear Resistance 8 Inch Diamond Grinding Wheel Abrasive Disc
Specifications
Brand Name :
TONGYU
Model Number :
12A2(D1)
Place of Origin :
China
MOQ :
5pcs
Price :
Usd30-50 per piece
Payment Terms :
T/T, L/C, D/P
Supply Ability :
2000pcs per month
Delivery Time :
5-20 days
Packaging Details :
box
Name :
Resin Bonded Diamond Grinding Wheel dish wheels
Type :
dish wheel, diamond wheel
Main content :
Super Diamond Grits
Bonded type :
Resin bonded
Out Diameter :
75-200mm
Inner Diameter :
10-32mm
Thickness :
8-20mm
Abrasive area width :
2-8mm
Description

Resin Bonded Diamond Grinding Wheels,

Dish wheel type 12A2(D1)

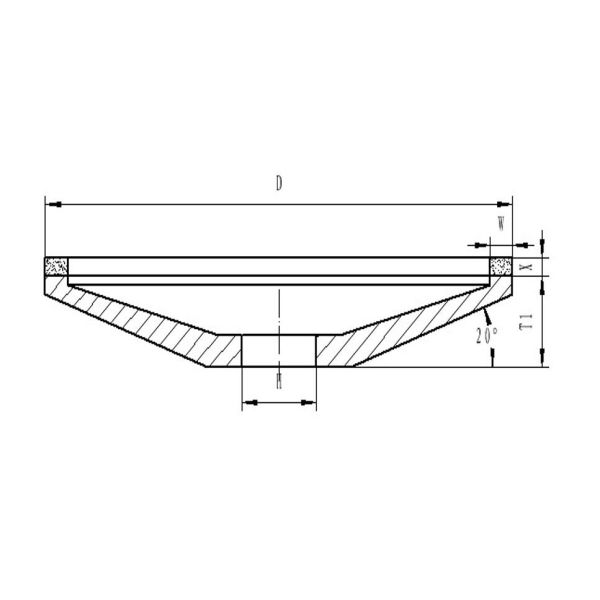

1. Sketch map of our diamond abrasive wheel

D: out diameter

H: inner diameter

T: thicknesss

X: abrasive area width

Wear Resistance 8 Inch Diamond Grinding Wheel Abrasive Disc

2. Detail size matching of our normal grinding wheels.

We accept customed special sizes from client, prefer quantity not less than 10pieces.

Dimensions(mm)
D T1 H X W
75 8 10,20 2,3,4 3,5,6,10
80 10 20 3 3
100 10 20 2,3,4 5,6,10
125 14 32 2,3,5 5,6,10
150 16 32 2,3,6 5,6,10
175 18 32 2,3,7 6,10
200 20 32 2,3,8 10

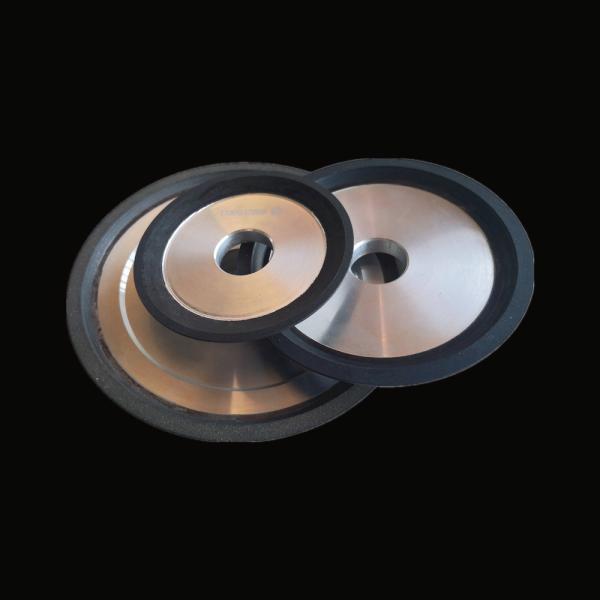

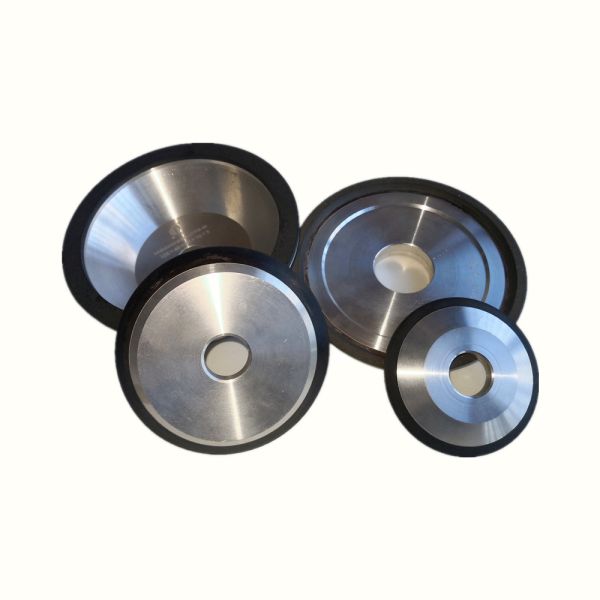

3. More of our diamond wheel picture

Wear Resistance 8 Inch Diamond Grinding Wheel Abrasive DiscWear Resistance 8 Inch Diamond Grinding Wheel Abrasive Disc

4. Character of our grinding wheels

  • High wear resistance
  • Long processing life
  • Sharp with high abbrasive efficiency
  • Wide range of processing applications.

Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.

We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel

type and quotatioon to you, if possible, better for you to provide us more information like followings:

1. Yr processing objects.

2. Yr OD, ID, Thickness data.

3. Grit size if possible.

4. Rotary speed of your processing machine.

Many Thanks.
