High Performance Of Ceramic Bonded CBN Grinding Bits CBN Internal Grinding Wheel

For Internal Grinding of Workpieces

Blade Type: TYC-BT-004

Specifications of Conventional Grinding Bits:

• 16mmx23mmxM6

• 45mmx45mmxM16

• 33mmx33mmxM12

• 20.5mmx27mmxM10

• 45mmx30mmxM16

• 9.5mmx18mmxM12

• 18mmx25mmxM22

• 14.3mmx16mmxM20

Application field and scope:

Machining workpiece:

• Automobile steering pump, rotary vane compressor stator;

• Piston refrigeration compressor cylinder hole and shaft hole;

• Bearing industry, bearing ring grinding;

• Constant velocity universal joint ball cage and inner and outer raceway grinding;

• High precision gear bore grinding;

It has been successfully used in high precision CNC grinding machine all over the world.

Main features and advantages:

• High grinding efficiency,

• High machining accuracy,

• Good dimensional consistency,

• Long service life of grinding wheel

Suitable for grinding materials

• Cast iron: chilled cast iron, ball milled cast iron, gray cast iron, alloy cast iron, etc

• Steel parts: 20Cr, GCr15, 45 steel, 55 steel, etc

Our company can customize all kinds of products according to customers' needs, and establish detailed customer files to ensure customers' needs. Our company will strictly abide by this commitment and related contracts, fulfill the responsibilities and obligations!

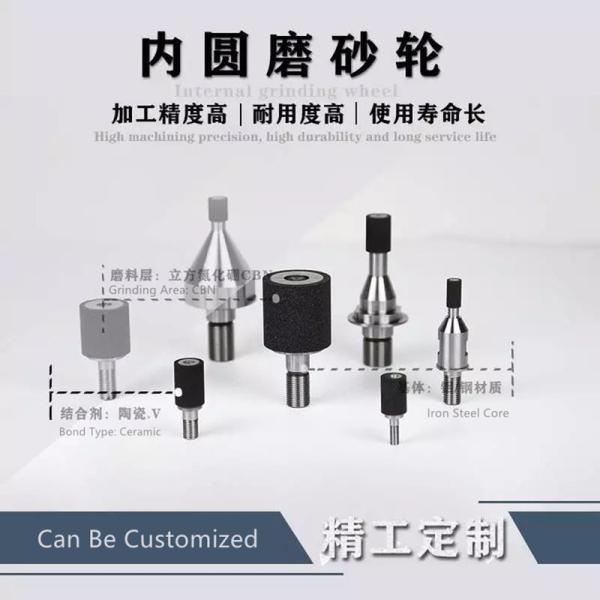

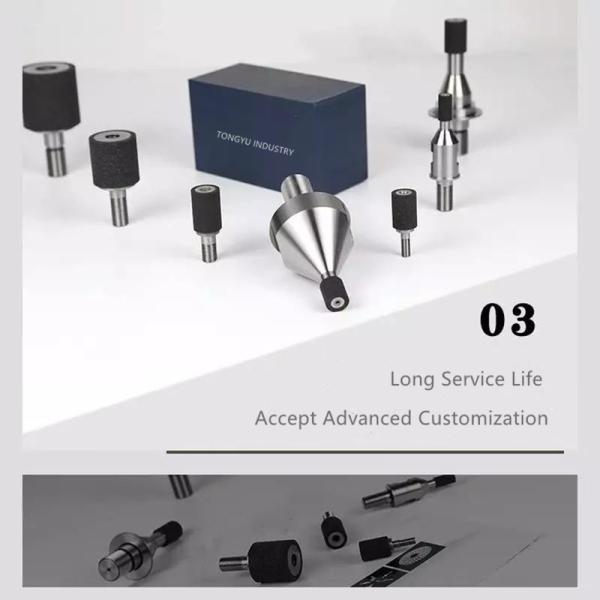

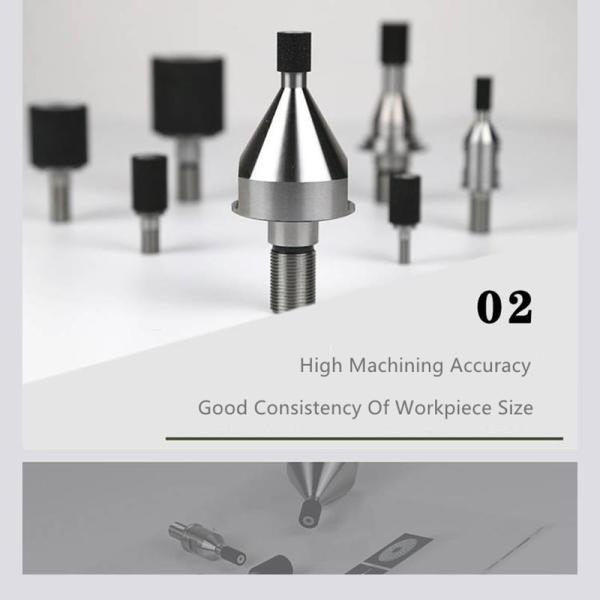

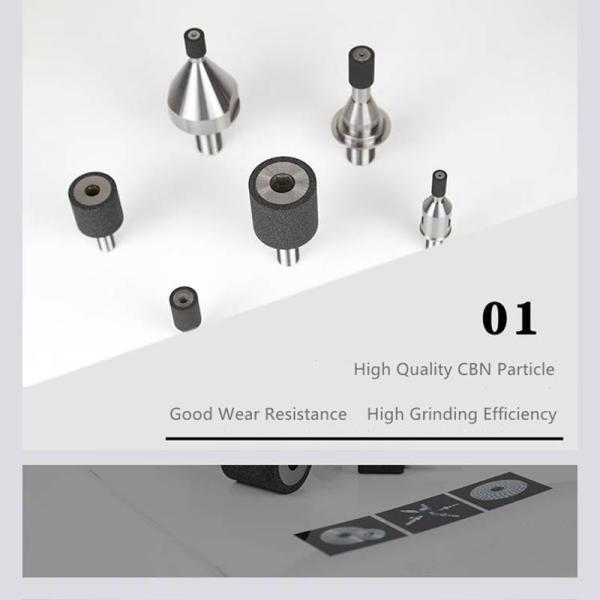

More Pictures of CBN Grinding Bit :

Brief Introduction of Different Bonded Type of Diamond And CBN Tools:

• Resin bonded diamond series: resin bonded diamond and cubic boron nitride grinding wheels are abrasive tools and tools of various shapes made of diamond or cubic boron nitride and resin bonded.

Features: high grinding efficiency, less heat, good self sharpening, not easy to block. The surface roughness of machined workpiece is low. Such as glass, ceramic.

Applications: widely used in cemented carbide fine grinding, semi fine grinding, grinding, polishing, porcelain,

stone and other non-metallic materials fine grinding.

• Diamond bronze bond series: it is an abrasive tool and tool made by pressing and high temperature sintering with diamond or cubic boron nitride as abrasive and metal powder as bond.

Features: strong binding force, good wear resistance, long service life, good shape retention, can withstand heavy load

grinding.

Application: mainly used for grinding and cutting of glass, gem, stone, semiconductor material, brake pad, and electrolytic grinding of cemented carbide.

• Ceramic bonded diamond grinding wheel series:

Features: 1. High edge strength, i.e. high grinding efficiency and good self sharpening of grinding wheel;

2. Good shape retention; 3. Easy correction; 4. High durability and long service life of grinding wheel; 5. High quality

of knife edge.

Purpose: it is mainly used for fast, high efficiency and low loss grinding of PCD, PCBN, cemented carbide tools and

other cutting tools.

• Diamond / resin cutting chip series:

Diamond cutting chip: mainly used for optical glass, gem, crystal, ceramics, marble, cemented carbide, tungsten

steel, ferrite, semiconductor, etc.

Diamond resin cutting chip: mainly used for glass, glass tube / plate, gem, crystal, ceramics, cemented carbide,

tungsten steel, ferrite, monocrystalline silicon / polycrystalline silicon, silicon rod, semiconductor, etc

Precautions for use:

• Please check carefully before installing the cutting wheel. If there is any gap or other damage, please stop using it.

• When the cutting wheel is marked with the rotation direction, it should be consistent with the rotation direction of the machine tool. On the contrary, the cutting is not sharp, and it is difficult to give full play to the performance of the cutting wheel.

• Please do not use the cutting wheel that does not meet the requirements.

• If any abnormality is found in the cutting process, stop the machine immediately and check the cause.

• When the cutting is not sharp, the grinding wheel should be trimmed. If it is used continuously, the grinding wheel may be damaged due to overheating and overload.

• When the grinding wheel rotates, it is strictly forbidden to cut by hand, let alone touch the sand by hand and body

• The cutting wheel is forbidden to be used in operations other than grooving or cutting, so as to avoid abnormal operation due to uneven stress.

Ordering instructions:

When you order for the first time, please provide the following parameters, so that we can help you choose the most suitable cutting wheel.

Specification and size: abrasive, particle size, binder, outer diameter, thickness, inner diameter, abrasive working layer width, substrate thickness, etc. purpose: workpiece name, cutting size, cutting material;

Service conditions of grooving and cutting: machine tool, grinding wheel speed, feed speed and cutting depth;

Dry and wet cutting requirements: cutting accuracy, chipping requirements, processing surface integrity, etc

Special requirements: whether the tool is assembled and used, whether the resin cutting wheel needs to conduct electricity, whether the outer circle of the cutting wheel has a water tank, the size and quantity of the water tank, whether there is a chip removal groove on the outer side of the cutting wheel base, etc.
