Specifications
Brand Name :
Johnson Tools
Model Number :
14"
Certification :
SGS, GB，MPA
Place of Origin :
China
MOQ :
5-10pcs
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per year
Delivery Time :
Around 20-35days
Packaging Details :
White box, Plastic box
Type :
Concrete diamond blades
Equipment :
Hand held saws, Walk Behind Saws
Net weight :
1.8-2.0kg
Application :
Cutting cured concrete, old concrete
Performance :
Fast cutting, long life
Main market :
America, Europ, Africa, Asia, Australia
Description

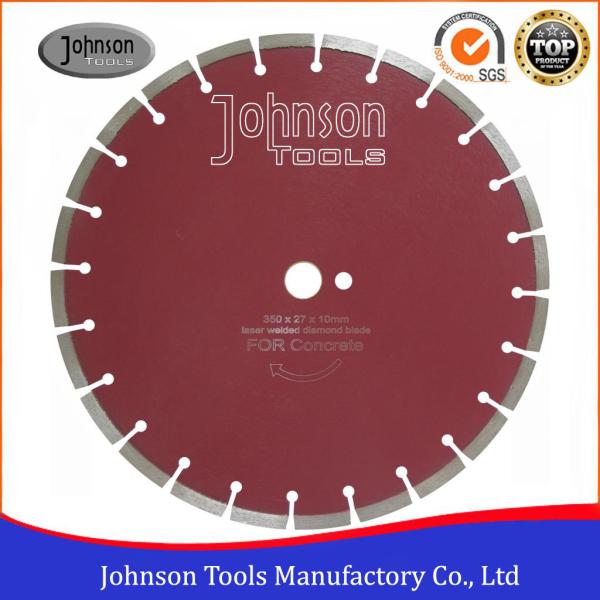

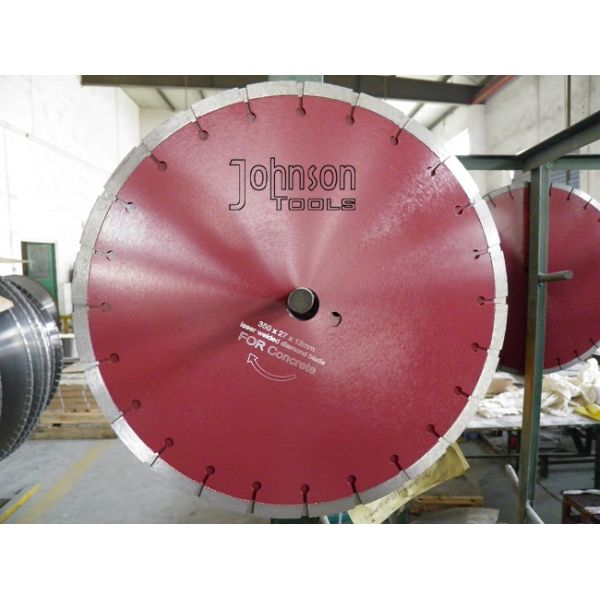

14" Laser Welded Diamond Concrete Saw Blade for Cutting Cured Concrete

14" Laser welded Diamond Blade designed for low or high horse power walk behind saws and high speed hand held saws.

Wet and dry cutting for no reinforcement, concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers.

Undercut protection to prevent segment loss during cutting. Maximum cutting performance and long life via tough wear-resistant segments.

Specification

1. Diameter:14"

2. Segment thickness:3.2mm

3. Segment height:10/12/15mm

4. Inner hole: 16/20mm, 22.23mm, 25.4mm, 50mm or as your request

Inch

Diameter

(mm)

Teeth length

(mm)

Teeth thickness

(mm)

Teeth height

(mm)

Teeth number

(nos)
14" 350 40 3.2 10/12/15 24

Other size Concrete Saw Blade we could do as following

Inch Diameter Teeth length Teeth thickness Teeth height Teeth number
(mm) (mm) (mm) (mm) (nos)
4" 105 32 2.2 7/10/12 8
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 7/10/12 16
12" 300 40 3 10/12/15 20
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5 10/12/15 40
30" 750 40 5 10/12/15 46
