Specifications
Brand Name :
Johnson Tools
Model Number :
300-1600mm
Certification :
SGS,GB
Place of Origin :
China
MOQ :
5-10pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per year
Delivery Time :
Around 15-35days

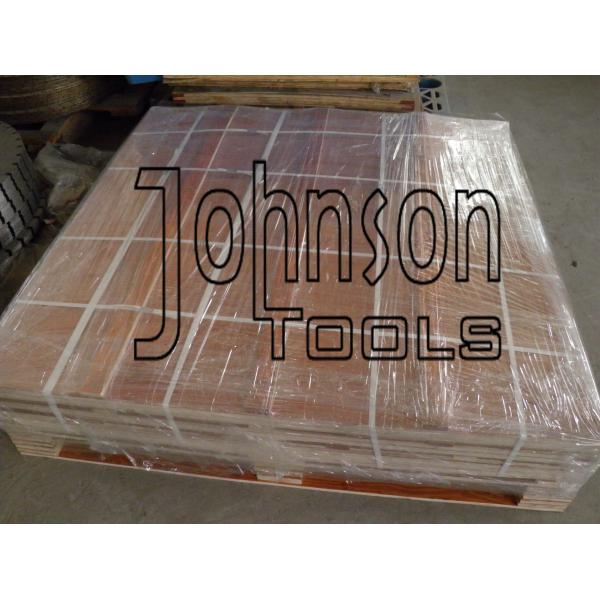

Packaging Details :
White box, colored package, plywood
Price :
Negotiate
Processing technology :
Silver brazed
Shape :
Circular saw blade
Material :
Diamond
Type :
Marble cutting blades
Size :
300-1600mm
Slot type :
Narrow U
Description

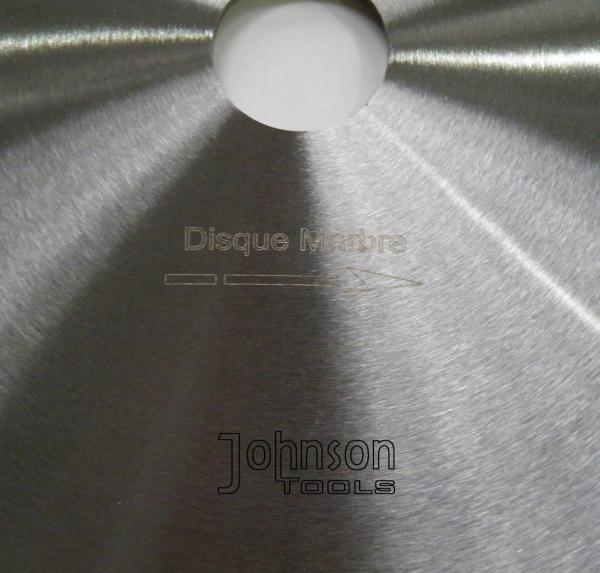

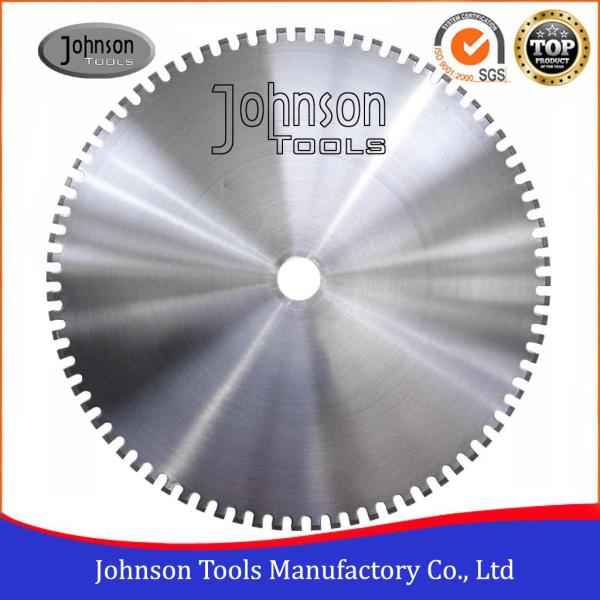

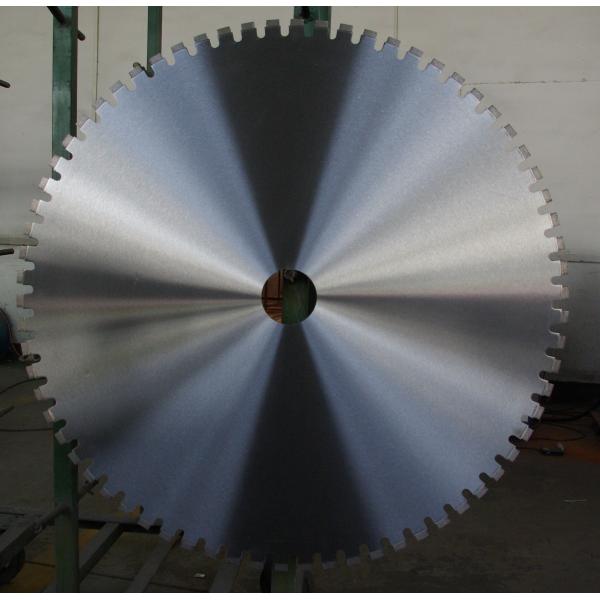

300-1600mm Silver Brazed Diamond Stone Cutting Blades for Marble Cutting

Feature

1. Silver brazed technology.

2. Suit to cut soft, middle hard, very hard marbles.
3. Wet cutting.

4. Excellent sharpness ensure fast smooth cutting, no chipping.
5. Fits to bridge cutting machine, table saws, hand held power saw.

6. Well exported all over the world.

Narrow U Slot Type Diamond Stone Cutting Blades High Efficiency Wet Cutting 12”- 64”

Details specification

1. Diameter:300-1600mm

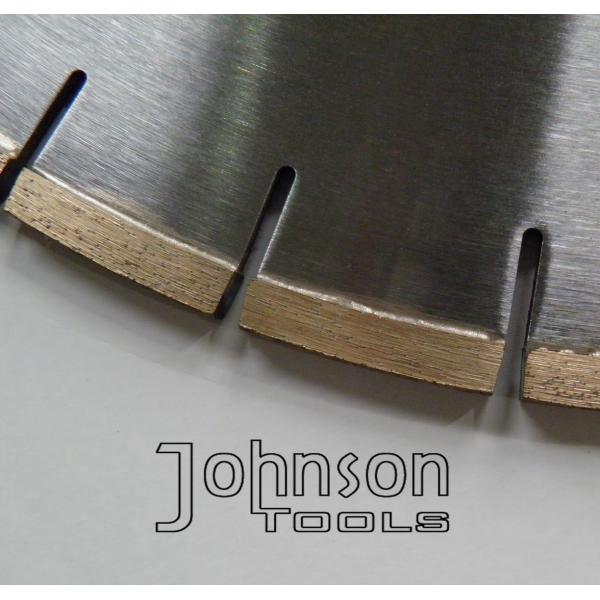

2. Segment length:40mm for 300-600mm saw blade, 24mm for 800-1600mm saw blade.

3. Segment thickness:3.0-9.0mm

4. Segment height:8/10/12/15mm

5. Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm or as your request.

Inch

Diameter

(mm)

Teeth length

(mm)

 Teeth thickness
(mm)		 Teeth height
(mm)

Teeth number
12” 300 40 3.0 8/10/12 21
14” 350 40 3.2 8/10/12 26
16” 400 40 3.4 8/10/12 28
18” 450 40 3.6 8/10/12 32
20” 500 40 4.0 8/10/12 36
24” 600 40 4.4 8/10/12 42
32” 800 24 6.0 10/12 46
36” 900 24 6.5 10/12 64
40” 1000 24 7.0 10/15 70
48” 1200 24 7.0 10/15 80
52” 1300 24 7.0 10/15 88
56” 1400 24 8.0 10/15 92
64” 1600 24 9.0 10/15

108

Narrow U Slot Type Diamond Stone Cutting Blades High Efficiency Wet Cutting 12”- 64”

Company contact details

1. Factory:Johnson Tools Manufactory Co.,Ltd

2. Our trading company: Suzhou Johnson Import and Export Co.,Ltd

3. Email:sales@johnsontoolscn.com;sales@diatoolscn.com

4. Online contacts: Skype:sinodiatools1; whatsapp:+86-18936085316

Narrow U Slot Type Diamond Stone Cutting Blades High Efficiency Wet Cutting 12”- 64”

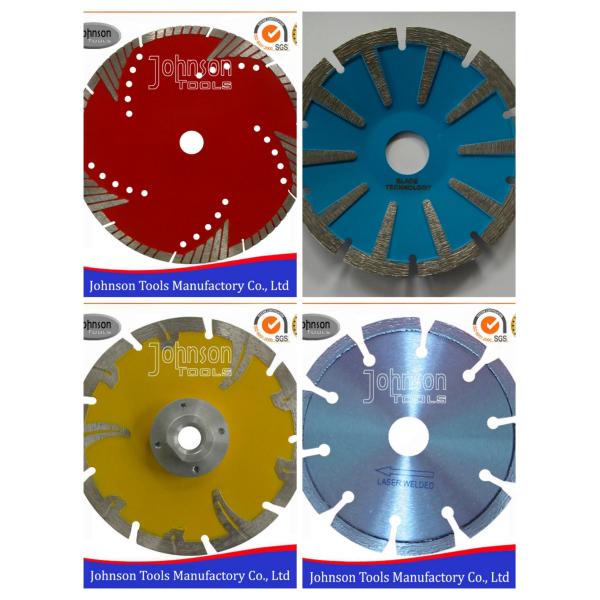

Other Stone Cutting Blade we do:

From 105mm-1600mm, for cutting granite, sandstone, limestone, bluestone, basalt, andesite stone, quartz, lavastone etc. We have export our blades for cutting these stone well. If you are cutting other type of stone, pls send us it's pictures, and tell us the hardness of it, also the blade you current use and cutting pictures, then we can provide you diamond blade with suitable formula.
