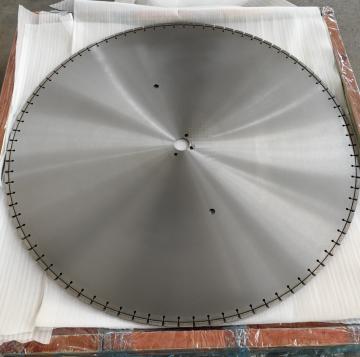

710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam
710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam
710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam
710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam
Specifications
Brand Name :
Johnson Tools
Model Number :
28"
Certification :
SGS, GB
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per year
Delivery Time :
Around 20-35days
Packaging Details :
Plywood
Type :
Diamond blades
Application :
Prestressed concrete, precast concrete
RPM :
1500~2000 RPM
Cutting type :
wet cutting
Color :
Red, Clear or as your request
Inner hole :
50mm, 60mm or others
Description

710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam

T-beam, used in construction, is a load-bearing structure of reinforced concrete, with a t-shaped cross section. The top of the t-shaped cross section serves as a flange or compression member in resisting compressive stresses. The web (vertical section) of the beam below the compression flange serves to resist shear stress and to provide greater separation for the coupled forces of bending.
Our blade is cutting the prestressed concrete beam, column ,lintel and so on.

710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam

Feature

1. 100% laser welded technology.

2. Wet Cutting prestressed concrete: 350kg/cm².

3. Fits to Precast Prestressed Concrete Machine—Bridge Crane, Prestressed concrete cutting machine.

4. Well exported to South africa, Bahrain, Vietnam, Egypt, UK, Mexico, Thailand market.

Spec.

Diameter: 710mm

Segment thickness: 6.4mm

Segment height:10mm, 15mm

Segment lenth: 40mm

Teeth number: 48

Inner hole: 50mm, 60mm or as your request

Inch

Diameter

(mm)

Teeth length

(mm)

Teeth thickness

(mm)

Teeth height

(mm)

Teeth number

(nos)
28" 710 40 6.4 12 48
28" 710 40 6.4 15 48

Our Technology

We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled worers and technical engineers.

710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam

710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam Prestressed saw blade.pdf
