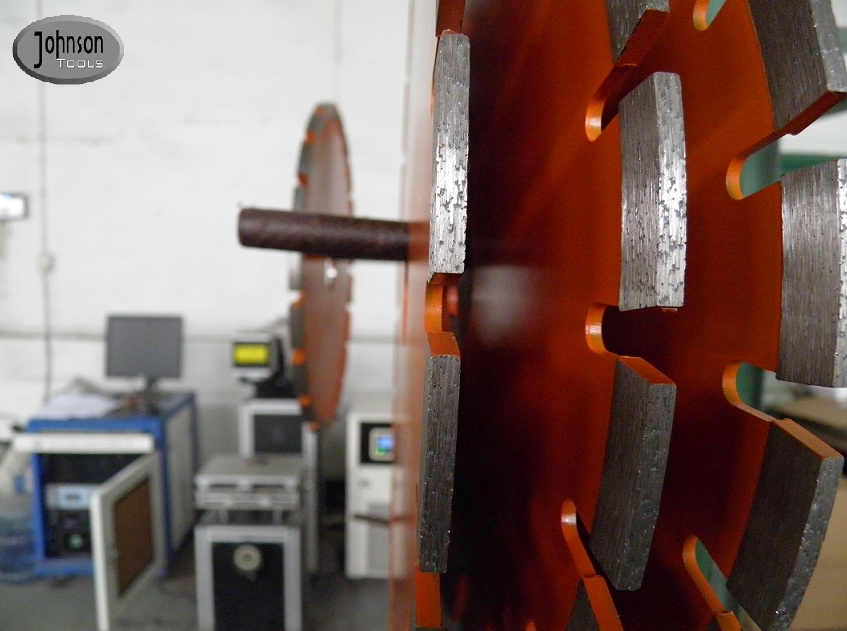

350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
Specifications
Brand Name :
Johnson Tools
Model Number :
WB5
Certification :
SGS,GB
Place of Origin :
China
MOQ :
10pcs
Price :
USD65-USD80
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
10000pcs/month
Delivery Time :
15-30days
Packaging Details :
White box,carton
Diameter :
350mm
Type :
Loop saw blade
Application :
Concrete and Asphalt
Segment size :
40x8/10/12/14x10mmx21T/24T
Inner hole :
25.4mm
Description

350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade

350mm diamond Concrete cutting saw blade : Laser Loop saw blade

1. Description
Loop diamond concrete saw blade is specially for cutting and grooving on concrete and asphalt for burying Traffic safety Detector . Providing straight cutting and reducing vibrations for trouble free operation.
Usually its segments, steel cores thicker than regular saw blade for improved tracking. All could do laser welding, if thicker than 14mm, only could do silver brazing.At present, they're well exported to European, Africa and Australia market. Have a good feedback.


350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade

2. Features
1. Used for random grooving saws.
2. Providing straight cutting and reducing vibrations for trouble free operation.
3.laser welded or silver brazed, accoridng to the segment and steel disc thickness
4. Thicker than normal steel cores for improved tracking.
5. Cutting expansion joints in fresh concrete or for loop-line traffic light detector systems.
6. Dry or wet cutting.
7. U slot loop cutting saw blade

3. Specification
1. Diameter: 350mm
2. Segment length: 40mm
3. Segment Width:6-14mm or as your request.
4. Segment height:10mm, 12mm, 15mm.
5. Inner hole: 22.23mm, 25.4mm, 50mm or as your request.
6. U slot loop cutting saw blade

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
14" 350 40 6/8/10/12/14 10/12/15 21


Other size of the diamond loop saw blade

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
12" 300 40 6/8/10/12/14 10/12/15 18
14" 350 40 6/8/10/12/14 10/12/15 21
16" 400 40 6/8/10/12/14 10/12/15 24
18" 450 40 6/8/10/12/14 10/12/15 26


4. Packing and shipping


Packing: Each saw blade is packed in white box, then according to the size, 5pcs put in an export standard carton.
Shipping: Usually by courier, air and sea, we could recommend the suitable way for actually quantity and gross weight.

Contact us:
350mm Diamond Concrete Saw Blades , Laser Loop Diamond Asphalt Cutting Blade
