700mm Diamond Cutting Saw Blade with Sharp Segments for Reinforced Concrete
700mm Diamond Cutting Saw Blade with Sharp Segments for Reinforced Concrete
Specifications
Brand Name :
Johnson Tools
Model Number :
700mm
Certification :
SGS, GB
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per year
Delivery Time :
Around 15-35days
Packaging Details :
White box, colored package
Type :
Diamond blades
Manufacturing Process :
Laser welding
Inner hole :
25.4mm, 50mm as your request
Segment thickness :
5mm
Segment height :
10/12/15mm
Cutting :
Reinforced Concrete
Description

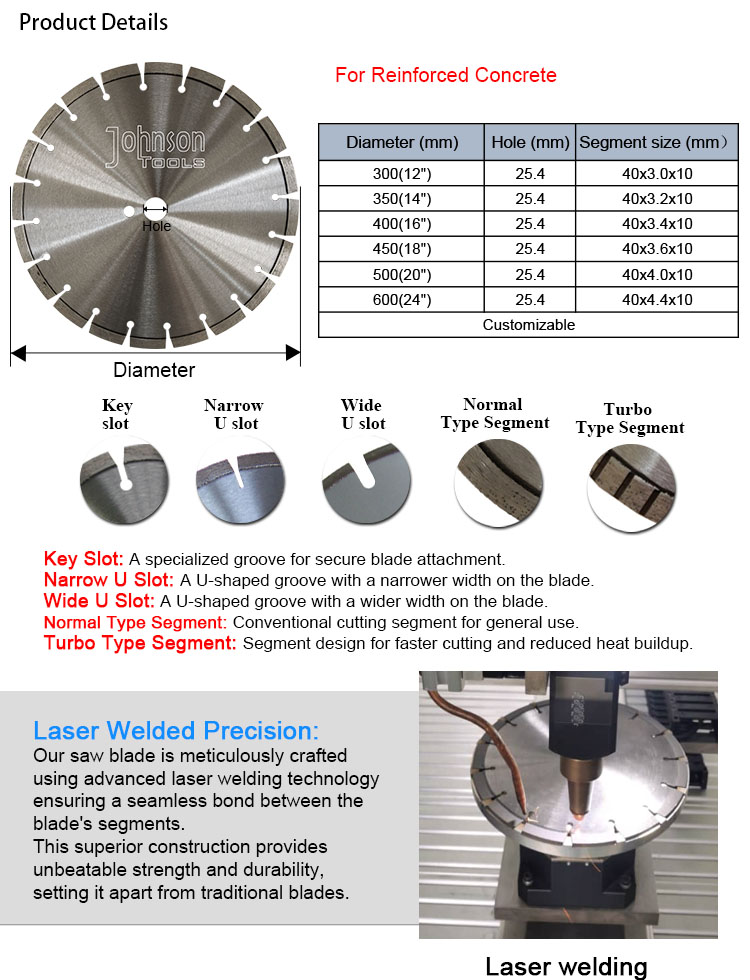

1. Specification of 700mm Diamond Cutting Saw Blade with Sharp Segments for Reinforced Concrete

Diameter:700mm
Segment thickness:5.0mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
28" 700 40 5.0 10 40
28" 700 40 5.0 12 40
28" 700 40 5.0 15 40


Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42

Laser mark: size,direction arrow,cutting material, logo as you request

700mm Diamond Cutting Saw Blade with Sharp Segments for Reinforced Concrete

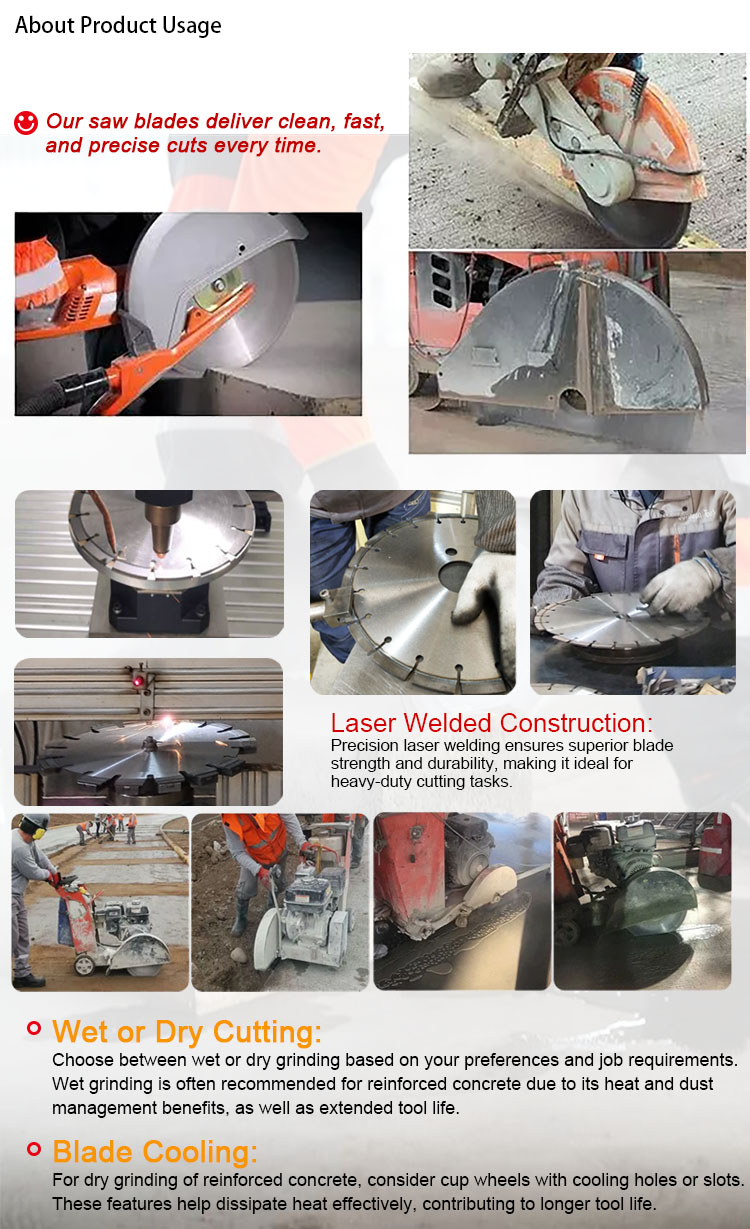

Usage: hollow core slabs for floors and walls, power lines and railways,construction industry,prestressed concrete elements

2. Description of 700mm Diamond Cutting Saw Blade with Sharp Segments for Reinforced Concrete

700mm diamond concrete saw blades is mainly used for the situations which contained reinforced concrete, like cutting new and old road expansion joints and bridge parapet ripper dressing.

Design different segment formula for different power machines, different hardness, different wear resistance, etc. Apply to different construction materials cutting.

Well exported to Australia and Asia, Europe, America, Africa, market.

3. Packing and Shipping

Each 28" laser saw blade is packed in white box, then 5pcs put in an export standard carton, gross weight per carton is limited within 60kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.

4. Our Factory

Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China’s stone and construction industries.

Johnson Tools people sincerely looking forward to serving you in the near future!

Let's work together to make the business better and better.
