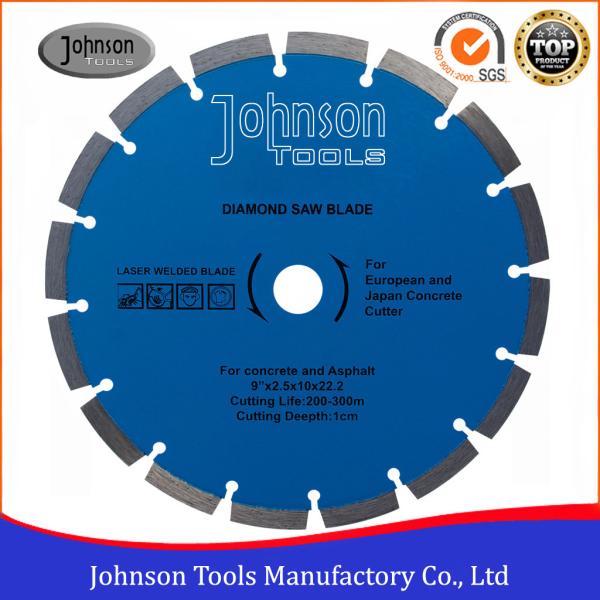

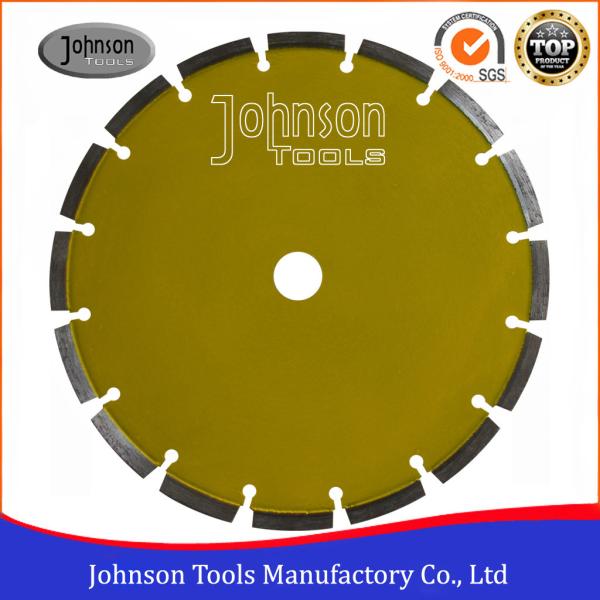

230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade
230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade
230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade
230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade
230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade
230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade
230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade
230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade
Specifications
Brand Name :
Johnson Tools
Model Number :
230mm
Certification :
SGS, GB
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiate
Payment Terms :
Western Union, L/C, T/T，PayPal
Supply Ability :
1000pcs per month
Delivery Time :
15-35days
Packaging Details :
white or colored package
Outer Diameter :
230mm
Center hole :
16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
Segment thickness :
2.6mm
Segment height :
7/10/12mm
Description

1. Description of 230mm Laser Diamond Circular Saw Blade for Reinforced Concrete Cutting

9" Laser welded Diamond Blade designed for angle grinder. Wet or dry cutting for reinforced concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers and so on.

Diamond saw blade has well exported to Europe. 230mm laser saw blade for reinforced concrete,segment spec: 37x2.6x10mm

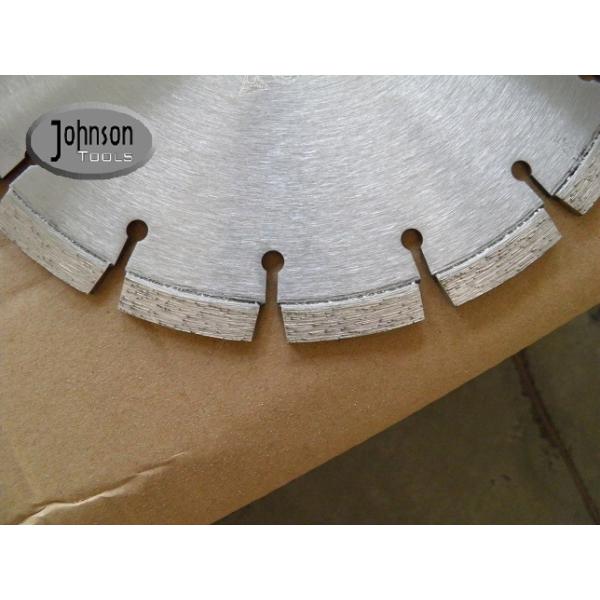

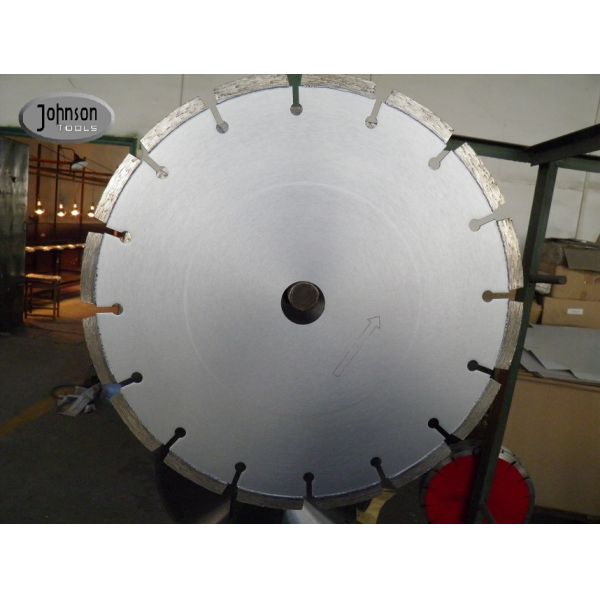

230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade

230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade

2. Specification information of 230mm Laser Diamond Circular Saw Blade for Reinforced Concrete Cutting

Diameter:230mm
Segment thickness:2.6mm
Segment height:7/10/12mm
Inner hole:16/20mm, 22.23mm, 25.4mm, 50mm or as your request

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
9" 230 37 2.6 7 16
9" 230 37 2.6 10 16
9" 230 37 2.6 12 16


Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46

Outer Diameter 230mm
Segment Size 37x2.6x10mm
Center Hole 22.23mm
Technology laser welding

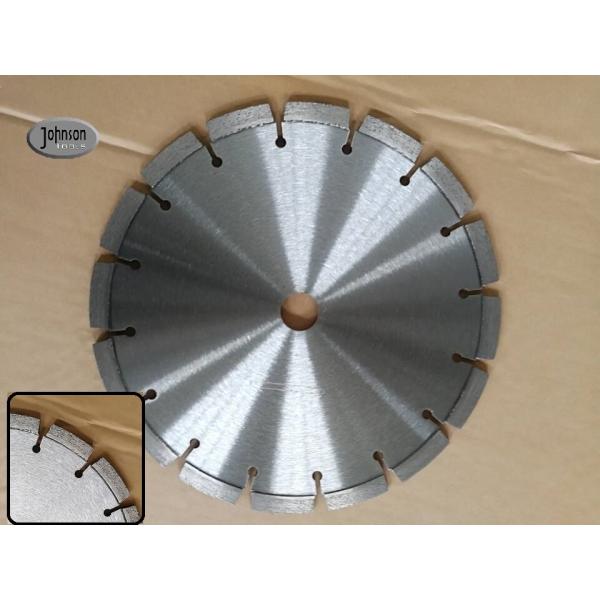

230mm Laser Diamond Circular Saw Blade , 9 Inch Diamond Blade

3.Feature of 230mm Laser Diamond Circular Saw Blade for Reinforced Concrete Cutting

1) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.


2) High precision and speed for cutting reinforced concrete

4. Packing and Shipping

Each 9" laser saw blade is packed in white box, then 25pcs put in an export standard carton, gross weight per carton is limited within 17-20kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
