Specifications
Brand Name :
Johnson Tools
Model Number :
105mm
Certification :
SGS, GB
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiate
Payment Terms :
Western Union, L/C, T/T,PayPal
Supply Ability :
1000pcs per month
Delivery Time :
15-35days
Packaging Details :
white or colored package
Outer Diameter :
105mm
Center hole :
25.4mm, 50mm as your request
Segment thickness :
5mm
Segment height :
10/12/15mm
Other size :
4"/4.5"/5"/6"/7"/8"/9"/10"/12"/14"/16"/18"/20"/24"/26"/28"/30"
Description

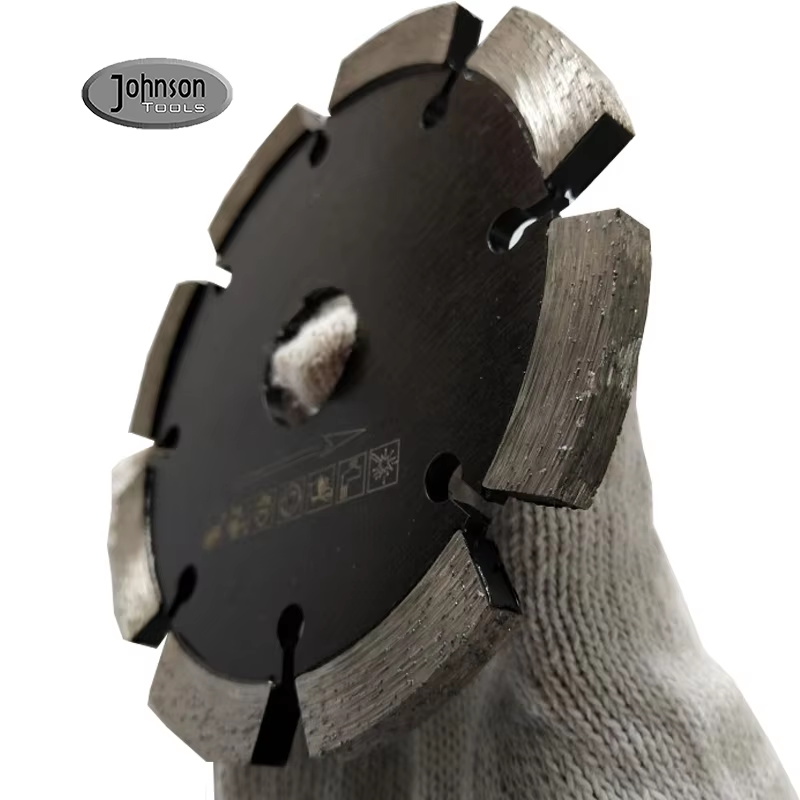

1. Description of 105mm Laser Concrete Cutting Saw Blades for Reinforced Concrete

Diamond concrete saw blade is the professional diamond tools which installed on handheld power saws, walk behind concrete saws, road cutting machine for cutting reinforced concrete structures, road construction. It has a good cutting ability, static non-destructive, high efficiency, no construction dust and other characteristics.

At present, our 4" diamond concrete saw blades are well exported to USA, UK, Peru, Mexico, Sweden, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc. Quality is well accepted by the customers.

2. Specification information of 105mm Laser Concrete Cutting Saw Blades for Reinforced Concrete

Diameter:105mm
Segment thickness:2.2mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8


Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46

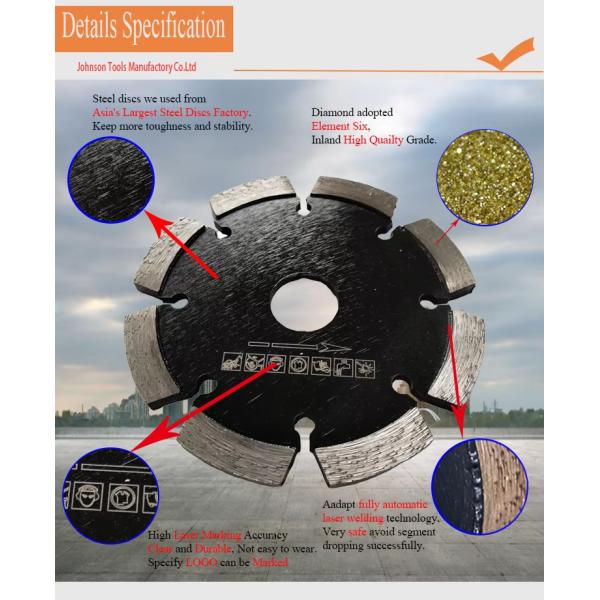

3.Products Advantages

1.The steel disc is purchased from one of the best base manufacturers in China. Segment is produced by our own factory, which has mature laser welding technology.

2.Quality control for each product, such as the segment welding strength, hardness, packing way and marking style. We can make custom as you require. Screen printing, laser marking or logo stickers on the saw blades you can choose.

3. Accept sample order to have a test.

4. Products Test

Laser diamond saw blade and silver saw blade in our factory, all use spanner to test segments welding strength before shipment.

105mm Laser Concrete Cutting Saw Blades for Reinforced Concrete

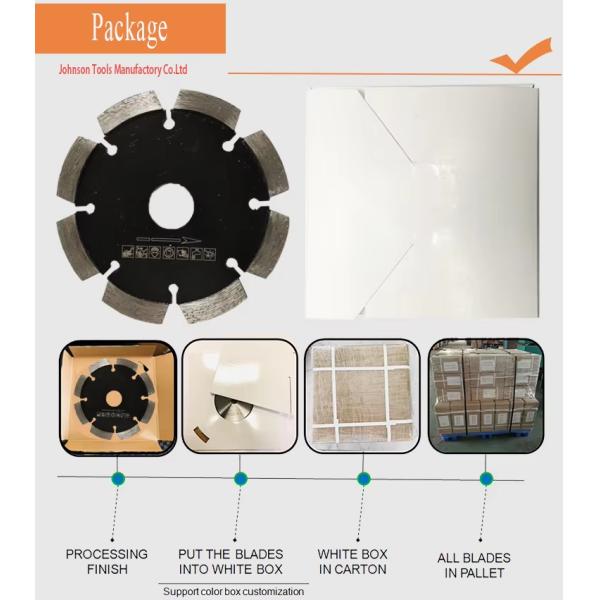

5. Packing and Shipping

Each laser saw blade is packed in white box, then 100pcs put in an export standard carton, gross weight per carton is limited within 13kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
