Specifications
Brand Name :
Johnson Tools
Model Number :
350mm
Certification :
SGS, GB
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100000pcs per year
Delivery Time :
Around 15-35days
Packaging Details :
White box
Product Name :
Diamond Circular Saw Blade
Manufacturing Process :
Laser Welded
Outer Diameter :
14inch
Center Hole :
25.4mm or as your request
Usage :
Cutting Reinforced Concrete
Package :
Carton
HS Code :
82023910
Description

1. Description of 350mm Diamond Saw Blade for Reinforced Concrete Cutting

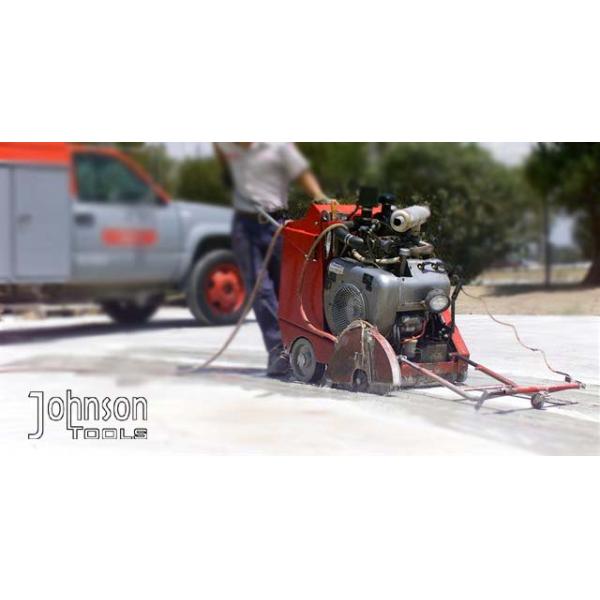

Diamond concrete saw blade is the professional diamond tools which installed on handheld power saws, walk behind concrete saws, road cutting machine for cutting reinforced concrete structures, road construction. It has a good cutting ability, static non-destructive, high efficiency, no construction dust and other characteristics.

At present, our 14" diamond concrete saw blades are well exported to USA, UK, Peru, Mexico, Sweden, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc. Quality is well accepted by the customers.


2. Feature of 350mm Diamond Saw Blade for Reinforced Concrete Cutting
1) High precision and speed for cutting reinforced concrete
2) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.

3. Specification of 350mm Diamond Saw Blade for Reinforced Concrete Cutting
Diameter:350mm
Segment thickness:3.2mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
14" 350 40 3.2 10 24
14" 350 40 3.2 12 24
14" 350 40 3.2 15 24


Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46


4. Packing and Shipping

Each 14" laser saw blade is packed in white box, then 10pcs put in an export standard carton, gross weight per carton is limited within 20kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
