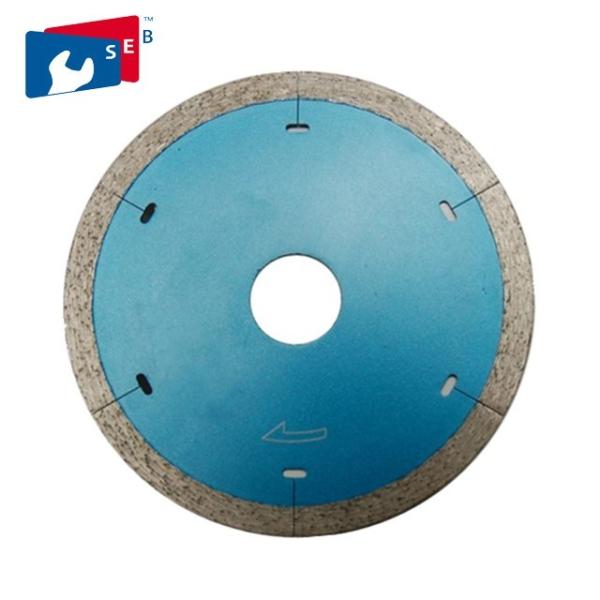

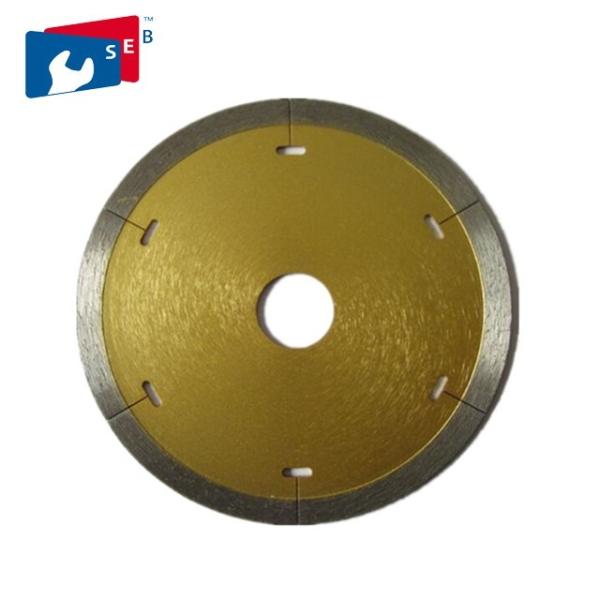

Diamond Circular Cutting Saw Blade for Cutting Tile with Continuous Rim
Diamond Circular Cutting Saw Blade for Cutting Tile with Continuous Rim
Diamond Circular Cutting Saw Blade for Cutting Tile with Continuous Rim
Diamond Circular Cutting Saw Blade for Cutting Tile with Continuous Rim
Specifications
Brand Name :
SEB
Model Number :
SEB-201923
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pc/month
Delivery Time :
35 days after deposit payment
Packaging Details :
1pc per plastic box
Outer size :
4''-20''
Inner hole :
5/8'', 7/8'', 1'', 11/5'',2''
Main market :
America, Asia, Australia, Europe, etc.
Style :
continuous rim
Segment height :
5-15mm
Customized :
yes
Description

Diamond Circular Cutting Saw Blade for Cutting Tile with Continuous Rim

Specification:

A diamond blade is a saw blade which has diamonds fixed on its edge for cutting hard or abrasive materials. There are many types of diamond blade, and they have many uses, including cutting stone, concrete, asphalt, bricks, coal balls, glass, and ceramics in the construction industry; cutting semiconductor materials in the IT industry; and cutting gemstones, including diamonds, in the gem industry.

Product: diamond cutting saw blade for tile

Continuous Rim Diamond Blade
Application:Used for cutting tile, porcelain with WET cutting.
Diameter (D) Bore Segment Height Segment Thickness
Inch MM Inch MM
4" 105 5/8" 7/8" 16/20/22.23 7/10 1.8
4.3" 110 5/8" 7/8" 16/20/22.23 7/10 1.8
4.5" 115 7/8" 22.23 7/10 1.9
5" 125 7/8" 22.23 7/10 1.9
6" 150 7/8" 22.23 7/10 2
7" 180 7/8"/1 22.23/25.4 7/10 2.2
8" 200 7/8"/1 22.23/25.4 7/10 2.4
9" 230 7/8"/1 22.23/25.4 7/10 2.4
10" 250 7/8"/1-1/5"/2" 22.23/25.4/30/50 7/10 3
12" 300 7/8"/1-1/5"/2" 22.23/25.4/30/50 7/10 3.2
14" 350 7/8"/1-1/5"/2" 22.23/25.4/30/50 7/10 3.2
16" 400 7/8"/1-1/5"/2" 22.23/25.4/30/50 7/10 3.4


Speed:

Rotate speed of every model is not allowed to exceed 80m/s. Here some sizes for your reference:

Diameter(inch) Diameter(mm) Rotate speed
4” 105 14500
4.3” 110 13500
4.5” 115 13200
5” 125 12200
6” 150 10000
7” 180 8500
8” 200 7600
9” 230 6600
10” 250 6100
12” 300 5000

Feature:

1. To improve the cutting edge, chipping and other problems for ceramic tile cutting;
2. The blade is smooth and has high cutting accuracy;
3. Good abrasion resistance, abrasion resistance makes long service life;
4. Base body heat resistance, low temperature resistance, good toughness, high tensile strength, shock resistance and flexural strength.

Packaging and delivery:


Plastic bag/blister card with outer white box/color box. Other required package, you can ask for our sales.

Delivery:

1.By courier, like DHL, UPS, FEDEX, TNT etc. It is door to door Express, usually 3-4 days. Suitable for samples.

2.by air, normally 5-7 days to arrive.

3.by sea, usually 15-30 days. It's suitable for place orders in bulk.

Port:

Shanghai/Ningbo

Diamond Circular Cutting Saw Blade for Cutting Tile with Continuous Rim
