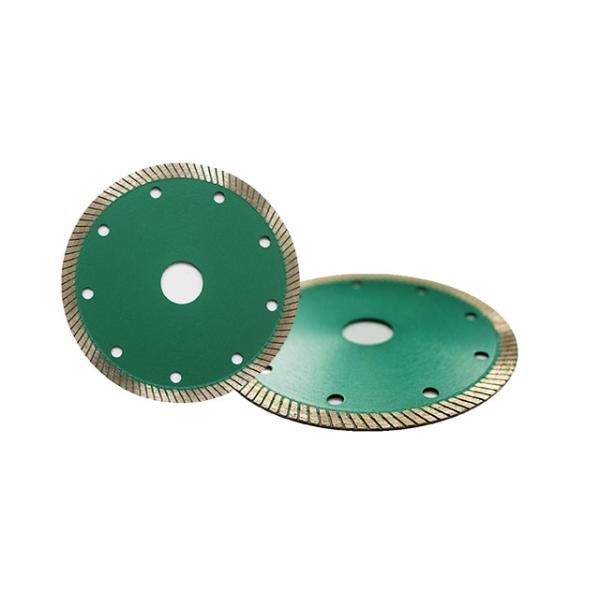

10 inch Diamond Saw Blade for Cutting Ceramic Tile with Grinding Function
10 inch Diamond Saw Blade for Cutting Ceramic Tile with Grinding Function
Specifications
Brand Name :
SEB
Model Number :
SEB-201906
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pc/month
Delivery Time :
35 days after deposit payment
Packaging Details :
1pc per plastic box
Outer size :
4''-20''
Inner hole :
5/8'', 7/8'', 1'', 11/5'',2''
Body material :
65Mn, 30Crmo, 50Mn2V, 75Cr1
Blade material :
diamond
Application :
for cutting and grinding tile
Body thickness :
0.3-3.5mm
Description

10 inch Diamond Saw Blade for Cutting Ceramic Tile with Grinding Function

Specification:

200 -800 mm Granite Saw Blade dimension
Diameter Dimension of Segment No.of teeth
Inch mm length Thickness Height
10" 250 40 2.8 12/15/20 18
12" 300 40 3 12/15/20 21
14" 350 40 3.2 12/15/20 24
16" 400 40 3.4 12/15/20 28
18" 450 40 4 12/15/20 32
20" 500 40 4.2 12/15/20 36
24" 600 40 4.6 12/15/20 42
28" 700 40 5.6 12/15/20 42
32" 800 40 5.6 12/15/20 46


Craft: Sintering

A wholly sintered diamond blade is made by putting the steel core, together with the diamonds and the metal bond materials, into a mold and then sintering it in a sintering furnace equipment. Consequently, the diameter of wholly sintered diamond blades is not very large, normally not more than 400 millimetres (16 in).

If you need larger size, we have welded craft to meet your requirements.

Cutting Methods:

Many blades are designed to operate either wet or dry. However, diamond tools and blades work better when wet, and dry cutting should be limited to situations in which water cannot or should not be used. Water will prevent the blade from overheating, greatly reduce the amount of harmful dust created by cutting, remove the slurry from the cut, and extend the life of the blade, since diamond is unable to withstand the forces involved at the elevated temperatures involved in dry cutting ceramic and abrasive materials, and will be subject to rapid tool wear and possible failure.

If you want continuous, wet cutting is needed, however turbo saw blade, wet or dry cutting is OK, but wet cutting will work better.

Packaging:

Normally, we offer plastic bag + white box. If your quantities can reach 1000pcs, color box is OK. Other package such as blister card, corrugated box, PVC bag, paper box required, please feel free to contact us!

Specification Pcs/Carton
115mm 100
125mm 100
150mm 50
180mm 50
200mm 50
230mm 25


Service:

1. Trial order is accepted. Samples request please contact our sales.
2. Customized service can be achieved. After checking and negotiating, we will try our best to offer you better experience.

10 inch Diamond Saw Blade for Cutting Ceramic Tile with Grinding Function
