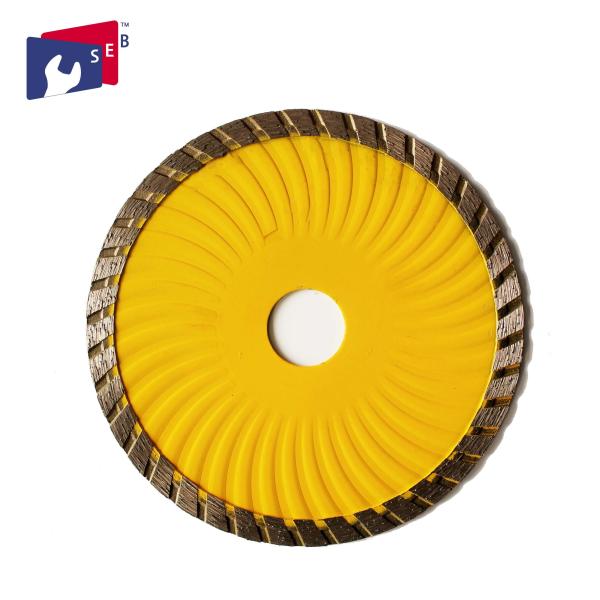

230mm Turbo Diamond Saw Blade with Fast Speed for Cutting Marble
230mm Turbo Diamond Saw Blade with Fast Speed for Cutting Marble
230mm Turbo Diamond Saw Blade with Fast Speed for Cutting Marble
230mm Turbo Diamond Saw Blade with Fast Speed for Cutting Marble
Specifications
Brand Name :
SEB
Model Number :
SEB-201901
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pc/month
Delivery Time :
35 days after deposit payment
Packaging Details :
1pc per plastic box
Outer size :
4''-20''
Inner hole :
5/8'', 7/8'', 1'', 11/5'',2''
Body material :
65Mn, 30Crmo, 50Mn2V, 75Cr1
Blade material :
diamond
Craft :
sintered, welded
Feature :
durable
Description

230mm Turbo Diamond Saw Blade with Fast Speed for Cutting Marble

Description:

Diamond saw blade is a kind of cutting tool, widely used in cutting concrete, refractory material, stone, ceramics and other hard brittle materials.

Parameter : outer dia x inner dia x segement height x segement thickness

Size: 4''-20''diameter

Advantage: 1. without drop segment (low protection teeth).

2. fast, free, smooth cutting,no chipping

3. Reduce cutting friction a lot, improve slab flatness, save energy.

Specification:

Diameter (D) Bore Segment Height Segment Thickness
Inch MM Inch MM
4” 105 5/8” 7/8” 16/20/22.23 7/10/12 2
4.3” 110 5/8” 7/8” 16/20/22.23 7/10/12 2
4.5” 115 7/8” 22.23 7/10/12 2.2
5” 125 7/8” 22.23 7/10/12 2.3
6” 150 7/8” 22.23 7/10/12 2.2
7” 180 7/8”/1 22.23/25.4 7/10/12 2.4
8” 200 7/8”/1 22.23/25.4 7/10/12 2.6
9” 230 7/8”/1 22.23/25.4 7.5/10/12 2.8
10” 250 7/8”/11/5”/2” 22.23/25.4/30/50 7.5/10/12 3
12” 300 7/8”/11/5”/2” 22.23/25.4/30/50 8/10/12 3.2
14” 350 7/8”/11/5”/2” 22.23/25.4/30/50 8/10/12 3.4
16” 400 7/8”/11/5”/2” 22.23/25.4/30/50 8/10/12 3.6

Apart from these specifications, if you want to know more about prefessional information, there are other factors that should be considered when choosing a diamond blade for a particular application. These include the type (manufacturing method) of the blade, the availability of water in the cutting process, the horsepower of the saw, and the acceptable level of noise created by the saw. For example, if the horsepower of a saw machine is large, the diamond concentration of the diamond blade should be higher, or the bond should be harder. Higher diamond concentration will decrease the impact on each single diamond in working, while a harder bond will hold the diamonds more firmly.

Please feel free to contact us!

Services and FAQ:

We can provide free sample for your test. Process from the order to delivery is strictly controlled. If you want to make something special, please contact us to know more details.

Q:Are samples available for quality test?

A:Yes,pls let us know the product requested. Sample order is available.

Q:what is the advantage of your products?
A:We are professional manufacturer in this field with lots of years R&D and market research experience, we can provide competitive price and high quality products for you.
Q:Can you help me help me design or modified the products as we requested?
A:We have R&D capability and professional & efficient team, cutomized service and OEM/ODM are welcome. We will try our best to make it come true as long as you have a good idea.
Q:When does my order to ship?
A:30 days after payment. Please assure your quantities, we will give you accurate lead time.
