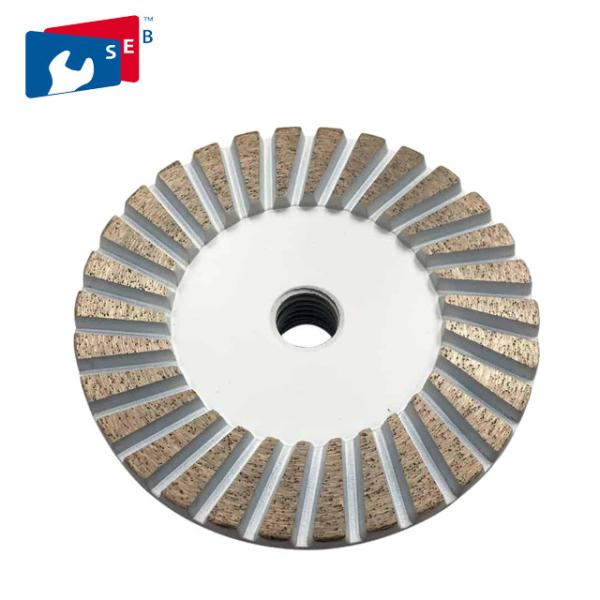

White Turbo Concrete Cup Wheel with Wet Grinding for Granite Marble
White Turbo Concrete Cup Wheel with Wet Grinding for Granite Marble
Specifications
Brand Name :
SEB
Model Number :
SEB-B201925
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs/month
Delivery Time :
35days
Packaging Details :
one piece per color box
Shape :
Cup-Shaped
Bond :
hard, medium, soft, etc.
Body material :
carbon steel
Abrasive :
Silicon Carbide + diamond
Quality :
European standard
Application :
for grinding granite, marble, concrete and other masonry materials
Main market :
West Europe, East Europe, South America, America, Middle East
Experience :
11-year export
Description

White Turbo Concrete Cup Wheel with Wet Grinding for Granite Marble

Description:

For aggressive material removal Large grinding segments with heat treated steel bodies help increase durability and wheel life

This grinding cup wheel diamond coating is great for any kind of masonry grinding, marble, tile, concrete and rock.

Diamond Cup wheel design is great for heavy-duty masonry materials removal.

Cup Wheels are designed to be used on small and large angle grinders. They are designed with an optimized cutting matrix.

The high diamond concentration and quality provides a faster cut rate, longer blade life and high performance.

Specification:

Application Diameter Segment Height (mm)

Segment

Thickness (mm)

 Segment No. Arbor (mm)

Single row diamond

grinding cup wheel

 105mm(4”) 5 7 8 M14,5/8”-11,22.23
115mm(4.5”) 5 7 9 M14,5/8”-11,22.23
125mm(5”) 5 7 10 M14,5/8”-11,22.23
150mm(6”) 5 7 12 M14,5/8”-11,22.23
180mm(7”) 5 7 14 M14,5/8”-11,22.23

Application Diameter Segment Height (mm)

Segment

Thickness(mm)

 Segment No.

Arbor

(mm)
Double row diamond grinding cup wheel 105mm(4”) 5 7 16 M14,5/8”-11,22.23
115mm(4.5”) 5 7 18 M14,5/8”-11,22.23
125mm(5”) 5 7 20 M14,5/8”-11,22.23
150mm(6”) 5 7 24 M14,5/8”-11,22.23
180mm(7”) 5 7 28 M14,5/8”-11,22.23

Application Diameter Segment Height (mm)

Segment

Width (mm)

 Segment No.

Arbor

(mm)
Turbo diamond grinding wheel 105mm(4”) 5 20 Turbo M14,5/8”-11,22.23
125mm(5”) 5 20 Turbo M14,5/8”-11,22.23

Service:

1. Just like other metal-bonded diamond tools, the diamond segments on diamond grinding cup wheels can have different bonds, different diamond grits, different diamond quality and different diamond concentrations to fit different uses. For example, if the material to be ground is hard, the bond should be softer, and if the material is relatively soft, the bond should be harder.
2. If you have specific requirements, please feel free to contact us. Much accurate information will be provided.
3. Samples are available.
