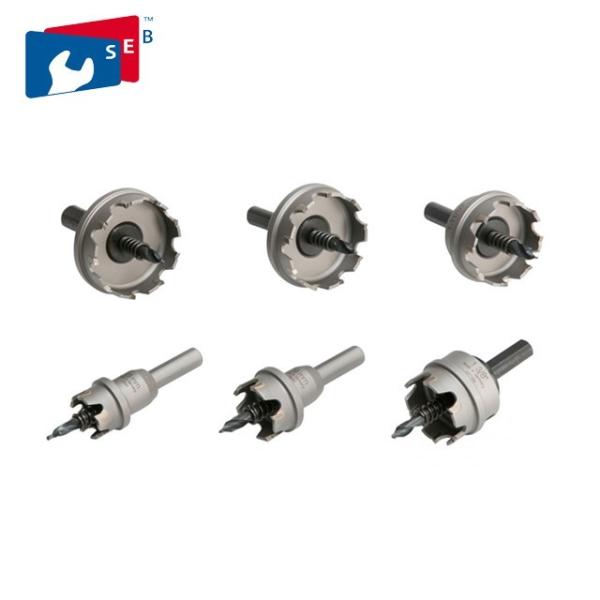

Metal Plate Drill TCT Hole Saw , Stainless Steel Hole Saw 14 - 150 Mm Diameter
Metal Plate Drill TCT Hole Saw , Stainless Steel Hole Saw 14 - 150 Mm Diameter
Specifications
Brand Name :
SEB
Model Number :
SEB-HJK008
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
100000pcs per month
Delivery Time :
Depends on order quantity
Packaging Details :
1pc/plastic box
Type :
TCT Cutter
Application :
Metal plate,stainless steel,aluminum,etc
Material :
Tungsten Carbide
Diameter :
14-150mm
Cutting Depth :
12mm or 25mm
Process :
Auto Welded Tip
Description

TCT Carbide Tipped Hole Saws Cutter For Metal Plate With Pilot Drill

Description:

Tungsten Carbide Tipped Stainless Steel Hole Saws are ideal for cutting high alloy and stainless steels, non ferrous light metals and reinforced fabrics. The tough tungsten carbide tipped teeth have a positive cutting angle which provides fast and efficient removal of chips and swarf.

Features:

Ideal for production cutting.
Tungsten carbide tipped teeth provide superb product life and cutting performance.
High cutting accuracy.
Complete assembly - there is no requirement to purchase a separate arbor and pilot drill.
Safety stop collar at the base of the hole saw.
Replacement pilot drills are available.

Important Safety Recommendations:

Should only be used to cut flat surfaces.
We recommended saws above 50mm diameter should only be used on pillar drills. Smaller diameters can be used with both hand held drills and pillar drills.
Safety glasses and gloves are recommended.
Do not push too hard, to avoid an impact of the TCT teeth. Once the teeth touch the material, drill with slight steady pressure.

Specification:

Product Name TCT Carbide Tipped Hole Saws Cutter For Metal Plate With Pilot Drill
Brand SEB or Customized
Body Material Carbon Steel with Heat Treatment
Teeth Material Tungsten Carbide Tip
Cutting Depth 12mm or 25mm
Shank Type Tri-Flat Shank
Surface Finish Sand Blasted
Diameter 14mm-150mm
Features 1.Cuts steel plate, stainless steel, cast iron, aluminum, copper, brass, fiberglass, hard composites
2.Tungsten carbide teeth provide excellent wear and heat resistance. positive cutting angle which provides fast and efficient removal of chips and swarf.
3.3-Ply tooth grind on each tooth delivers maximum performance and makes the saw much more robust than 2-Ply equivalents.
4.Split tip pilot drill prevents damage by gradually guiding cutter to material; no walking.
5.Ejector spring for easy removal of waste slug.
6.Three flat shank provides better chuck grip and reduces slippage.
7.Flexible, convenient and safe to use, suitable for electric hand drill, bench drill.
