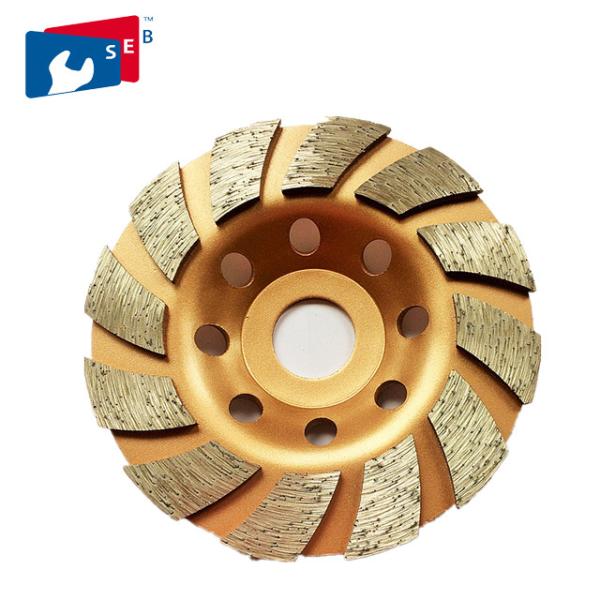

125mm Turbo Diamond Masonry Grinding Cup Wheel with Alloy Bond for General Purpose
125mm Turbo Diamond Masonry Grinding Cup Wheel with Alloy Bond for General Purpose
Specifications
Brand Name :
SEB
Model Number :
SEB-B201917
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs/month
Delivery Time :
35days
Packaging Details :
one piece per color box
Shape :
Cup-Shaped
Bond :
hard, medium, soft, etc.
Body material :
carbon steel
Abrasive :
Silicon Carbide + diamond
Grits :
#6, #16, #30, #50, #100, #200, #400
Segment width :
5mm
Packaging :
inner bag + outer box plastic/blister bag + color box
Service :
OEM ODM
Description

125mm Turbo Diamond Masonry Grinding Cup Wheel with Alloy Bond for General Purpose

Description:

The diamond grinding wheel is one of the diamond tools. It is mainly used for the surface grinding of various refractory materials. This product adopts a specially designed tapered mounting hole structure, which is easy to installed. It has advantages of good processing flatness, high grinding efficiency and long life expectancy etc. Conveniently, it is suitable for all domestic and imported grinding equipment.

Specification:

Application Diameter Segment Height (mm)

Segment

Thickness (mm)

 Segment No. Arbor (mm)

Single row diamond

grinding cup wheel

 105mm(4”) 5 7 8 M14,5/8”-11,22.23
115mm(4.5”) 5 7 9 M14,5/8”-11,22.23
125mm(5”) 5 7 10 M14,5/8”-11,22.23
150mm(6”) 5 7 12 M14,5/8”-11,22.23
180mm(7”) 5 7 14 M14,5/8”-11,22.23

Application Diameter Segment Height (mm)

Segment

Thickness(mm)

 Segment No.

Arbor

(mm)
Double row diamond grinding cup wheel 105mm(4”) 5 7 16 M14,5/8”-11,22.23
115mm(4.5”) 5 7 18 M14,5/8”-11,22.23
125mm(5”) 5 7 20 M14,5/8”-11,22.23
150mm(6”) 5 7 24 M14,5/8”-11,22.23
180mm(7”) 5 7 28 M14,5/8”-11,22.23

Application Diameter Segment Height (mm)

Segment

Width (mm)

 Segment No.

Arbor

(mm)
Turbo diamond grinding wheel 105mm(4”) 5 20 Turbo M14,5/8”-11,22.23
125mm(5”) 5 20 Turbo M14,5/8”-11,22.23


Service:

1. Professional with diamond tool and power tools, strictly quality control.

2. Huge production capability, offer you items in time.

3. Make sure the quality for all items.

4. Free samples are available.

FAQ:

1.Q: Are samples available for quality test? Is it free or cost?

A: Yes,pls let us know the model you requested. Sample order is available and we can offer reasonable FREE samples according to your requirements.

2.Q: How can we pay the samples freight?

A .If you have Export account , we can ship the sample by your express account with freight collect .

B . If you do not have these Express account, you can send the shipping cost to us by T/T , ther we will arrange delivery the sample after receive your sample shipping cost .

3.Q: Which Express company you send? How many days we can receive?

A: DHL, TNT, Fedex, UPS, one of them is OK. It will take about 3-5 days after delivering.
