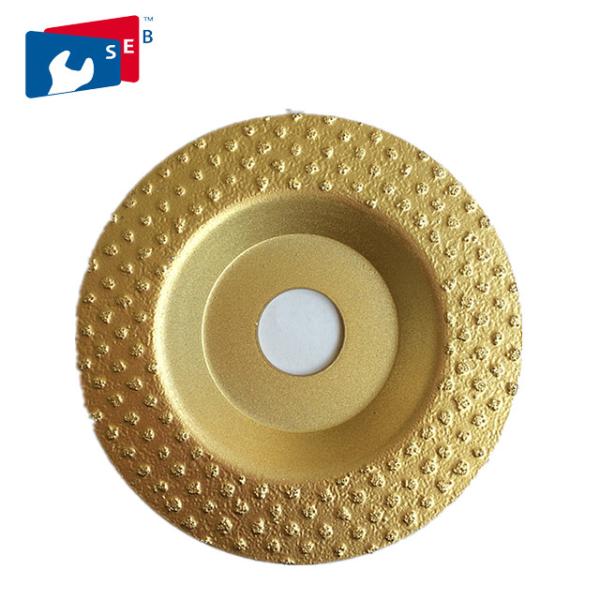

4 inch Diamond Masonry Grinding Wheel with Cup Shape for Concrete Marble
4 inch Diamond Masonry Grinding Wheel with Cup Shape for Concrete Marble
Specifications
Brand Name :
SEB
Model Number :
SEB-B201919
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs/month
Delivery Time :
35days
Packaging Details :
one piece per color box
Shape :
Cup-Shaped
Bond :
hard, medium, soft, etc.
Body material :
carbon steel
Abrasive :
Silicon Carbide + diamond
Segment height :
7/10/20/24/30mm
Craft :
sintered or welded
Quality :
European standard
Application :
for grinding granite, marble, concrete and other masonry materials
Description

4 inch Diamond Masonry Grinding Wheel with Cup Shape for Concrete Marble

Description:

Size: 100-230mm

Hole diameter: 20, 22.23,25.4mm

Bond: hard, midium, soft.

Body material: carbon steel

Abrasive: Silicon Carbide + diamond

Type: normal

Craft: sintered or welded

Specification:

Application Diameter Segment Height (mm)

Segment

Thickness (mm)

 Segment No. Arbor (mm)

Single row diamond

grinding cup wheel

 105mm(4”) 5 7 8 M14,5/8”-11,22.23
115mm(4.5”) 5 7 9 M14,5/8”-11,22.23
125mm(5”) 5 7 10 M14,5/8”-11,22.23
150mm(6”) 5 7 12 M14,5/8”-11,22.23
180mm(7”) 5 7 14 M14,5/8”-11,22.23

Application Diameter Segment Height (mm)

Segment

Thickness(mm)

 Segment No.

Arbor

(mm)
Double row diamond grinding cup wheel 105mm(4”) 5 7 16 M14,5/8”-11,22.23
115mm(4.5”) 5 7 18 M14,5/8”-11,22.23
125mm(5”) 5 7 20 M14,5/8”-11,22.23
150mm(6”) 5 7 24 M14,5/8”-11,22.23
180mm(7”) 5 7 28 M14,5/8”-11,22.23

Application Diameter Segment Height (mm)

Segment

Width (mm)

 Segment No.

Arbor

(mm)
Turbo diamond grinding wheel 105mm(4”) 5 20 Turbo M14,5/8”-11,22.23
125mm(5”) 5 20 Turbo M14,5/8”-11,22.23


Why choose us:

1.Choose high quality material to provide more stable product to our customers

2.We promote product value by more smooth section

3.We accelerate production efficiency by sharp saw-blades and longer lifespan

4.The company complete quality control system, solving customer’s concern

FAQ:

1.Q: Can you accept customized service?

A: Of course yes. Color and packaging can be made based on your target.


2.Q: When does my formal order to ship?
A: 30 days after payment. Please assure your quantities, we will give you accurate lead time.

3.Q: How about your quality?

A: We have three level of quality: top, middle and normal, you will have different choice.
