Specifications
Warranty :
None
Customized support :
OEM, ODM, OBM
Place of Origin :
Jiangxi, China
Brand Name :
Linsing
Model Number :
G86527
Application :
Mix Cut Granite Stone
Raw material :
Metal powder+Diamond
Quality :
Fast cutting
Keywords :
Sandstone Granite Basalt segment
Main Market :
South Asia.Vietnam.India.Indonesia.Brazil
Logo :
Linsing
Advantage :
Long Lifespan And Fast cutting
Size :
40*6*15mm
Shape :
ARC shape
Structure :
Layer or sandwich
MOQ :
200 pieces
Price :
$1.20/pieces 200-4999 pieces
Description
Product Description

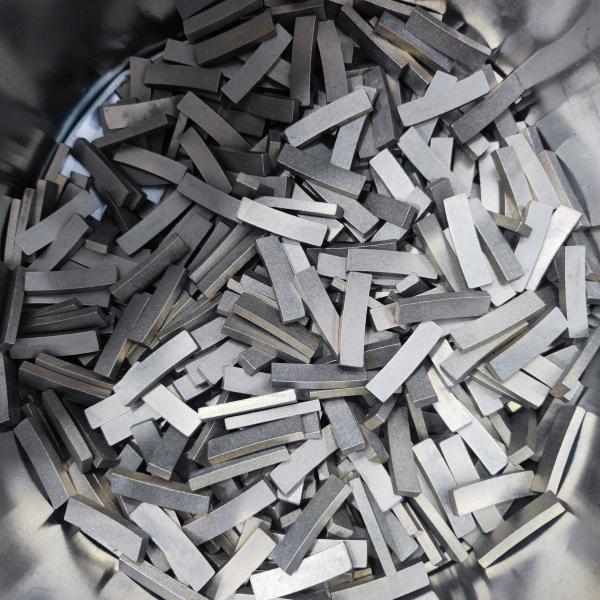

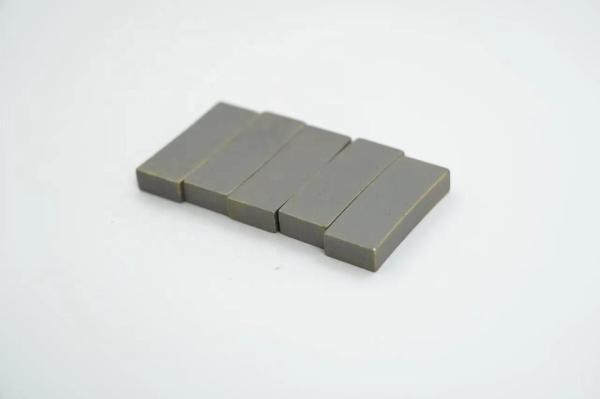

Diamond Segment For Granite Cutting
Granite cutting segment used for cutting granite. Linxing's granite cutting segments has the characteristics of wide variety, strong pertinence, long life, high sharpness and high cost performance.

Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.

Blade Diameter(inch/mm)

Steel Core Thickness(mm)

Segment Specification(mm)

Segment No.(pcs)

Φ12”/300

2.2

40x3.2x10(12,15, 20)

21

Φ14”/350

2.2/2.4

40x3.2x10(12,15, 20)

24

Φ16”/400

2.6

40x3.6x10(12,15, 20)

28

Φ18”/450

2.8/3.0

40x4x10(12,15, 20)

32

Φ20”/500

3.0/3.2

40x4.2x10(12,15, 20)

36

Φ24”/600

3.6/3.8

40x5x10(12,15, 20)

42

Φ28”/700

4

40x5.2x10(12,15, 20)

50

Φ32”/800

4.5

40x6x10(12,15, 20)

46

Φ36”/900

5.0

24x7.0/6.2x15(13,20)

64

Φ40”/1000

5.0

24x7.0/6.2x15(13,20)

70

Φ48”/1200

5.5

24x7.4/6.6x15(13,20)

80

Φ52”/1300

6.0

24x8.0/7.2x15(13,20)

88

Φ56”/1400

6.5

24x8.4/7.6x15(13,20)

92

Φ64”/1600

7.2

24x9.2/8.4x15(13,20)

108

Φ72”/1800

7.5

24x10.0/9.2x15(13,20)

120

Φ80”/2000

8.0

24x10.6/9.8x15(13,20)

128

Φ88”/2200

8.0/9.0

24x11.0/10.2x15(13,20)

132

Φ100”/2500

9.0

24x11.4/10.6x15(13,20)

140

Φ120”/3000

9.5

24x12.4/11.6x15(13,20)

160

Φ140”/3500

9.5

24x12.4/11.6x15(13,20)

180

Other specifications are available upon request.
