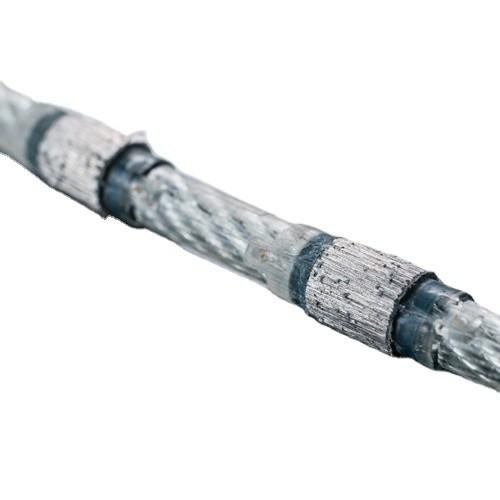

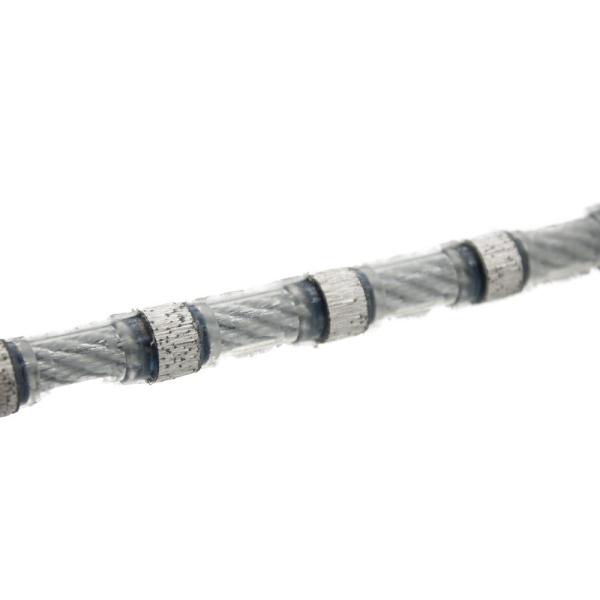

Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Diamond Wire Saw For Profiling Plastic Injection Of The Connection Type D11.0*37 Or 40m
Specifications
Warranty :
none
Customized support :
OEM, ODM, OBM
Place of Origin :
Jiangxi, China
Brand Name :
Linsing
Model Number :
Dimaond Wire saw
Product name :
Diamond Wire Saw
Application :
Squaring
Material :
Diamond + Metal Powder
Grade :
A+ Grade
Size :
D11.0*37 Or 40m
MOQ :
30 Meters
Diameter :
D11.0mm
Brand :
Linsing
Cutting material :
Stone Squaring

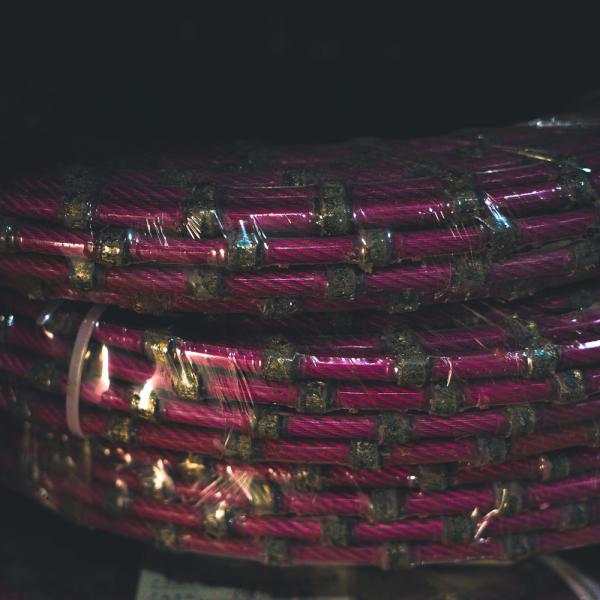

Packing :
Carton Box And Wooden Frame
Packaging Details :
The inner packaging is plastic film and the outer packaging is carton. If the customer orders a large quantity, it will be packed in wooden cases and wooden frames.
Supply Ability :
10000 Meter/Meters per Day Diamond Wire Saw For Quarrying
MOQ :
100 pieces
Price :
$26.00/pieces 100-999 pieces
Description

Product feature:
1. Good sharpness and long life, low noise and eco-friendly.
2. Stable quality control for excellent cutting performance, high cost-effective.
3. Suitable for cutting all kind stone.
Product specification for granite:

Diameter

(mm)

Bead No.

(pcs/m)

Reinforcement

Usage

D11.0

40/37

Plastic/Plastic+Spring

Granite/Quartz

Squaring

Cutting

Material

Line

speed

(m/s)

Efficiency

(m²/h)

Life

(m²/m)

Class1-2

28-30

1.6-2.2

12-22

Class3-4

28-30

1.0-1.5

10-18

Class5

26-28

0.5-1.0

6-12

Product specification for marble/limestone:

Diameter

(mm)

Bead No.

(pcs/m)

Reinforcement

Usage

D11.0

40/37

Plastic/Plastic+Spring

Marble/Limestone

Squaring

Cutting

Material

Line speed

(m/s)

Efficiency

(m²/h)

Life

(m²/m)

Class1-2

30-40

2.0-3.0

20-50

Class3-4

28-31

1.5-2.0

14-35

Class5

26-30

1.0-1.5

8-20

Other specifications are available upon request
