Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape
Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape
Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape
Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape
Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape
Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape
Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape
Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape
Specifications
Brand Name :
PUFENG
Model Number :
pu0506
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100 pieces
Price :
USD 0.01~0.1 per piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000 pieces per day
Delivery Time :
3~10 work days
Packaging Details :
Standard carton package for export; Or as required.
Name :
Die-cutting Copper Foil Tape And Aluminium Foil Tape
Applicance :
EMI
carrier :
Copper or Aluminium
Process :
die cut according to drawing
Thickness :
Customized
long term temperature resistance :
180
Samples :
Free samples
Description

Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing

Product Cooper Foil Tape
Carrier Copper Foil
Adhesive Conductive Acrylic Adhesive
Carrier Thickness (mm) 0.025
Total Thickness (mm) 0.06 ± 0.005
Appearance Excellent, no oxidation
Initial Tack(Steel Ball) (#) 11
Resistance(ohm/in2) <0.05
Holding Power(1kg/inch) ≥1140
180°Peeling Strength >8 N/25.4mm
Application Temperature -20~120°C
Storage Condition 20°C, 65% RH
Use In the HVAC project, the joints of the composite insulation veneer and the joints at the joints and the water vapor seal.
Application Copper foil tape for a variety of transformers, mobile phones, computers, PDA, PDP, LED monitors, notebook computers, copiers and other electronic products within the electromagnetic shielding of the place.
Advantages Non-oxidation, antistatic, UV resistance, thermal insulation and strong adhesion.
EMI shielding, prevent body harm from electromagnetic wave.
Replace tracks on electrical & printed circuit boards.
Waterproof, cold and heat resistance.
Strong adhesion and easy die cutting.
Function Copper foil tape is using copper as backing, coated with conductive acrylic glue.
Excellent resistance to heat (dry air), at +260º C continuous and +260º C intermittent.Remains flexible at low temperatures of -40ºC.
Keep constant even at high temperatures.
Sample Free Sample


Die-cutting 3M VHB Adhesive Tapes:

Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape

Die-cutting 3M adhesive tapes + foam :

Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape

Die-cutting Heat Resistant adhesive tapes:

Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape

Die-cutting Tesa Tape:

Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape

Die-cutting Process:

Slitting ⇒ Die Cut

Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape

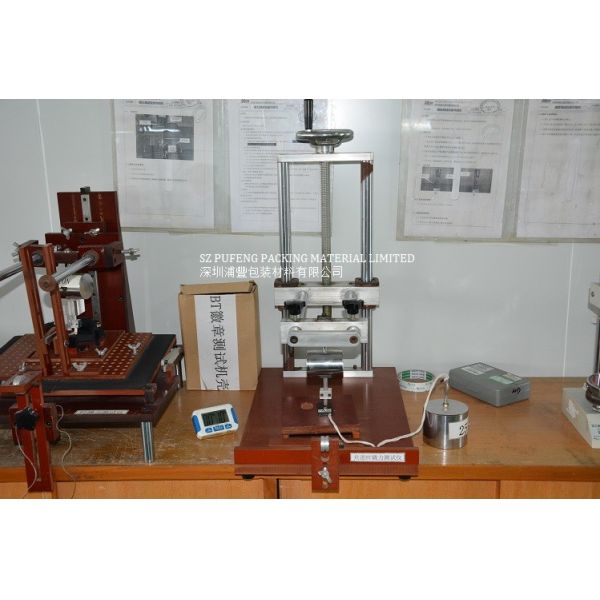

Workshop:

Antistatic Die Cut Adhesive Tape Conductive Copper Foil / Aluminium Foil Backing adhesive insulation tape

Our Services:

1. Your inquiry related to our product will be replied within 12 hours.

2. OEM or ODM projects are highly welcome.

3. We can die cut or design the products according to your requirements.

4. Perfect after-sale service offered,please contact us if you got question.

5. Packing as your request and promptly delivery

FAQ:

1) How to order from PUFENG?

Just send us email or call us.

2) Do you offer the free sample for testing?

Yes, we offer thee samples for free.

3) How to ship the order?

We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.

4) Can we trust the quality of product from PUFENG?

Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.

5) What payment PUFENG accepts?

For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.

6) How about the lead time of per order?

If the tape you order have stock, we can ship out within 1~3 days.

If die-cuts requested, the lead time shall be according to the quantity.
