Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
Specifications
Brand Name :
Tesa
Model Number :
60214
Certification :
Rohs
Place of Origin :
China
MOQ :
10
Price :
USD0.01-0.5
Payment Terms :
T/T
Supply Ability :
1000K Perday
Packaging Details :
carton packing
Base material :
Conductive foam
Total thickness :
300 µm
Release paper thickness :
120 µm
Colour :
Gray
Description

Tesa 60214 Gray Single-Sided Conductive Xyz Direction Self-Adhesive Foam Tape Die Cut Adhesive Tape

Product highlights

EMI shielding and grounding applications

Electrostatic release application

tesa® 60214 is a gray single-sided conductive self-adhesive foam tape. It is composed of highly compressible conductive foam substrate and conductive adhesive system.

tesa® 60214 Features:
Thickness: 300μm
Highly compressible foam substrate with low closing force and reliable recovery performance
High adherence to adhesive surface changes
Excellent electrical conductivity in xyz direction at high temperatures and high humidity
High adhesion in harsh environments
Excellent impact resistance and cushioning properties
Highly stable foam that is not easy to fall off particles

Product specification

Characteristic rating
Short-term high temperature resistance 200 °C
Surface resistance x-y direction 0.2 Ohm / square
Contact resistance z direction (initial) 0.03 Ohm / square inch
Release force easy
Steel surface bonding strength (after 14 days) 8.3 N/cm
Technical characteristics
Base material Conductive foam
Total thickness 300 µm
Release paper thickness 120 µm
Release paper type PE coated paper
Release paper color White/blue logo
Adhesive type Conductive acrylic acid
colour gray

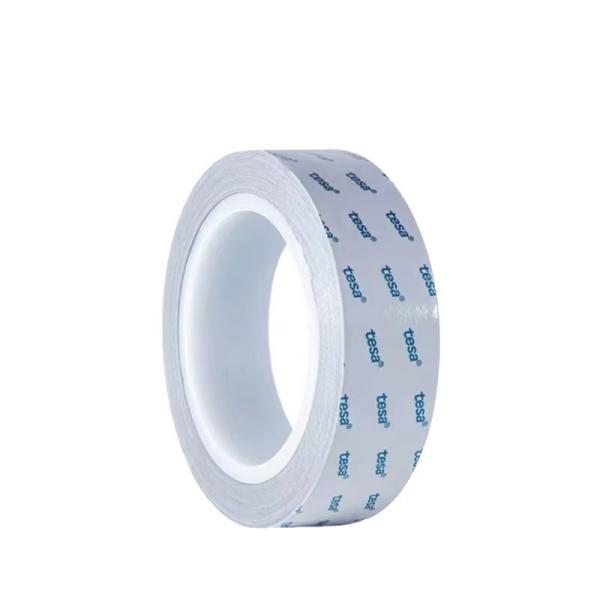

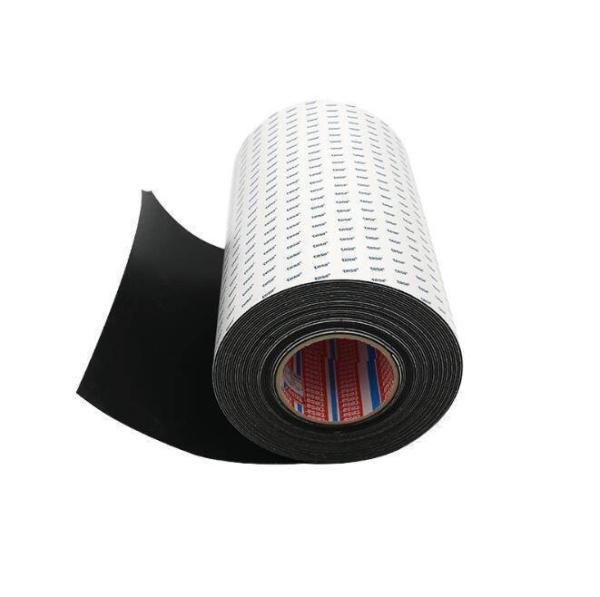

Product picture

Tesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die CutTesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die CutTesa 60214 Gray Single Sided Conductive Xyz Direction Self Adhesive Foam Tape Die Cut
