Roll Film Label Slitting Machine Turret Type
Roll Film Label Slitting Machine Turret Type
Specifications
Brand Name :
sunrise
Model Number :
XR-350
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
4000usd
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
30sets/month
Delivery Time :
15days
Packaging Details :
wooden box
speed :
120m.min
warranty :
one year
delivery time :
15 days
web width :
350mm
power :
2.0kw
rewind shaft :
1inch,1.5inch,3inch
Description

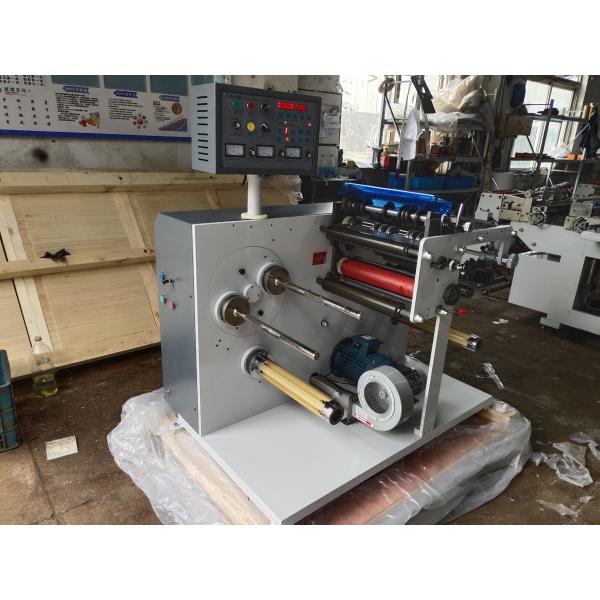

SR-350 Label Roll Slitting Machine,turret type Small slitting machine

Functional characteristics

SR-350 is automatic slitting machine, which is a matched machine with die cutting machine, it is suitable to slit narrow paper, it can automatic meter, set length, automatic stop, automatic web-guiding and so on functions. Whole machine is with compact structure,running fast,high efficiency,high accuracy,easy-operation,running stably etc features.

Technical parameters:

Max. Width SR-350mm SR-450mm
Max. Unwinding diameter 500mm 500mm
Max. rewinding diameter 500mm 500mm
Min. Slitting width 16mm 16mm
Max. Slitting width 340mm 440mm
Accuracy rate ±0.10mm ±0.10mm
Voltage 220v 220v
Main motor power 1.5kw 2kw
weight 600kg 700kg
Dimension 1200*800*1280mm 1300*900*1280mm

Features:

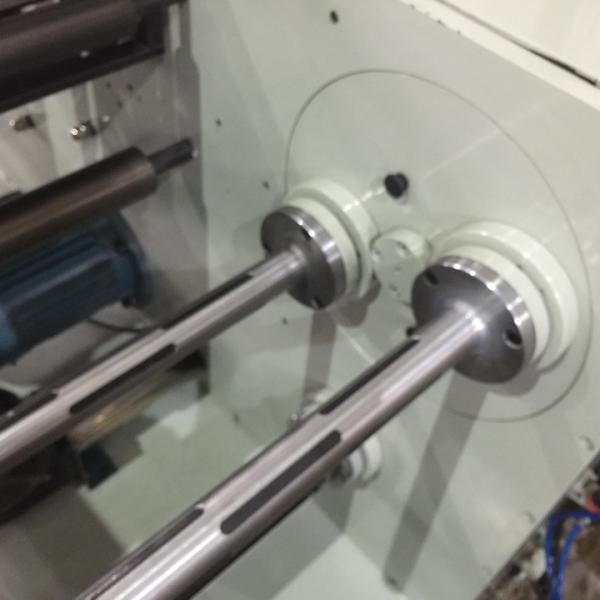

1. Turret shaft, and easy to change different size of rewind shaft

2. All shafts automatic inflate air

3. This standard machine with 3 magnetic tension controllers.

4. Machine with 2 sets of 1inch shafts,2 sets of 2inch shafts.

Main Parts:

NO. Parts Name Brand

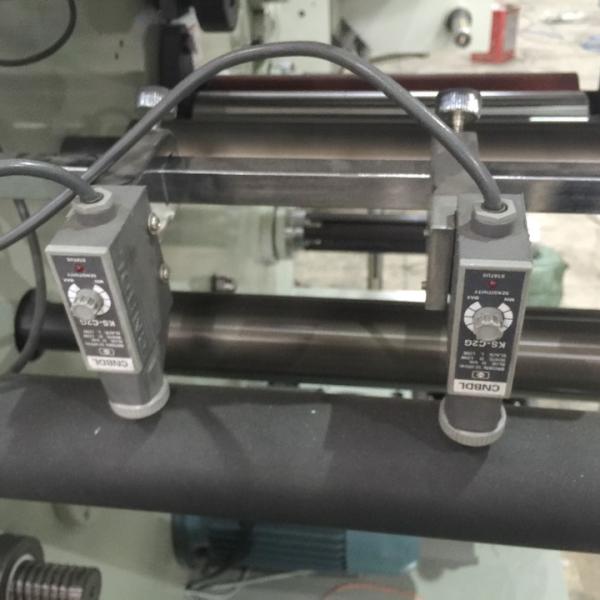

1 Web-guide eyes Baideli
2 Transducer TAIWAN SHILIN
3 counter sensor Germany-sick
4 Proximity Switch China
5 Power Switch French--Schneider
6 Relay China--Chnt
7 Buttons French--Schneider
8 A.C.Contactor China--Chnt
