Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
YONGSHI
Model Number :
YS-350A
Certification :
CE Certificate
Packaging Details :
wooden case
Supply Ability :
40 Set/Sets per Month
Price :
$10,000.00 - $12,500.00/sets
Type :
Other
Condition :
New
Application :
APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type :
Other
Packaging Material :
Paper
Automatic Grade :
Automatic
Driven Type :
Mechanical
Voltage :
220V/380v
Power :
4KW
Weight :
1700kg
Dimension(L*W*H) :
2900*1300*1450mm
After-sales Service Provided :
Engineers available to service machinery overseas
Product name :
Die Cutting Lable Machine
Usage :
label,sticker,trademark
Function :
label die cutting
speed :
220press/min
control system :
PLC
Port :
Ningbo/shanghai
Description

Production Description

YS-350A/450A Automatic Die Cutting Label Machine

Additional functions: 1. hot stamping 2.hole punching 3.lamination

Standard functions: unwinding-die cutting-waste discharging-cutting into pieces-rewinding

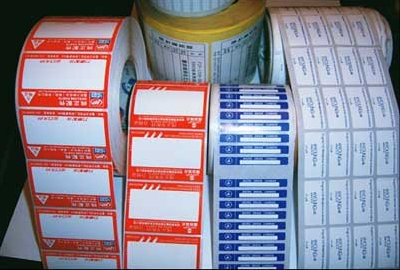

The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.
This machine is widely used in electronic line, adhesive product line and so on.

Technical parameters:

model

YS-350A

YS-450A

Max. Feeding width

320mm

420mm

Cutting area

300*350mm

400*450mm

Cutting speed

30-220 press/min

30-200 press/min

Position accuracy

±0.10mm

±0.10mm

Power of main motor

2.2kw

2.2kw

Size(L*W*H)

2750*1250*1400

3000*1500*1450mm

Unwinding/rewinding diameter

550mm

550mm

Voltage

220/380v

220/380v

Total power

4kw

4.5kw

weight

1700kg

2000kg


Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine

Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine Automatic Adhesive Tape Cutting Machine Tape Custom Die Cut Machine

Features:

This machine is insistent of platen pressing structure, servo system control the material feeding and forwarding, the photoelectric eyes track the material, unwinding-die cutting-waste discharging-sheet cutting-rewinding all is completed in one turn, all are control by PLC control system.
