Specifications
Place of Origin :
Zhejiang, China
Brand Name :
YONGSHI
Model Number :
YS-350Y
Certification :
CE Certificate
Packaging Details :
exported wooden case
Supply Ability :
30 Set/Sets per Month
Price :
$5,800.00 - $7,000.00/sets
Condition :
New
Type :
Die-cutting Machine
Computerized :
Yes
Voltage :
220V
Power :
3kw
Dimension(L*W*H) :
1700*1000*1600mm
Weight :
600KG
Warranty :
One Year
After-sales Service Provided :
Engineers available to service machinery overseas
Product name :
Automatic Blank Label Rotary Die Cutting Machine With Slitter
Function :
blank lable die cutting and slitting
Model :
YS-350Y
Speed :
120m/min
Color :
White
Port :
Ningbo/Shanghai
Description

YS-350Y Automatic Blank Label Rotary Die Cutting Machine With Slitter

Functional characteristics

YS-350Y die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, laminating(option), slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure,fast speed,high efficiency,easy operation,accurate slitting and stably running and so on features.

Technical parameters:

model

YS-350Y

Slitting speed

120m/min

Max. Roll Width

350mm

Max. Unwinding diameter

550mm

Max. rewinding diameter

550mm

Accuracy rate

±0.10mm

weight

600kg

Dimension

1100*900*1300mm

Power Consumption

3kw

Paper Label Rotary Die Cutting Machine Die Cutter Slitter 3kw 220V

Rotary Die Cutter

Paper Label Rotary Die Cutting Machine Die Cutter Slitter 3kw 220V

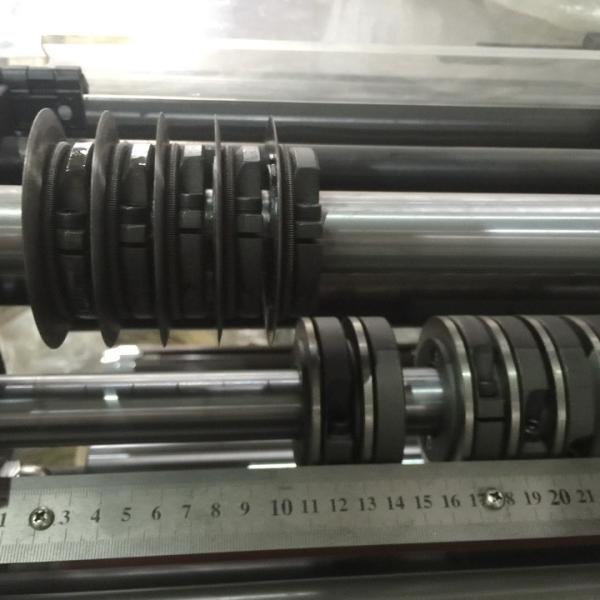

Online with Slitter

Paper Label Rotary Die Cutting Machine Die Cutter Slitter 3kw 220V
