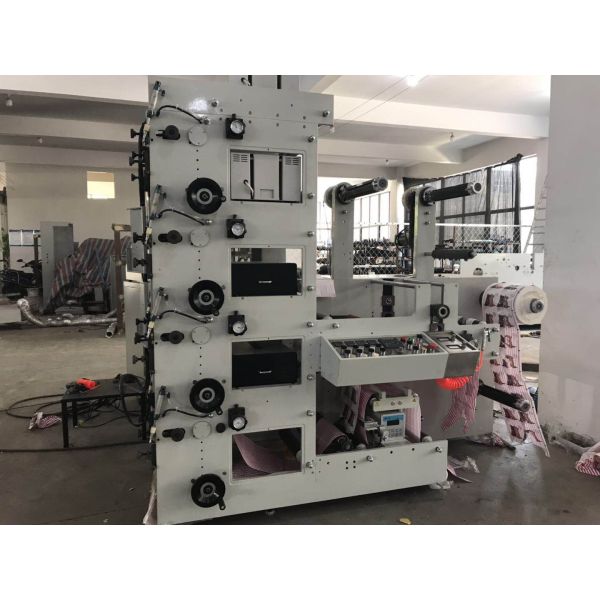

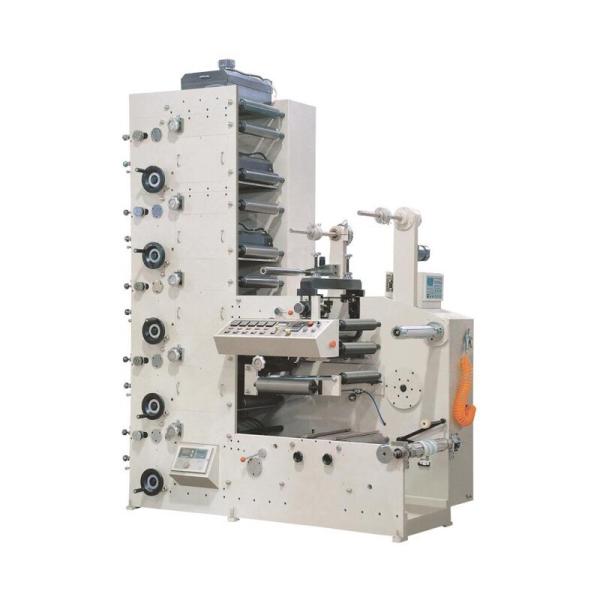

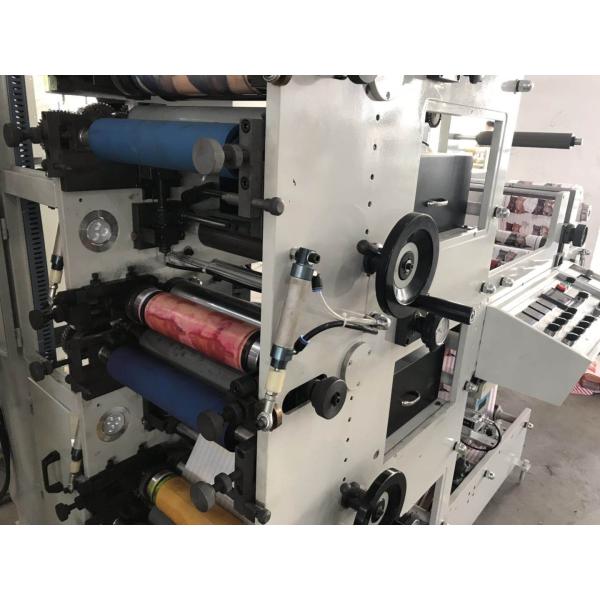

High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM
High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM
High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM
High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM
Specifications
Brand Name :
SUNRISE
Model Number :
SR-320
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
$13,000.00 - $31,000.00/sets
Type :
Flexographic Printer
Applicable Industries :
Building Material Shops, Food & Beverage Factory, Printing Shops, Food & Beverage Shops, Advertising Company
Condition :
New
Plate Type :
Letterpress
Usage :
Paper Printer, Label Printer, Bill Printer, Cloths Printer
Automatic Grade :
Automatic
Color & Page :
Multicolor
Voltage :
380V
Dimensions(L*W*H) :
2000*1000*2200MM
Weight :
2000
Warranty :
1 Year
After-sales Service Provided :
Online support, Free spare parts, Field installation, commissioning and training, Video technical support
Product name :
1-8 Colors Flexographic Printing Machine
Machine Type :
Flexo Letterpress Printing Machine
Application :
Label Printing
Printing Width :
320mm
Printing color :
1-8 Colors
Printing speed :
60m/min
Description

High Speed Flexographic Printing Machine 2 color Flexo Printing Machine 380V

Product features :

1,Ceramic anilox cylinder are adopted for ink transferring.

2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo machine equipped with Mitsubishi auto tension controller.

3, Each printing unit is adopted 360°printing plate-adjustment.

4, All printing units are equipped with a group of hot air dryer.(UV dryer is for option)

5, The machine has one die-cutting station, and it can make printing and die cutting finished in one process.

6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus preventing ink from drying.

7, The main motor is equipped with an imported variable frequency stepless speed govermor.This guarantees the stable performance of flexo press.

8, The machine can finish material-feeding, printing, vanishing, drying, laminating, die-cutting and rewinding at one stroke. It is an ideal machine for printing trade invoice and top-grade adhesive label.

Stand machine parts

3 x full sets of chrome plated precision printing cylinders

1 x printing plate mounter.

1 x Toolbox.

Printing Repeat Length:

Standard : Z56 - Z112

Option 1 : Z65 - Z145

Option 2 : Z75 - Z170

Suitable material

10 Micron Film To 400 Micron Board

Unsupported Film

Aluminium Foil

Tissue paper

Self adhesive paper

Vinyls/PVC

Carton weight board

Tehnical Parameter

Printing speed

10-60 m/min

Printing color

2 color

Max. web width

320 mm

Max. printing width

320 mm

Max. unwinding diameter

600 mm

Max. rewinding diameter

600 mm

Printing length

177.8-355.6 mm

Voltage

380V±10%

Precision

±0.15mm

Voltage

three-phase four-wire 380V,50HZ

Weight

1900kg

Overall Dimensions(LxWxH)

2000x 1100 x 2200mm

Option

• Free standing unwind with roll lifter, roll diameter max 900mm.

• Corona Treater.

• UV Dryer

• Turn Bar

• Additional printing units.

• Cold foiling.

• Video web inspection

High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM

High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM

High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM

High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM

Packing & Delivery

High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM

Company Profile

High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM

High Speed Flexographic Printing Machine 2 Color 380V 2000*1000*2200MM

Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be brave aggressive pragmatic efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
