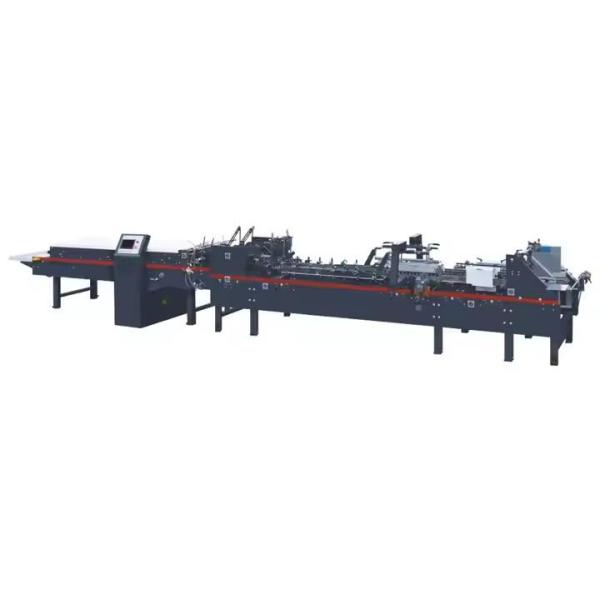

Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Specifications
Brand Name :
SUNRISE
Model Number :
SR-ZH-600X
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
$7,000.00/sets >=1 sets
Supply Ability :
30 Set/Sets per Month
Packaging Details :
exported wooden case
Processing Type :
Paper Folder Gluing Machine
Power :
5KW
Weight :
1400 kg
Video outgoing-inspection :
Provided
Model :
SR-ZH-600X
Speed :
0-300m/min
Dimensions :
7600*1000*1300
Feeding Method :
Automatic continuous feeding
Applicable Adhesive :
Cold glue
Box Forming :
Single Side Gluing
Description

Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box

Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box

Product Introduction:

1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.

Specification
Line Speed 0-300 m/min, continuously adjustable
Applicable Paper Types
210 - 600 gsm Paperboard
Compatible with E/F Corrugated Board
Box Forming

Single Side Gluing
Feeding Method Automatic Feeding
Applicable Adhesive Cold glue
Power Requirements 5KW AC 3PH 380V
Weight

1400KG
Dimensions: 7600*1000*1300

Model Box type A B C(min) D(min)
ZH-600X Straight-line box 110-600 60-500 50 10
ZH-700X Straight-line box 110-700 60-500 50 10
ZH-800X Straight-line box 130-180 60-700 60 10
ZH-900X Straight-line box 130-900 60-700 60 10

Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box

Aligner Section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box

Trombone Section

Up and down belt can be adjusted separately.Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.Upper section moves back and forward, allowing for different box length.
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Packing & Delivery
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
exported wooden case
Company Profile
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine 600X For Cardboard And Carton Paper Box
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be brave aggressive pragmatic efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
