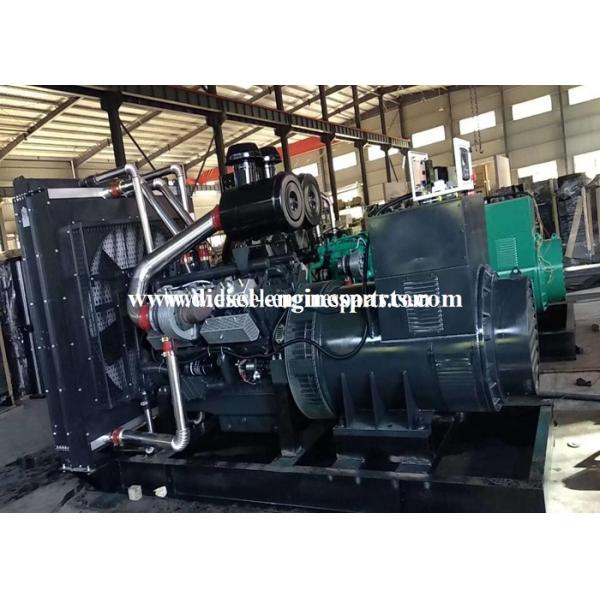

400kva Diesel Generator Set Weather Proof VOLV Generator Set
400kva Diesel Generator Set Weather Proof VOLV Generator Set
400kva Diesel Generator Set Weather Proof VOLV Generator Set
400kva Diesel Generator Set Weather Proof VOLV Generator Set
400kva Diesel Generator Set Weather Proof VOLV Generator Set
400kva Diesel Generator Set Weather Proof VOLV Generator Set
400kva Diesel Generator Set Weather Proof VOLV Generator Set
400kva Diesel Generator Set Weather Proof VOLV Generator Set
Specifications
Brand Name :
JINGTE
Model Number :
FDV-320GF
CertifiCaterion :
ISO/TS16949
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 48,600 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 piece per month
Delivery Time :
25day
Packaging Details :
neutral packing with wooden box, or as requested
Power :
320kw/ 400KVA
Type :
Mainly power
Phase :
3phase, 50Hz/60hz
Noise :
lower
Voltage :
220v-600v
AppliCaterion :
industral
Description

VOLV 400kva Generating Set Weather Proof Diesel Generator Set


1. Professional Diesel generator factory

Genset Model
FDV-320GF
Prime Power/Standby power
5KW to 2000KW
Frequency/Speed
50hz/1500 rpm
60hz/1800rpm
Voltage
220v-600v
110v-480v
Phase
Three phase
Single phase
Fuel type
Diesel
Gas

2. Diesel Generator Set Advantage
*50Hz@1500rpm or 60Hz@1800rpm all are available
*AVR delivers non fluctuating power
*Panel type digital control panel
*12 Volt / 24 Volt electric starter ensures easy starting
*Low oil pressure shut down system
*Low fuel cut out protection
*Low water cut out engine protection
*Enclosed structure ensures quieter operation
*Alternator (Dynamo) excitation mode brushless self excitation
*Three-phase output meets differing requirements
*Four Cylinder, four stroke, water cooled diesel engine
*8 hours running @ full load on a single tank of fuel
*Dual access doors for easy maintenance
*Optional automatic or manual transfer switches available
*ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
*Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
*Noise Level (65-70dBA @ 7m)
All ratings are at sea level!!!
3. After-sales Service
*1 year or 1500 running hours subject to the earlier one.
4. Terms of Payment
T/T ,Western Union,Cash

5. Main data

400 KVA DIESEL GENERATOR
Generator model: RMV-400 Steady state voltage regulation(%): ≤±0.5
Output powder:400kva Voltage fluctuation rate(%):≤0.5
Powder factor: COSΦ=0.8 in three phase Transient voltage regulation(%):-15~+20
Output voltage: 110/220v/230v/400v/415v Voltage steady state time(s):≤0.5
Output current:665Amp Steady state frequency adjustment rate(%):0~5 adjustable
Rated frequency:60Hz/50Hz Frequency fluctuation rate(%):≤0.5
Rated speed: 1800rpm/1500rpm Transient frequency modulation rate(%):≤±10
Fuel brand: ( standard) 0# light diesel oil( room temperature) Frequency recovery time(s): :≤5
Fuel consumption:199g/kw.h
Gross size 3520*1160*1960mm
Gross weight 3110kg
Diesel Engine Technical Parameters
Brand/origin: With VOLV Engine Cooling mode: closed cooling water circulation
Engine type: TTAD1641GE Oil supply: direct injection
Rated power:400kw/500kva Speed adjustment: Electronic
Standby power:410kw/512Kva
Qty of cylinders/cylinder structure: 6 cylinder on line Air inlet: turbo Charged
Bore by stroke: 144*165mm Overload capacity: 110%
Engine oil capacity: 35L Discharge :16.12L
Compression ratio: 18:1 Rated speed: 1800rpm/1500rpm
Startup mode: DC 24V electric start
Brushless synchronous Alternator
Brand: RAYMING Insulation class: H
Model:RMV354D Connection mode: three phase four wire, Y type
Rated powder:400kw/500kva Adjust way: AVR( automatic voltage regulator)
Output frequency: 60Hz/50Hz Output factor: COS Φ=0.8
Rated speed: 1800rpm/1500rpm
Battery 2*105A
Control panel
Model Smartgen/Deepsea/ComAp
