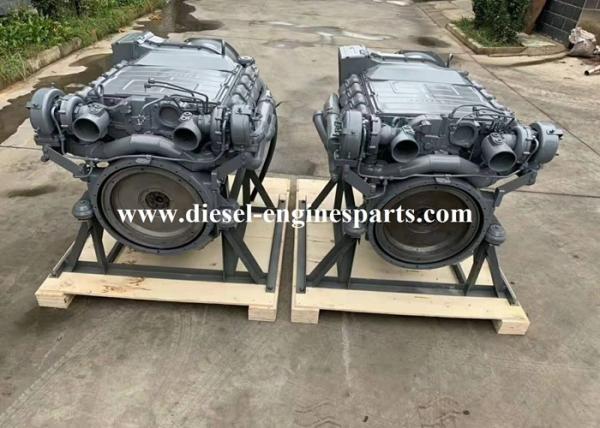

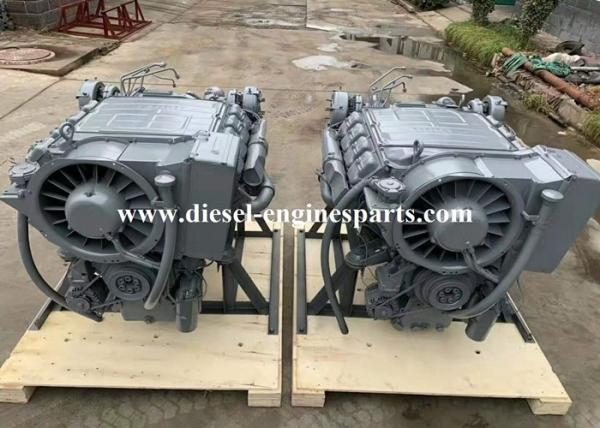

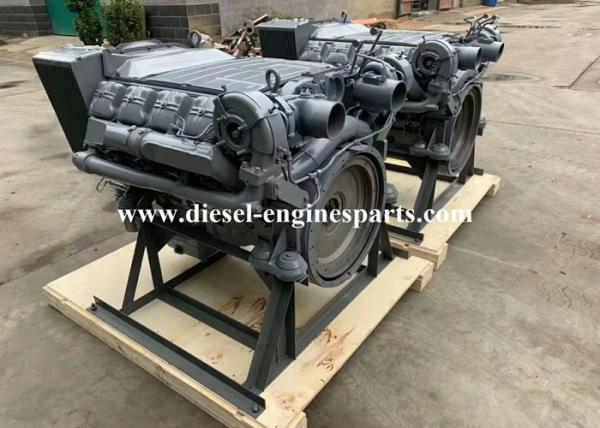

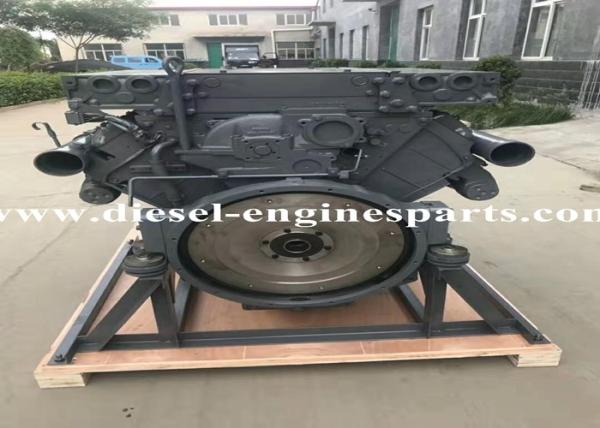

F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
Specifications
Brand Name :
JINGTE
Model Number :
F10L413FW
CertifiCaterion :
ISO/TS16949
Place of Origin :
CHINA
MOQ :
1 set
Price :
competitive price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 piece per month
Delivery Time :
7day
Packaging Details :
neutral packing with wooden box, or as requested
Stroke :
4
Type :
V style diesel engine
cooling :
Air cooled
Cylinder :
10
Process :
setting
Usage :
power supply
Payment :
TT
Description

Deutz F8L413FW Whole Engine Wooden Box F10L413FW Diesel Engine Assembly

1. Engine assembly: F10L413FW, F10L413F. F8L413F

2. Material of F10L413 Diesel engine assembly: Iron

3. Adjustment: Setting

4. Package&shipping:

1), First, we will put dryer into engine package.

2), Second, we will paint the rust-preventative oil into engine body.
3), Third, covered with strong plastic bag.
4), Then packed with plywooden CAS free of fumigation.

5. Applicable Area: Engineering machine etc.

6. Features of F10L413 Diesel engine assembly:

Model
Bore/Stroke
Rotating Speed
Dimension
Weight
F10L 413F
125/130
1500~2500
150*122*133
1080kg
F10L 413FW
125/130
1500~2500
150*122*133
1080kg
Model F10L413FW Engine
Cylinder 10
Bore(mm) 125
Stoke(mm) 130
Cooling Air-cooled, 4 stroke
总排量(L) 15.9
Oversize 1500×1050×1000 (mm)
Weight(kg) 990
Rated power & speed(kW/r/min) 170/1500-2500
Fuel consumption(g/kW.h) ≤230
Oil consumption(g/kW.h) 不大于 2.04 g/kW.h
Motor 14V/31A;28V/24A
Starter 12V/3.7KW;24V/4.8KW
Oil volume(L) 16

7. Deliver time: Normally in stock

8. Payment term: 30%TT in advance, 70% before the copy of B/L

F10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 CylinderF10L413FW Diesel Engine Assembly Iron Material Whole Engine 10 Cylinder
