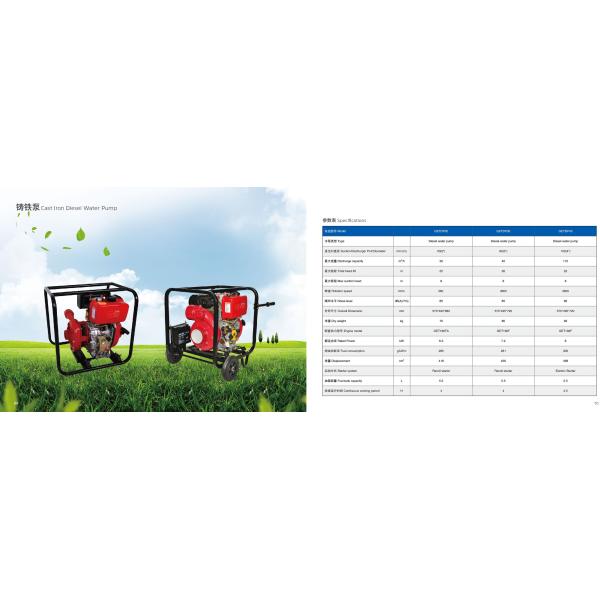

GETDP20 GETDP30 GETDP40 High Pressure Diesel Pump 6.3kw 7.2kw 8kw
Type: | Diesel Water Pump |
Discharge Capacity(m³/h): | 30 40 110 |
Max Suction Head: | 8m 8m 8m |
Noise Level Db(A)/7m): | 85 |
Dry Weight: | 70KG 80KG 92KG |
Rated Power: | 6.3kw 7.2kw 8kw |
Displacement (cm³): | 418 456 498 |
Fuel Tank Capacity: | 5.5L |
Suction/discharger Port Diameter Mm(inch): | 50(2'). 80(3'). 100(4') |
Total Head Lift: | 25m 26m 22m |
Rotation Speed (r/min): | 3600 |
Overall Dimension(mm): | 570X460X680. 570X495X720. 570X495X720 |
Engine Model: | GET186FA GET190F GET192F |
Fuel Consumption G/kw.h: | 285 281 300 |
Starter System: | Recoil Starter |
Continuous Working Period: | 4h 4h 3.5h |
High-pressure diesel pumps have various applications across different industries due to their ability to generate high discharge pressures. Here are some common applications where high-pressure diesel pumps are used:
Firefighting: High-pressure diesel pumps are often employed in firefighting systems. They can deliver water at high pressures to extinguish fires effectively, especially in areas with limited water supply or inadequate water pressure.
Agriculture and Irrigation: High-pressure diesel pumps are utilized in agricultural irrigation systems. They can pump water from a water source, such as a well or reservoir, and distribute it to fields or crops with sufficient pressure for efficient irrigation.
Construction and Dewatering: In construction sites, high-pressure diesel pumps are used for dewatering applications. They can remove excess water from excavations, foundations, or underground structures, allowing construction work to proceed efficiently.
Mining: High-pressure diesel pumps are vital in mining operations where water needs to be pumped out of mines or tunnels. These pumps can handle high head pressures and effectively move water from lower to higher elevations.
Industrial Processes: High-pressure diesel pumps find application in various industrial processes that require the transport of fluids at high pressures. Examples include pressure testing of pipelines, hydrostatic testing, and high-pressure cleaning of equipment or surfaces.
Oil and Gas Industry: High-pressure diesel pumps are utilized in the oil and gas industry for various purposes. They can be used for well stimulation, oilfield water transfer, hydraulic fracturing ("fracking"), and high-pressure injection into oil or gas wells.
Water Supply and Municipal Systems: High-pressure diesel pumps are employed in water supply systems where water needs to be pumped over long distances or to higher elevations. They can transport water from a water source to storage tanks or boost the water pressure in municipal distribution networks.
Emergency Response: High-pressure diesel pumps play a crucial role in emergency response situations, such as flood control or disaster management. They can quickly remove water from flooded areas or provide high-pressure water supply for emergency services.
These are just a few examples of the many applications where high-pressure diesel pumps are used. The specific requirements and capabilities of the pump will vary based on the application, and it's important to select a pump that matches the desired pressure range, flow rate, and other specifications for the intended use.
