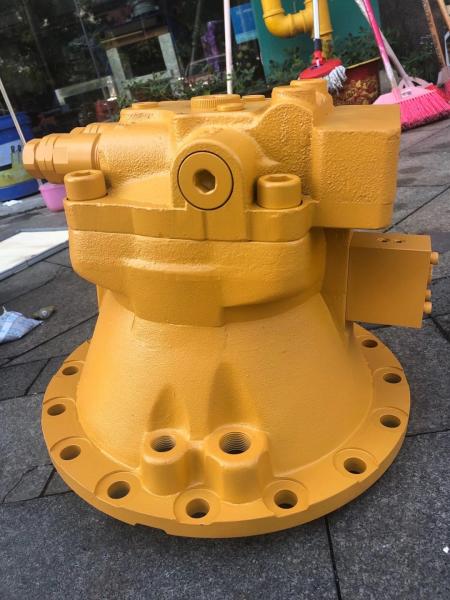

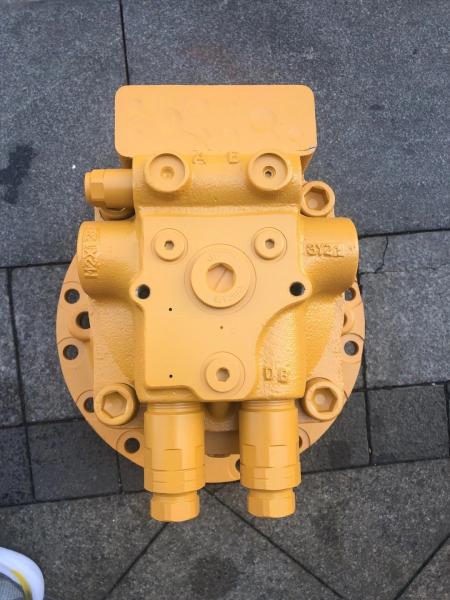

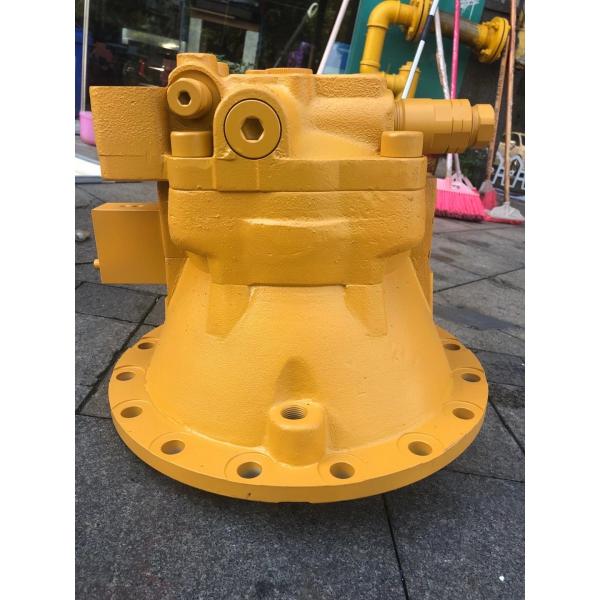

Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
Specifications
Brand Name :
Caterpillar
Model Number :
320B 320B FM LL
Certification :
68555435543
Place of Origin :
China
MOQ :
1
Price :
Price negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10
Delivery Time :
3-5
Packaging Details :
box
model OEM :
176-5104 Cat 320BL 116-3550
product name :
Swing Pump Swing Motor
sort :
Hydraulic Pump Parts
cross code :
CA1765104 176-5104 1765104
type :
1765104 MOTOR GP-PSTN 10R3308
other name :
Mechanical Parts
application :
Excavator Parts
Weight :
47 kg
Description

Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104

Product Description

Alternative (cross code) number:
CA1765104
176-5104
1765104

1765104 MOTOR GP-PSTN 10R3308 R

EXCAVATOR 320B 320B FM LL Caterpillar

320B & 320B L TRACK-TYPE EXCAVATORS 5BR00001-UP (MACHINE) POWERED BY 3066 ENGINE

  • 116-3549: MOTOR & MTG GP-SWING » h78087e

320B N TRACK-TYPE EXCAVATOR 4NR00001-UP (MACHINE) POWERED BY 3066 ENGINE

  • 116-3549: MOTOR & MTG GP-SWING » h78087e

320B FOREST MACHINE 6LS00001-UP (MACHINE) POWERED BY 3066 ENGINE

  • 116-3549: MOTOR & MTG GP-SWING » h78087e
MOTOR GP-SWING

1765104 MOTOR GP-SWING
S/N 5BR 01966-UP, 5CR 04597-UP
PART OF 1163549-Page 336.01
1765107-Page 339.01, 1765105-Page 340.02, 1373637-Page 383

Information

Parts for your 320B EXCAVATOR:

CATERPILLAR SIS

Pos. Part No Qty Parts name Comments
1. Y [1] MOTOR GP
2. [2] SCREW
3. Y [2] VALVE GP
4. [2] SEAL-O-RING (ID=6.8mm)
5. [6] WASHER
6. [3] BOLT (L=80mm)
7. Y [1] VALVE GP
Y SEPARATE ILLUSTRATION

Pos. Part No Qty Parts name Comments
1. 126-2028 Y [1] MOTOR GP
2. 5B-9304 [2] SCREW
3. 7I-7968 Y [2] VALVE GP
4. 095-1573 [2] SEAL-O-RING (ID=5.80mm)
5. 9X-8256 [6] WASHER
6. 8T-6974 [3] BOLT (L=80mm)
7. 121-1565 Y [1]

VALVE GP

OEM

Pos. Part No Qty Parts name Comments
1. 126-2027 [1] BODY
2. 5I-8630 [3] PLATE-FRICTION
3. 5I-8629 [4] PLATE
4. 5I-8426 J [2] SEAL-O-RING
5. 5I-8417 J [1] SEAL-O-RING
6. 7Y-4274 [1] PLUG
7. 095-1579 J [1] SEAL-O-RING (ID=10.80mm)
8. 5I-8623 J [1] SEAL-O-RING
9. 126-2055 [24] SPRING
10. 5I-8632 [1] PISTON AS
11. 5I-8420 [12] PIN
12. 110-5525 [2] PLUG
13. 3J-1907 J [2] SEAL-O-RING (ID=11.89mm)
14. 5I-8625 [1] BEARING
15. 7Y-5267 [1] RING-RETAINING
16. 126-2026 [1] HEAD GP
17. 095-0882 [2] PIN
18. 5I-8628 [1] PLATE
19. 5I-8631 [1] BARREL
20. 5I-8621 [1] PISTON-BRAKE
21. 5I-8421 [2] SPACER
22. 5I-8633 [1] SPACER
23. 5I-8636 [1] PLATE-RETAINING
24. 5I-8637 [1] PLATE
25. 122-5318 [1] BEARING
26. 5I-8640 [1] SHAFT
27. 5I-8418 [1] PLATE
28. 085-5593 [1] RING-RETAINING
29. 122-5319 J [1] SEAL-OIL
30. 5I-8634 [1] BUSHING
31. 5I-8422 [1] SPRING

Caterpillar Excavator 320B Swing Pump M2x120 Swing Motor Cat320B 176-5104 Hydraulic
