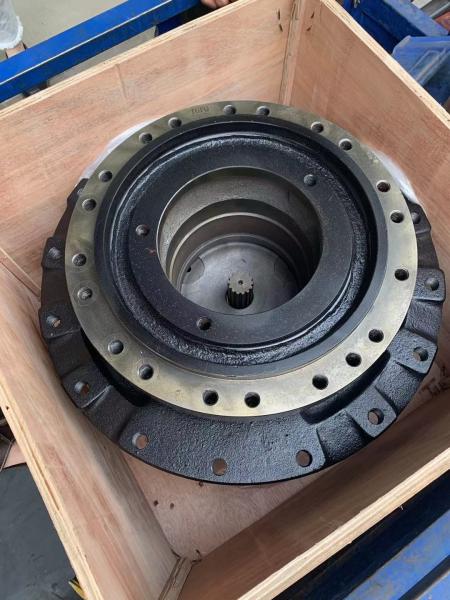

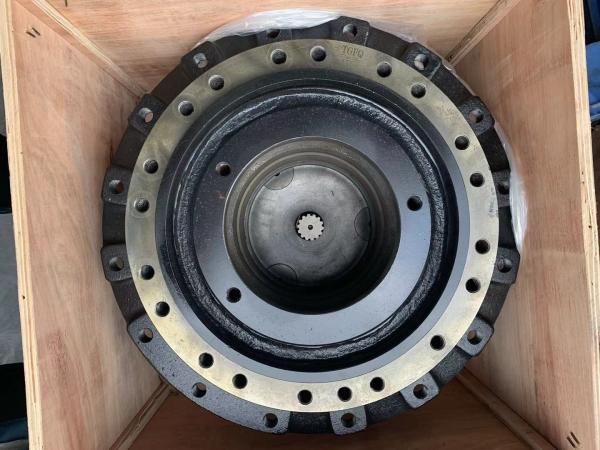

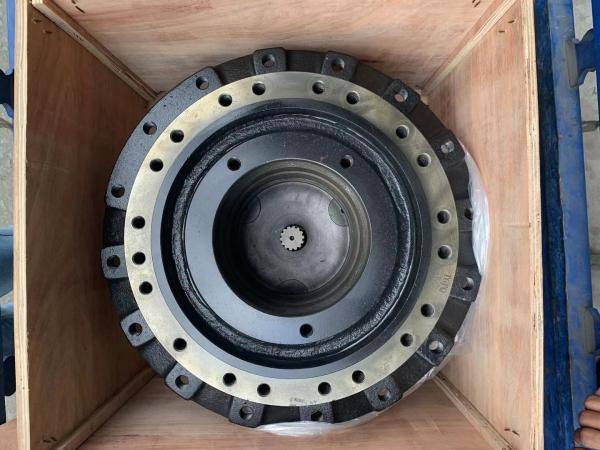

Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive
Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive
Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive
Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive
Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive
Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive
Specifications
Brand Name :
Caterpillar
Model Number :
E315B 320C 325D 329E
Certification :
68555435435
Place of Origin :
China
MOQ :
1
Price :
Price negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10
Delivery Time :
5-8
Packaging Details :
box
Engine model :
330D 336D 345B 349D
Cylinder :
6
Condition :
New
Weight :
XXKG
Description

Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive

Product Description

CA2966218
296-6218
2966218

EXCAVATOR 328D LCR 330D 330D L 330D LN 330D MH 336D 336D L 336D LN
MOBILE HYD POWER UNIT 330D 336D L Caterpillar

330D Custom Waste Handler JJM00001-UP (MACHINE) POWERED BY C9 Engine

  • 296-6217: DRIVE GP-FINAL » (WITHOUT MOTOR) SEBC06700248

DRIVE GP-FINAL

296-6218 DRIVE GP-FINAL -WITHOUT MOTOR
S/N JJM1-223
PART OF 296-6217 DRIVE GP-FI

Information OEM

Pos. Part No Qty Parts name Comments
1. 3E-2338 [2] PLUG-PIPE
2. 7Y-0639 [1] GEAR-SUN (21-TEETH)
3. 7Y-0642 [1] GEAR-RING (63-TEETH)
4. 7Y-0643 [1] CARRIER
5. 7Y-0645 [1] CARRIER
6. 7Y-0659 [3] GEAR-PLANETARY (22-TEETH)
7. 7Y-0661 [3] SHAFT-PLANETARY
8. 7Y-0662 [4] SHAFT-PLANETARY
9. 7Y-0663 [4] GEAR-PLANETARY (20-TEETH)
10. 7Y-0667 [1] RING-RETAINING
11. 7Y-0673 [1] GEAR-RING (73-TEETH)
12. 7Y-0676 [3] GEAR-PLANETARY (24-TEETH)
13. 7Y-0731 [1] CARRIER AS
13A. 7Y-0656 [3] SHAFT-PLANETARY
14. 7Y-1056 BJ [1] SHIM (0.8-MM THK)
7Y-1057 BJ [1] SHIM (1-MM THK)
267-6809 BJ [1] SHIM (0.75-MM THK)
267-6810 BJ [1] SHIM (0.85-MM THK)
267-6811 BJ [1] SHIM (0.9-MM THK)
267-6812 BJ [1] SHIM (0.95-MM THK)
267-6813 BJ [1] SHIM (1.2-MM THK)
267-6814 BJ [1] SHIM (1.4-MM THK)
267-6815 BJ [1] SHIM (1.8-MM THK)
267-6816 BJ [1] SHIM (2-MM THK)
267-6817 BJ [1] SHIM (2.3-MM THK)
16. 7Y-1094 M [14] WASHER (66X102X1-MM THK)
17. 7Y-5235 M [20] BOLT (M24X3X190-MM)
18. 094-0577 [1] PLATE (7-MM THK)
19. 094-0578 [1] PLATE (8-MM THK)
20. 094-0579 [1] PLATE (9-MM THK)
21. 094-0580 [1] PLATE (10-MM THK)
22. 110-7231 [1] GEAR-SUN (18-TEETH)
23. 114-1541 J [6] PIN-DOWEL
24. 191-2521 [1] GEAR-SUN (23-TEETH)
25. 191-2526 [1] COVER
26. 199-4582 [3] BEARING AS
27. 199-4583 [11] BEARING AS
28. 227-6190 J [1] HOUSING-MOTOR
29. 227-6191 J [1] HOUSING (SPROCKET)
30. 227-6192 J [1] GEAR-COUPLING (66-TEETH)
31. 255-2272 CJ [1] SEAL GP-DUO-CONE
205-9114 [2] RING-TORIC
41. 279-0344 J [2] BEARING AS-TAPERED ROLLER
42. 093-1731 [1] RING-RETAINING
43. 094-0584 [6] WASHER (40.3X72X1-MM THK)
44. 095-0891 [7] PIN-SPRING
45. 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
46. 191-2645 [1] COUPLING
47. 2P-3628 [1] SEAL-O-RING
48. 6V-8133 JM [10] BOLT (M24X3X80-MM)
49. 6V-8237 J [10] WASHER (26X44X4-MM THK)
50. 7M-8485 [2] SEAL-O-RING
51. 7Y-0595 [2] SPACER (58X79.6X6-MM THK)
52. 7Y-0644 [1] SPACER (163X190X8-MM THK)
53. 8T-4167 [20] WASHER-HARD (26X44X4-MM THK)
54. 8T-4240 [3] RING-RETAINING
55. 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
56. 1U-8846 B SEALANT-GASKET
AVAILABLE REPAIR KIT(S):
296-6219 J [1] KIT-HOUSING (FINAL DRIVE)
