5I7538 Piston Ring Set (Standard) Cylinder Liner 100-6694 Engine 5I-7538 Ring 1006694 Ring
5I7538 Piston Ring Set (Standard) Cylinder Liner 100-6694 Engine 5I-7538 Ring 1006694 Ring
Specifications
Brand Name :
Caterpillar
Model Number :
311, 311B, 312B, 320 L, 320B
Certification :
68555435543
Place of Origin :
China
MOQ :
1
Price :
Price negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10
Delivery Time :
3-5
Packaging Details :
box
model OEM :
311, 311B, 312B, 320 L, 320B
product name :
5I7538 RING SET Caterpillar parts
cross code :
CA5I7538 5I-7538 5I7538
other name :
Piston Kit
sort :
Cylinder Liner
application :
Engine Parts
applicable :
Excavator Parts
Weight :
XX kg.
Description


5I7538 RING SET Caterpillar parts 311, 311B, 312B, 320 L, 320B RING

Product Description

CA5I7538

5I-7538

5I7538

320B & 320B L Excavators 4XW00001-UP (MACHINE) POWERED BY 3066 Engine

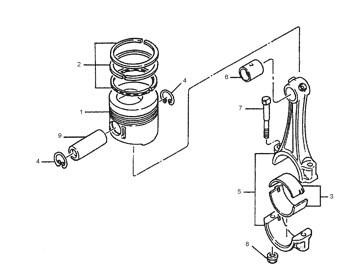

  • 5I-7760: PISTON & ROD GP » (STANDARD) SEBP27810023
PISTON & ROD GP

5I-7760 PISTON & ROD GP
S/N 7JK1-UP
PART OF 109-9514 ENGINE AR

Information

Pos. Part No Qty Parts name Comments
1. 297-7752 [6] PISTON (STANDARD)
297-7759 B [6] PISTON (0.50MM OS OD)
297-7758 B [6] PISTON (0.25MM OS OD)
2. 5I-7538 [6] SET-PISTON RING (STANDARD)
5I-7791 B [6] SET-PISTON RING (0.50MM OD)
5I-7790 B [6] SET-PISTON RING (0.25MM OD)
3. 5I-7637 [12] BEARING
5I-7796 B [12] BEARING (0.75-MM US)(US=0.75MM ID)
5I-7795 B [12] BEARING (0.5-MM US)(US=0.50MM ID)
5I-7794 B [12] BEARING (0.25-MM US)(US=0.25MM ID)
4. 5I-7667 [12] RING
5. 5I-7668 [6] ROD AS
(EACH INCLUDES)
6. 5I-7539 [1] BUSHING
7. 094-7154 [2] BOLT (M12X1.25X85-MM)
8. 094-7516 [2] NUT (M12X1.25-THD)
9. 094-7134 [6] PIN



OEM

1M6101 Pin Engine 1M-6101 Ring 2506557 Piston Kit(See Tak5250T) Cylinder Liner 250-6557
2S1602 Pin Engine 2S-1602 Ring 2P6270 Piston Body (See 9N5250T) Cylinder Liner 2P-6270
1687226 Pin Engine 168-7226 Ring 3780509 Piston 5.4 (See 9Y4004T) Cylinder Liner 378-509
1807350 Pin Engine 180-7350 Ring 7C4111 Ring Piston Intermed 3116 Cylinder Liner 7C-4111
1N3806 Ring Engine 1N-3806 Ring 1032859 Ring Set Piston (Os=.50Mm Cylinder Liner 103-2859
1P1124 Ring Engine 1P-1124 Ring 1R9317 Piston Assy 3066T/Std/S6Kt Cylinder Liner 1R-9317
2382735 Pin Engine 238-2735 Ring 1R9709 Piston Assy 3066T/Std/S6Kt Cylinder Liner 1R-9709
2W1708 Ring Engine 2W-1708 Ring 2M3469 Spring Helical Comp Piston Cylinder Liner 2M-3469
2W8416 Ring Engine 2W-8416 Ring 2W8045 Ring A Std. 9L9083 9L91309 Cylinder Liner 2W-8045
2W8417 Ring Engine 2W-8417 Ring 4I9469 Piston Shoe Retainer Assy. Cylinder Liner 4I-9469
1004297 Ring Engine 100-4297 Ring 5I4997 Piston Assy 3066T/Std/S6Kt Cylinder Liner 5I-4997
1006694 Ring Engine 100-6694 Ring 5I7538 Piston Ring Set (Standard) Cylinder Liner 5I-7538
1110281 Ring Engine 111-0281 Ring 7E5786 Ring Piston Oil Regulating Cylinder Liner 7E-5786
1343761 Ring Engine 134-3761 Ring Tak4004 Piston Kit (See Tak9372T) Cylinder Liner Tak-4004
1445287 Seal Engine 144-5287 Ring 5I7791 Piston Ring Set (0.50Mm Us) Cylinder Liner 5I-7791
1445902 Ring Engine 144-5902 Ring 3S4029 Piston Ring Replacement Grp. Cylinder Liner 3S-4029
1613425 Ring Engine 161-3425 Ring 7N9806 Pin Connecting Rod To Piston Cylinder Liner 7N-9806
1899771 Ring Engine 189-9771 Ring 7N9807 Pin Connecting Rod To Piston Cylinder Liner 7N-9807
2623066 Ring Engine 262-3066 Ring 7N9810 Pin Connecting Rod To Piston Cylinder Liner 7N-9810
7E539 Piston Engine 7E-539 Ring 8C5219 Seal Plain Encased Piston Rod Cylinder Liner 8C-5219
1077545 Crown Engine 107-7545 Ring 2J3950 Nut Self Locking He Piston Rod Cylinder Liner 2J-3950
1077791 Skirt Engine 107-7791 Ring 9N3743 Piston 2 Ring Std. 16.5:1 Cr Cylinder Liner 9N-3743
1252782 Skirt Engine 125-2782 Ring 1P0734 Ring Group Piston Parts Service Cylinder Liner 1P-0734
1300241 Skirt Engine 130-0241 Ring 2168323 Piston As Does Not Include Rin Cylinder Liner 216-8323
1334983 Crown Engine 133-4983 Ring 1M6107 Bearing Connecting Rod To Piston Cylinder Liner 1M-6107
1504621 Crown Engine 150-4621 Ring 7E4729 Rs Ring Group Piston Std 3 Rings Cylinder Liner 7E-4729
1979345 Crown Engine 197-9345 Ring 1P0009 Rod Assembly Piston To Crankshaft Cylinder Liner 1P-0009
1G5974 Piston Engine 1G-5974 Ring 1S9875 Kit (Piston Ring Includes 8 Ring) Cylinder Liner 1S-9875
1G8451 Piston Engine 1G-8451 Ring 5M9623 Washer Blank Piston .036 In.Thick Cylinder Liner 5M-9623
1N3967 Ring G Engine 1N-3967 Ring 7N3229 Rod Assembly Piston To Crankshaft Cylinder Liner 7N-3229
1S2268 Piston Engine 1S-2268 Ring 9H5536 Spring Helical Comp Clutch Piston Cylinder Liner 9H-5536
1U3840 Pump G Engine 1U-3840 Ring 9H5537 Spring Helical Comp Clutch Piston Cylinder Liner 9H-5537
1W1669 Piston Engine 1W-1669 Ring 4L9758 Ring Piston In Mod. Valve Assembly Cylinder Liner 4L-9758
1W5105 Ring G Engine 1W-5105 Ring 5M9622 Spacer Plate Piston .062 In. Thick Cylinder Liner 5M-9622
1W6055 Ring G Engine 1W-6055 Ring 9Y9889 Body As Piston Cylinder Liner 9Y-9889
1W6757 Piston Engine 1W-6757 Ring 1010016 Body As Piston Cylinder Liner 101-0016
1W8922 Ring G Engine 1W-8922 Ring 1077563 Body As Piston Cylinder Liner 107-7563

5I7538 Piston Ring Set (Standard) Cylinder Liner 100-6694 Engine 5I-7538 Ring 1006694 Ring
