320-8R34 Ring 3208R34 Ring Set Piston Engine 8P-4735 Cylinder Liner 8P4735 Piston
320-8R34 Ring 3208R34 Ring Set Piston Engine 8P-4735 Cylinder Liner 8P4735 Piston
Specifications
Brand Name :
Caterpillar
Model Number :
594H, D9H PISTON
Certification :
68555435543
Place of Origin :
China
MOQ :
1
Price :
Price negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10
Delivery Time :
3-5
Packaging Details :
box
model OEM :
594H, D9H PISTON
product name :
8P4735 PISTON Caterpillar parts
cross code :
CA8P4735 8P-4735 8P4735
other name :
Piston Kit
sort :
Cylinder Liner
application :
Engine Parts
applicable :
Excavator Parts
Weight :
XX kg.
Description

8P4735 PISTON Caterpillar parts 594H, D9H PISTON

Product Description

CA8P4735
8P-4735
8P4735

PIPELAYER 594H
TRACK-TYPE TRACTOR D9H Caterpillar

DUAL D9H TRACTOR 97V00001-UP (MACHINE)

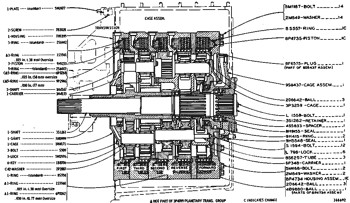

3P4099 PLANETARY TRANSMISSION GROUP--As Viewed from Right Hand Side of Machine--Part 1 of 2
Serial No. 97V193-Up and 98V193-Up
Part of 3P6863 Range Transmission Arrangement shown on Page 46

Information

Pos. Part No Qty Parts name Comments
5M-2477 [ 1] PLATE (number)
7B-3028 [ 2] SCREW
7M-1195 [ 1] HOUSING
2S-6442 [ 3] RING (standard)
1S-5561 H [ 3] RING
.015 in. (.38 mm) Oversize
9H-5233 [ 3] PISTON
2S-6443 [ 5] RING (standard)
6P-8268 C H [ 5] RING
.015 in. (38 mm) oversize
9P-2946 C H [ 5] RING
.030 in. (77 mm)
1M-4167 [ 3] SHAFT
1M-4153 [ 1] CARRIER
3S-1261 [ 1] SHAFT
5M-3999 [ 1] SHAFT
1M-4171 [ 1] CAGE
0S-0509 [ 3] BOLT
5M-2976 [ 3] LOCK
1B-8706 [ 6] KEY
2P-2887 C [ 42] WASHER
8S-0558 [ 1] RING (standard)
1S-5560 H [ 1] RING
.015 in. (.38 mm) Oversize
6P-8262 H [ 1] RING
.030 in. (0.77 mm) Oversize
5M-1167 [ 14] BOLT
2M-0849 [ 14] WASHER
8S-0557 C [ 1] RING
8P-4735 C [ 1] PISTON
8F-6575 [ 1] PLUG
(PART OF 9S8437 ASSEM.)
9S-8437 [ 1] CAGE ASSEM.
2D-6642 [ 3] BALL
3P-3259 [ 1] CAGE
0L-1558 [ 1] BOLT
3S-1262 [ 1] RETAINER
4S-5833 [ 1] SPACER
8H-9155 [ 1] SEAL
9H-0415 [ 2] RING
9H-5548 [ 1] SEAL
0S-1594 [ 12] BOLT
0L-0796 [ 6] LOCK
8S-6257 [ 3] TUBE
6P-0348 [ 1] CARRIER
5M-1168 [ 2] BOLT
2M-0849 [ 2] WASHER
8P-4734 C [ 1] HOUSING ASSEM
2D-6642 [ 3] BALL
4B-9880 [ 1] BALL

OME

3S0988 Piston Engine 3S-0988 Ring 6I1210 Crown As Piston Cylinder Liner 6I-1210 6I-1210 Ring 6I1210 Crown As Piston Engine 3S-0988 Cylinder Liner 3S0988 Piston
3V5476 Piston Engine 3V-5476 Ring 6I4248 Crown As Piston Cylinder Liner 6I-4248 6I4248 Crown As Piston Cylinder Liner 3V-5476 Engine 6I-4248 Ring 3V5476 Piston
3W0640 Piston Engine 3W-0640 Ring 6N2109 Kit Piston Ring Cylinder Liner 6N-2109 3W0640 Piston Engine 3W-0640 Ring 6N2109 Kit Piston Ring Cylinder Liner 6N-2109
4E2168 Piston Engine 4E-2168 Ring 7C0570 Kit Piston Ring Cylinder Liner 7C-0570 4E-2168 Engine 7C0570 Kit Piston Ring Cylinder Liner 4E2168 Piston Ring 7C-0570
4S5943 Piston Engine 4S-5943 Ring 7C2888 Crown As Piston Cylinder Liner 7C-2888 7C-2888 Ring 7C2888 Crown As Piston Engine 4S-5943 Cylinder Liner 4S5943 Piston

320-8R34 Ring 3208R34 Ring Set Piston Engine 8P-4735 Cylinder Liner 8P4735 Piston
