178-6546 Engine 9T6857 Pump Group Piston Cylinder Liner 1786546 Piston Ring 9T-6857
178-6546 Engine 9T6857 Pump Group Piston Cylinder Liner 1786546 Piston Ring 9T-6857
178-6546 Engine 9T6857 Pump Group Piston Cylinder Liner 1786546 Piston Ring 9T-6857
178-6546 Engine 9T6857 Pump Group Piston Cylinder Liner 1786546 Piston Ring 9T-6857
Specifications
Brand Name :
Caterpillar
Model Number :
416, 428 PUMP
Certification :
68555435543
Place of Origin :
China
MOQ :
1
Price :
Price negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10
Delivery Time :
3-5
Packaging Details :
box
model OEM :
416, 428 PUMP
product name :
9T6857 PUMP GP-PISTON Caterpillar parts
cross code :
CA9T6857 9T-6857 9T6857
other name :
Piston Kit
sort :
Cylinder Liner
application :
Engine Parts
applicable :
Excavator Parts
Weight :
XX kg.
Description

9T6857 PUMP GP-PISTON Caterpillar parts 416, 428 PUMP

Product Description

CA9T6857
9T-6857
9T6857

BACKHOE LOADER 416 428 Caterpillar

Caterpillar SIS

  • 428 BACKHOE LOADER 6TC00001-02693 (MACHINE) » 9T-6857 PUMP GP-PISTON
  • 416 BACKHOE LOADER 5PC00001-06191 (MACHINE) POWERED BY T4.236 DIESEL ENGINE » 9T-6857 PUMP GP-PISTON
  • 416 BACKHOE LOADER 5PC06192-10761 (MACHINE) POWERED BY 4.236 DIESEL ENGINE » 9T-6857 PUMP GP-PISTON
  • 428 BACKHOE LOADER 6TC02694-06563 (MACHINE) POWERED BY T4.236 DIESEL ENGINE » 9T-6857 PUMP GP-PISTON
  • 416 SERIES II BACKHOE LOADER 5PC10762-UP (MACHINE) POWERED BY 4.236 DIESEL ENGINE » 9T-6857 PUMP GP-PISTON
  • 428 SERIES II BACKHOE LOADER 6TC06564-UP (MACHINE) POWERED BY 4.236 DIESEL ENGINE » 9T-6857 PUMP GP-PISTON

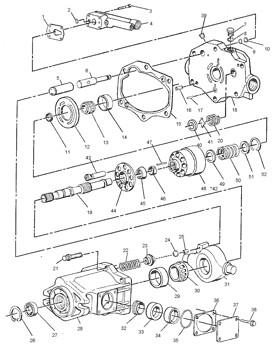

PUMP GP-PISTON

9T6857 PUMP GP-PISTON-SLIPPER*R
S/N 6TC1088-1091 & 1123-UP
9T6859-PAGE 171.03

Information

Pos. Part No Qty Parts name Comments
1. 9T-2002 [1] GASKET
2. 5F-9144 [1] SEAL-O-RING
3. 7L-0688 [4] BOLT-SOCKET HEAD
4. 9T-6859 Y [1] VALVE GP-PRESS & FLOW CMPNSTR
5. 9T-2172 [1] PISTON
6. 9T-2170 [1] ROD-PISTON
7. 9S-4190 [1] PLUG-0-RING
8. 2M-9780 [1] SEAL-O-RING
9. 8F-9206 [1] SEAL-O-RING
10. 9T-2003 [1] RING
11. 9T-2000 B [1] KIT-SPACER
12. 9T-2232 [1] PLATE-WAFER
13. 7T-9752 [1] CONE-ROLLER BEARING
14. 7T-9753 [1] CUP-ROLLER BEARING
15. 9T-1752 [1] GASKET
16. 8T-5089 [2] PIN-SPRING
17. 9T-2001 [1] PIN
18. 9T-2176 [1] HEAD-VALVE BLOCK
19. 9T-2016 [1] SHAFT
20. 9T-3867 [1] SPRING
21. 5P-0076 [6] BOLT-12 POINT HEAD
22. 9T-2168 [1] SPRING
23. 9T-2171 [1] SEAT
24. 9T-2173 [1] SEAT
25. 8J-8308 [1] PIN-ROLL
26. 002-3455 [1] RING-RETAINING
27. 3E-6748 [1] SEAL-LIP TYPE
28. 9T-2015 [1] HOUSING
29. 7T-9755 [1] CUP-ROLLER BEARING
30. 7T-9754 [1] CONE-ROLLER BEARING
31. 9T-2231 [1] SWASHPLATE
32. 7T-9831 [2] CONE-ROLLER BEARING
33. 3P-8680 [2] CUP-ROLLER BEARING
34. 9T-2017 [2] SPACER
35. 005-8593 [2] SEAL-O-RING
36. 9T-2011 B [1] KIT-SHIM
37. 9T-2014 [2] COVER
38. 9S-2011 [8] SCREW-MACHINE
39. 9F-2247 [1] PLUG
40. 9T-1636 [1] SEAT
41. 9T-1710 [1] POPPET
42. 9T-2031 [1] ROTATING GP
43. 9T-3868 [1] KIT-PISTON
44. 9T-3860 [1] PLATE
45. 9T-3859 [1] WASHER-SPHERICAL
46. 9T-3862 [1] RETAINER
47. 9T-3857 [3] PIN
48. 9T-3863 [1] BARREL
49. 9T-3861 [1] WASHER
50. 9T-3858 [1] SPRING
51. 9T-3864 [1] WASHER
52. 004-1683 [1] RING-SNAP

OME

8N1233 Ring Piston Engine 8N-1233 Ring 9W6098 Piston Clutch Cylinder Liner 9W-6098 9W-6098 Ring 9W6098 Piston Clutch Engine 8N-1233 Cylinder Liner 8N1233 Ring Piston
8N3182 Body Piston Engine 8N-3182 Ring 9W6099 Piston Clutch Cylinder Liner 9W-6099 9W6099 Piston Clutch Cylinder Liner 8N-3182 Engine 9W-6099 Ring 8N3182 Body Piston
8N7810 Ring Piston Engine 8N-7810 Ring 9W6099 Piston Clutch Cylinder Liner 9W-6099 8N7810 Ring Piston Engine 8N-7810 Ring 9W6099 Piston Clutch Cylinder Liner 9W-6099
9L6233 Ring Piston Engine 9L-6233 Ring 9W6186 Piston Clutch Cylinder Liner 9W-6186 9L-6233 Engine 9W6186 Piston Clutch Cylinder Liner 9L6233 Ring Piston Ring 9W-6186
9N0578 Ring Piston Engine 9N-0578 Ring 9W6186 Piston Clutch Cylinder Liner 9W-6186 9W-6186 Ring 9W6186 Piston Clutch Engine 9N-0578 Cylinder Liner 9N0578 Ring Piston

178-6546 Engine 9T6857 Pump Group Piston Cylinder Liner 1786546 Piston Ring 9T-6857
