Specifications
Brand Name :
Junvoch
Model Number :
JVH-100K
Certifiion :
ISO CE
Place of Origin :
CHN
MOQ :
1 Set
Price :
8000usd-10000usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 set per month
Packaging Details :
standard packing
Brand/Model :
Cummins 6BTAA5.9-G2
Power :
120KW
Frequency :
50 Hz (60Hz for optional)
Voltage :
380/220V
Optional Type :
Open / Rainproof / Silent / Trailer / Containerized
Size of Silent Type :
3000*1100*1700mm
Aspiration :
Turbocharged and Charge Air Cooled
Starting Method :
DC 24V electrical Start
Exciter type :
Single bearing,brushless,Self-excited
Voltage adjust range :
≤5%
Description

6BTAA5.9-G2 Diesel Generator Set With Cummins Engine 150kva Electric Power Plant 120kw Diesel Generator

Control system Introduction

Deepsea 6120 is an auto mains failure controller for single generator, it can monitor and protect the generator working all the time, it has a LCD display which clearly shows the status of the engine, this controller include seven inputs and six outputs. This controller can also be programmed u si ng the front panel or by usi ng DSE configuration Suite PC software.

Key Features:

• Auto start/stop, load transfer and alarming of generator

• Remote start on or off load

• With hierarchical loading function

• MuItiple start/stop cycles can be preset

• 3 phase generator and mains voltage monitoring.

• Generator/load power detection(kW, kVA, kVAr PF

• Overload protection (kW)

• Load current monitoring and protection

• Engine speed protection

• Engine pre-heat

• Engine start idle & stop idle

• Battery voltage monitoring

• Start under the low battery

• 4 active outputs

• 4 digital inputs and 3 analogue inputs.

• 6 Custom digital input

• 6 out puts (4 configurable on magnetic pick-up,6 configurable on Can bus version)

• DSE2130/DSE2157/DSE2548 expansion module can be connected

• Support 0-10V or 4-20mA oil pressure sensor

Diesel Generator Details
Power 120KW
Current 150
Frequency 50 Hz (60Hz for optional)
Voltage 380/220V
Optional Type Open / Rainproof / Silent / Trailer / Containerized
Size of Silent Type 3000*1100*1700mm
Diesel Engine Details
Brand/Model Cummins 6BTAA5.9-G2
Prime Power 120KW
Standby Power 133KW
Aspiration
Turbocharged and Charge Air Cooled
Bore*Stroke(mm) 102*120
Displacement(L) 5.9
Oil Capacity(L) 16
Starting Method DC 24V electrical Start
Fuel Consumption(g/kw.h) 208
Alternator Details
Brand Stamford,Marathon,Hengsheng
Output Power 120KW
Exciter type Single bearing,brushless,Self-excited
Power factor 0.8
Voltage adjust range ≤5%
Insulattion Grade H
Protection Grade IP23
Controller Details
Brand Deepsea/ComAp/Smartgen

Standard Optional
Diesel Engine Weatherproof/Sounproof canopy
Alternator ATS
Control Panel Water heater
Starting Batteries and battery connect wires Oil heater
Circuit Breaker Battery charger

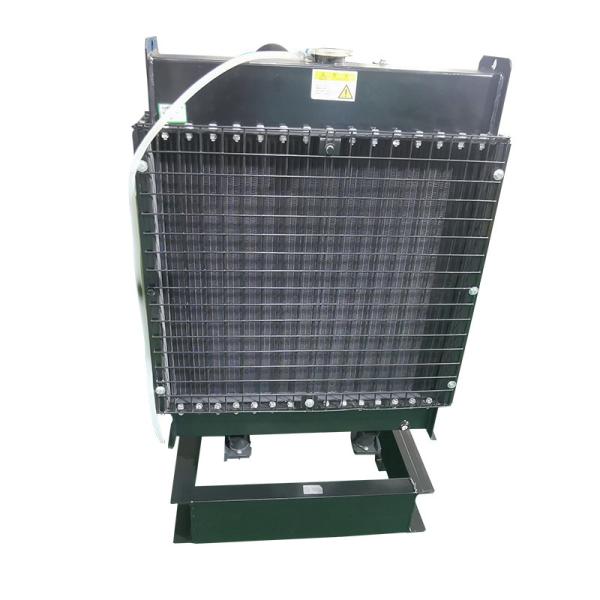

Water cooled Radiator Fuel tank
Steel base frame /
Silencer and flexible exhaust pipe /

6BTAA5.9G2 Diesel Generator Set ISO 150kva Turbocharged Charge Air Cooled6BTAA5.9G2 Diesel Generator Set ISO 150kva Turbocharged Charge Air Cooled6BTAA5.9G2 Diesel Generator Set ISO 150kva Turbocharged Charge Air Cooled

About us

Jvh is specialized in producing Generator since 2009.After many years' hard working, our company has accumulated a rich experience in the production of diesel generators and has earned great recognition and good reputation from worldwide customers and competitors.

As a professional manufacture if generators, we cooperate with international and domestic famous engines and alternators, such as Cummins, and power range from 3kw to 3000kw. There are many different types about gengerators for your choice, including open type, rainproof type, silent type, trailer type, containerized type, automation type, multiple parallel type, remote centralized monitoring type etc.
